Home >> Acura >> 2002 >> NSX V6-3.2L DOHC >> Repair and Diagnosis >> Diagrams >> Connector Views >> Steering Control Module

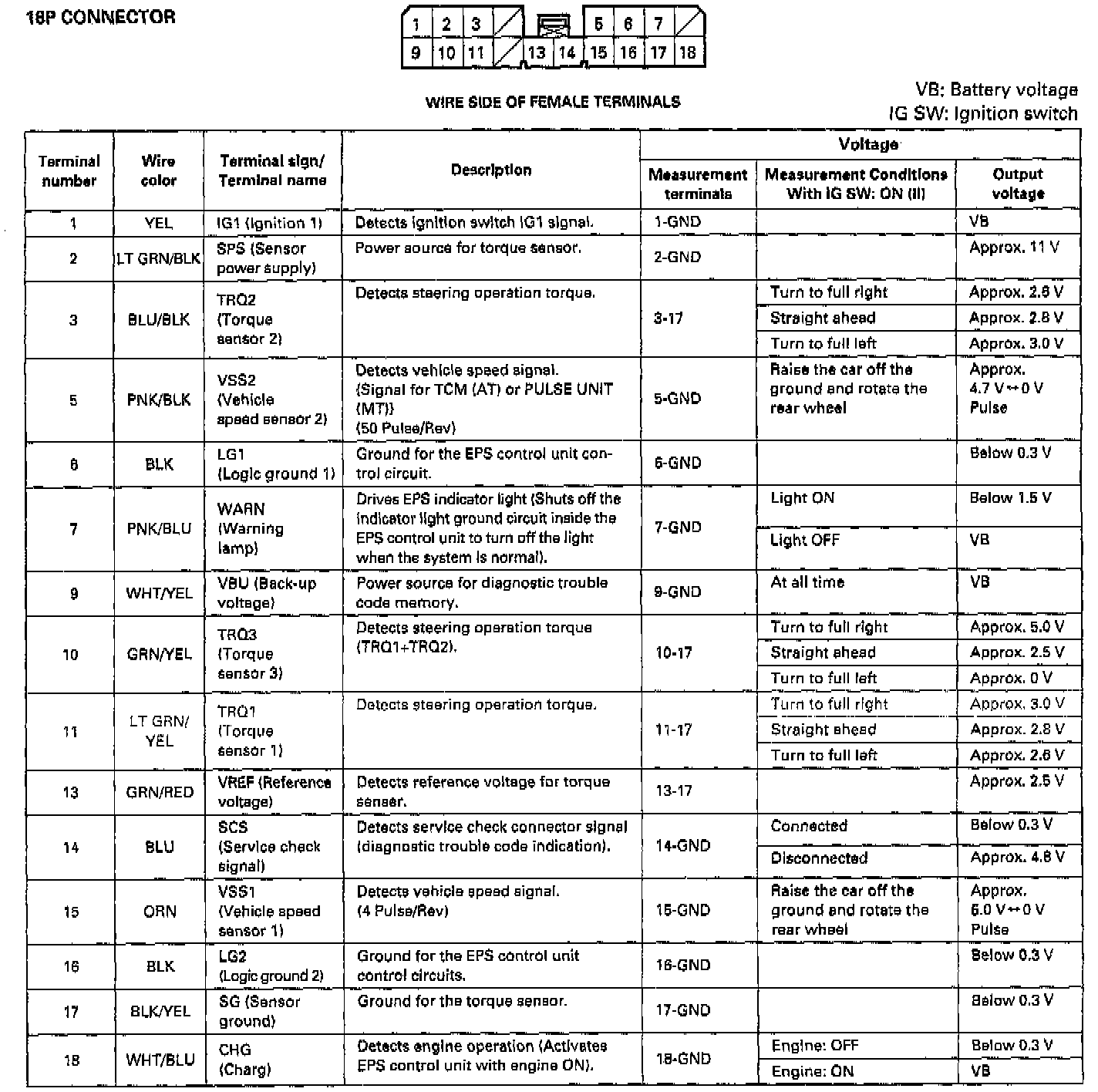

Steering Control Module

Part 1 Of 5:



Part 2 Of 5:



Part 3 Of 5:



Part 4 Of 5:



Part 5 Of 5:
