Home >> Buick >> 1990 >> LeSabre V6-231 3.8L VIN C SFI >> Repair and Diagnosis >> Diagrams >> Components >> Modules >> Multi-Function Chime Module

Multi-Function Chime Module

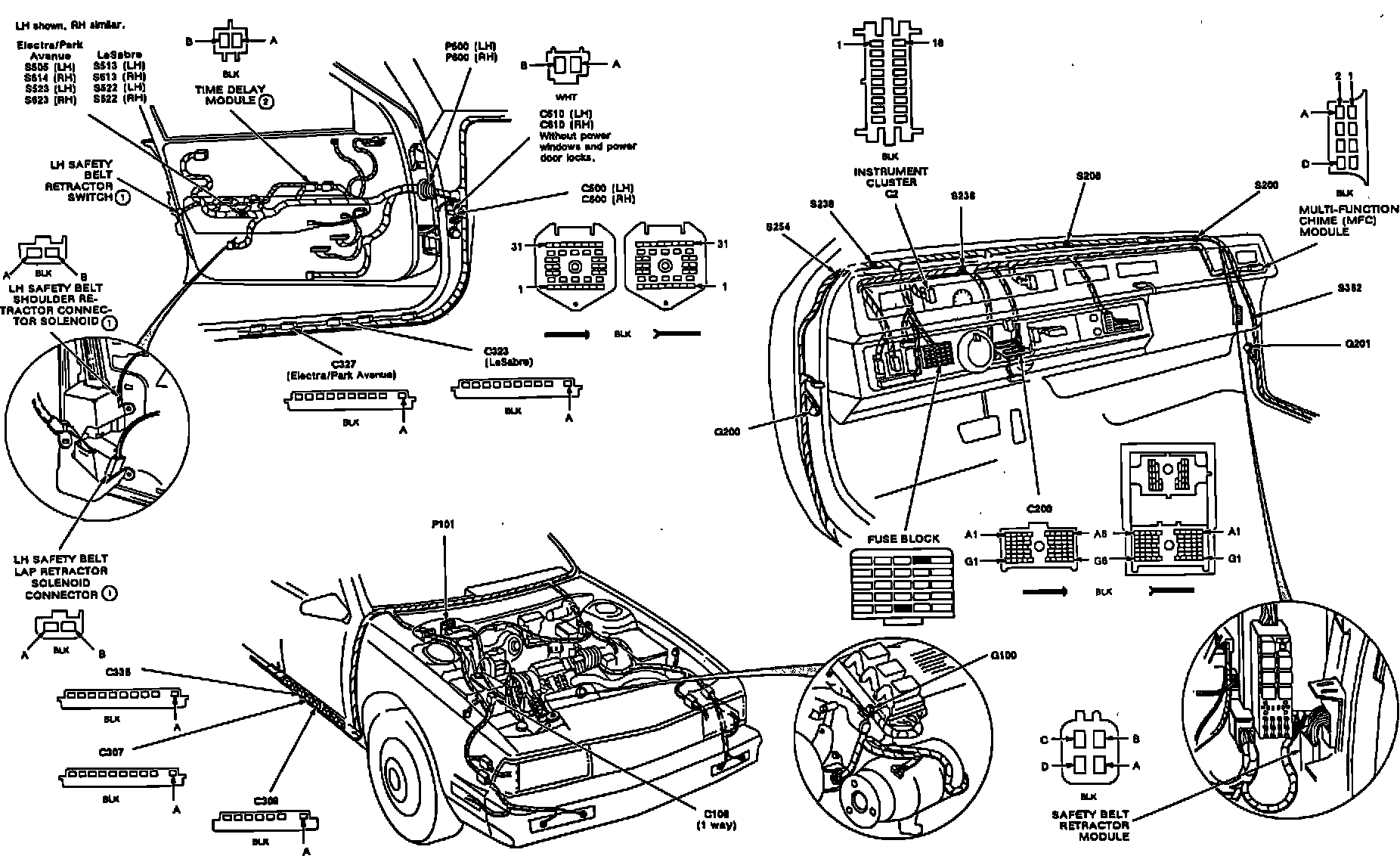

Automatic Seat Belts Components Location:

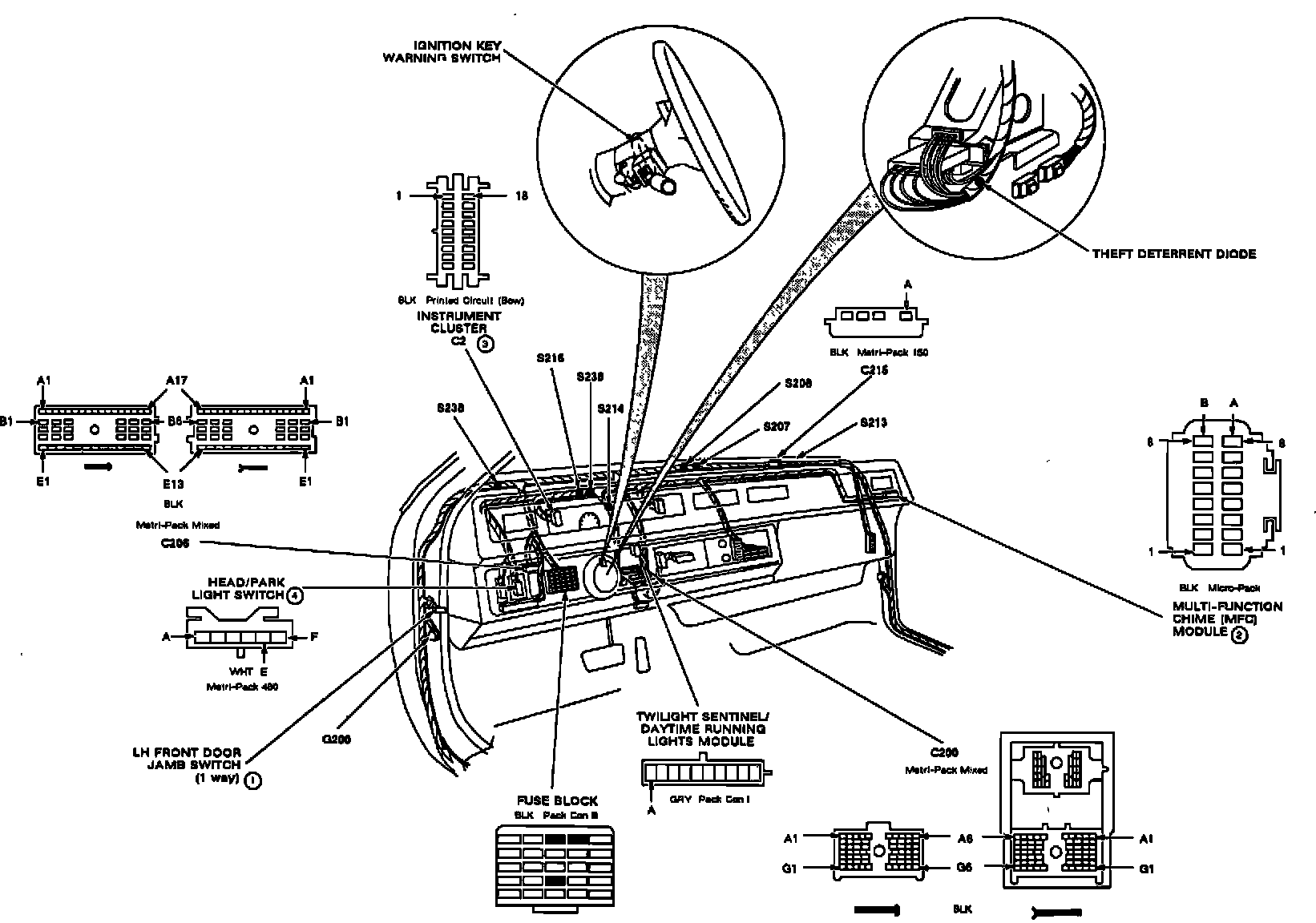

Alarms & Warnings Chime Components Location (Engine Compartment).:





Behind RH I/P Trim, Above Glove Compartment
