Body Control Module Inputs and Outputs

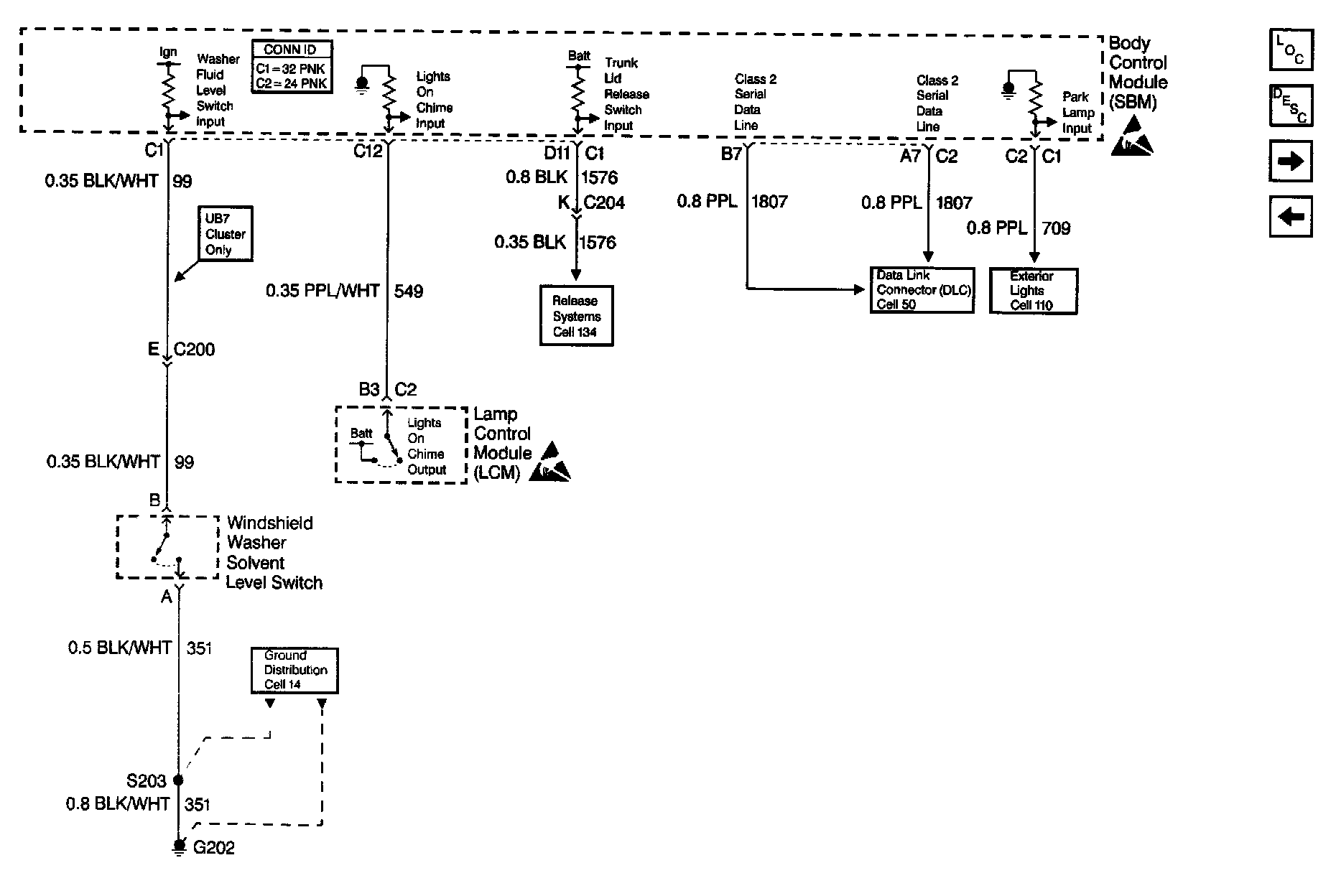

Body Control Module Schematics: Body Control Module Inputs And Outputs (Part 1 Of 3):

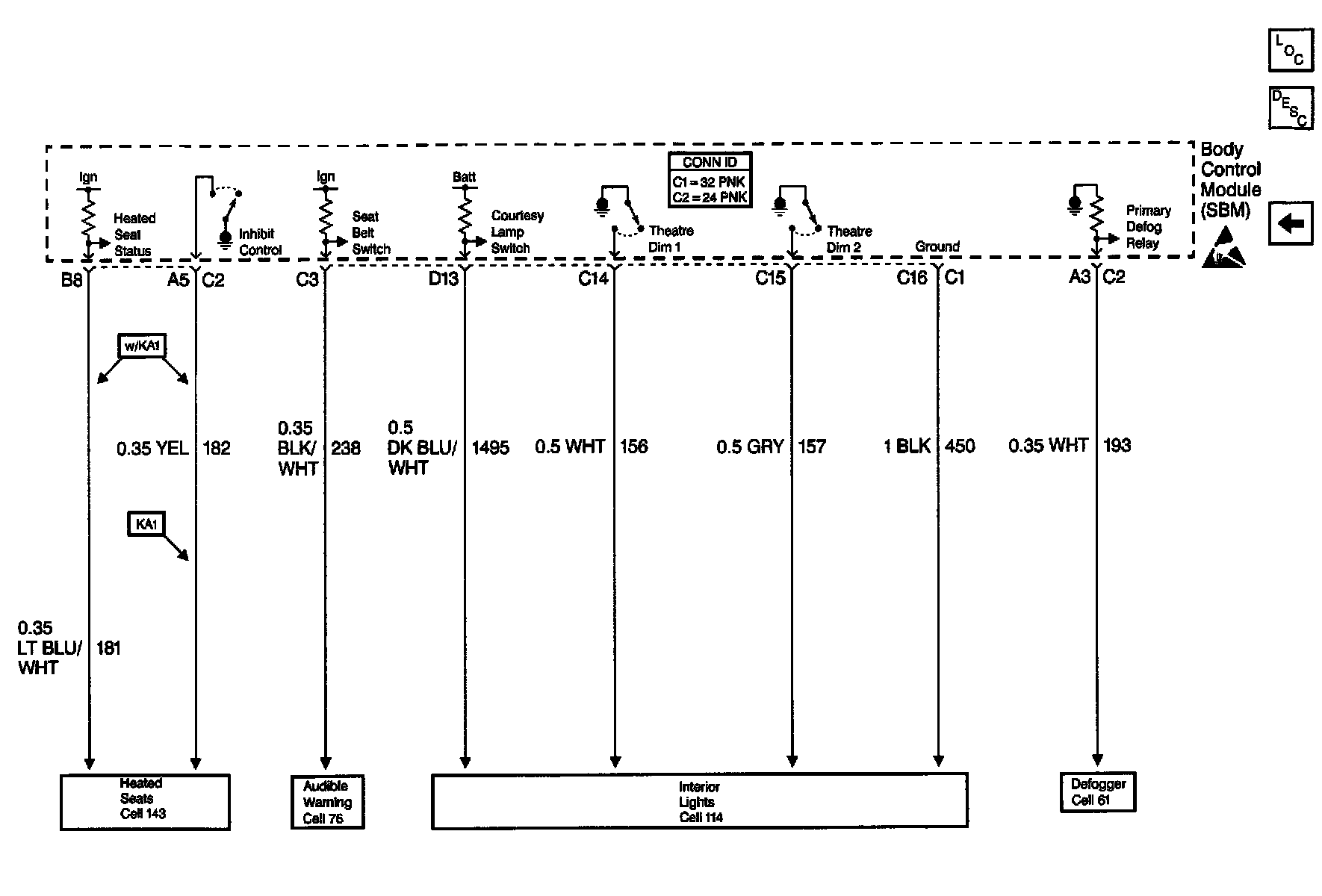

Body Control Module Schematics: Body Control Module Inputs And Outputs (Part 2 Of 3):

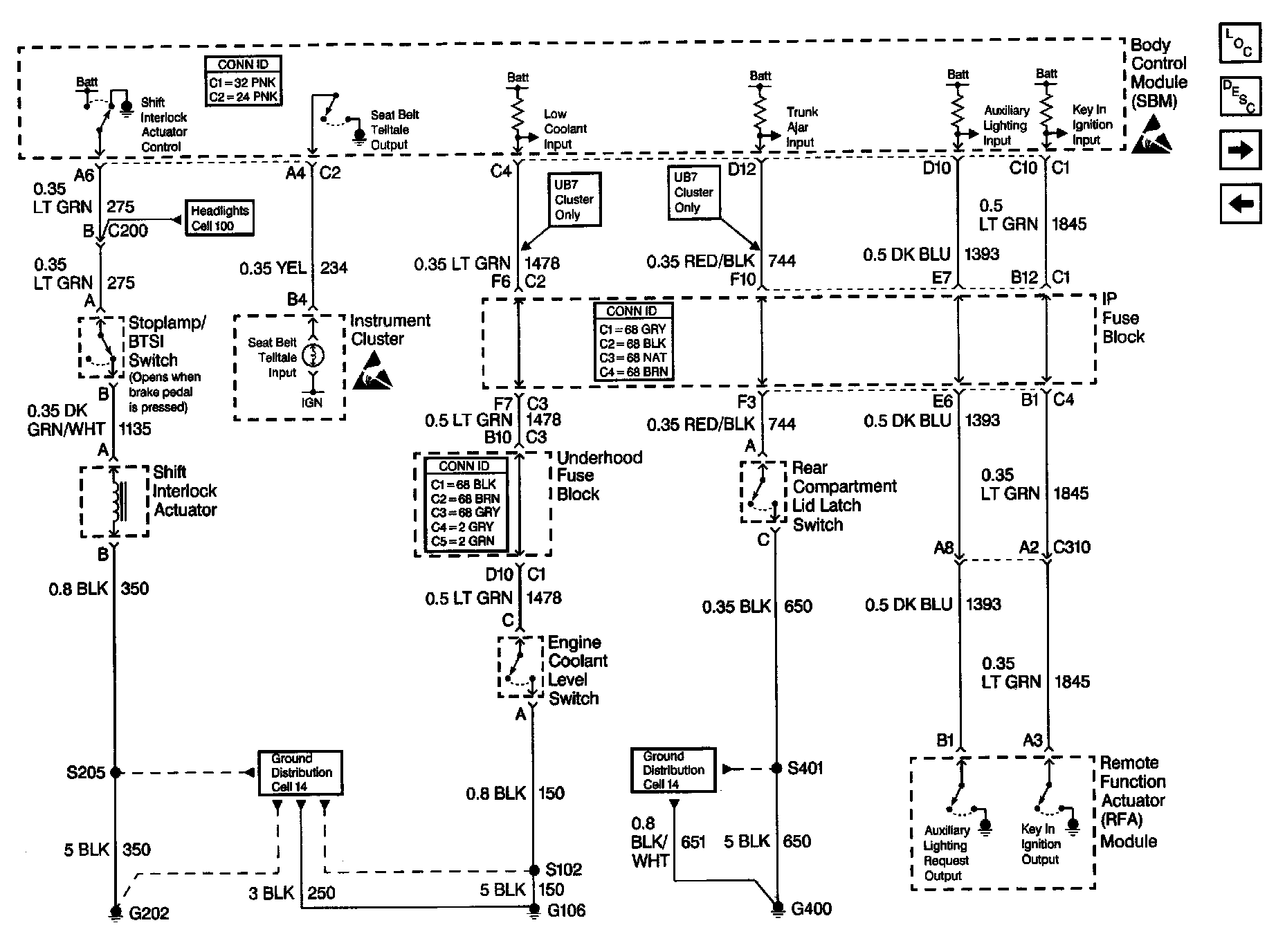

Body Control Module Schematics: Body Control Module Inputs And Outputs (Part 3 Of 3):
