Engine Control Module

Fig. 5 ECM Connector Pin Location:

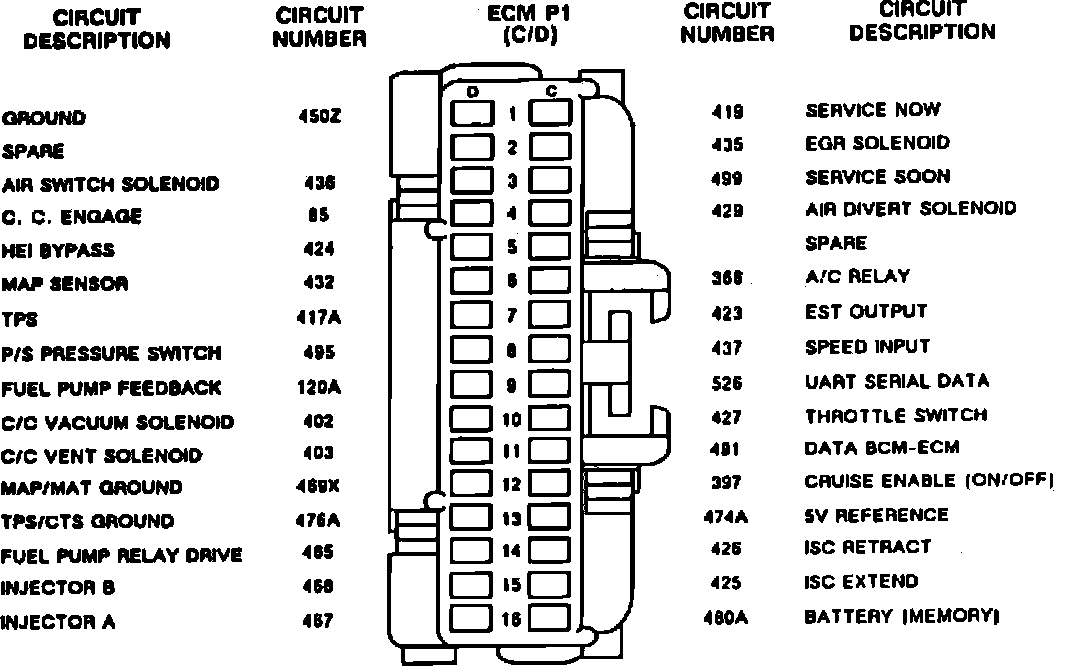

Fig. 12 ECM Connector (Part 1 Of 2):

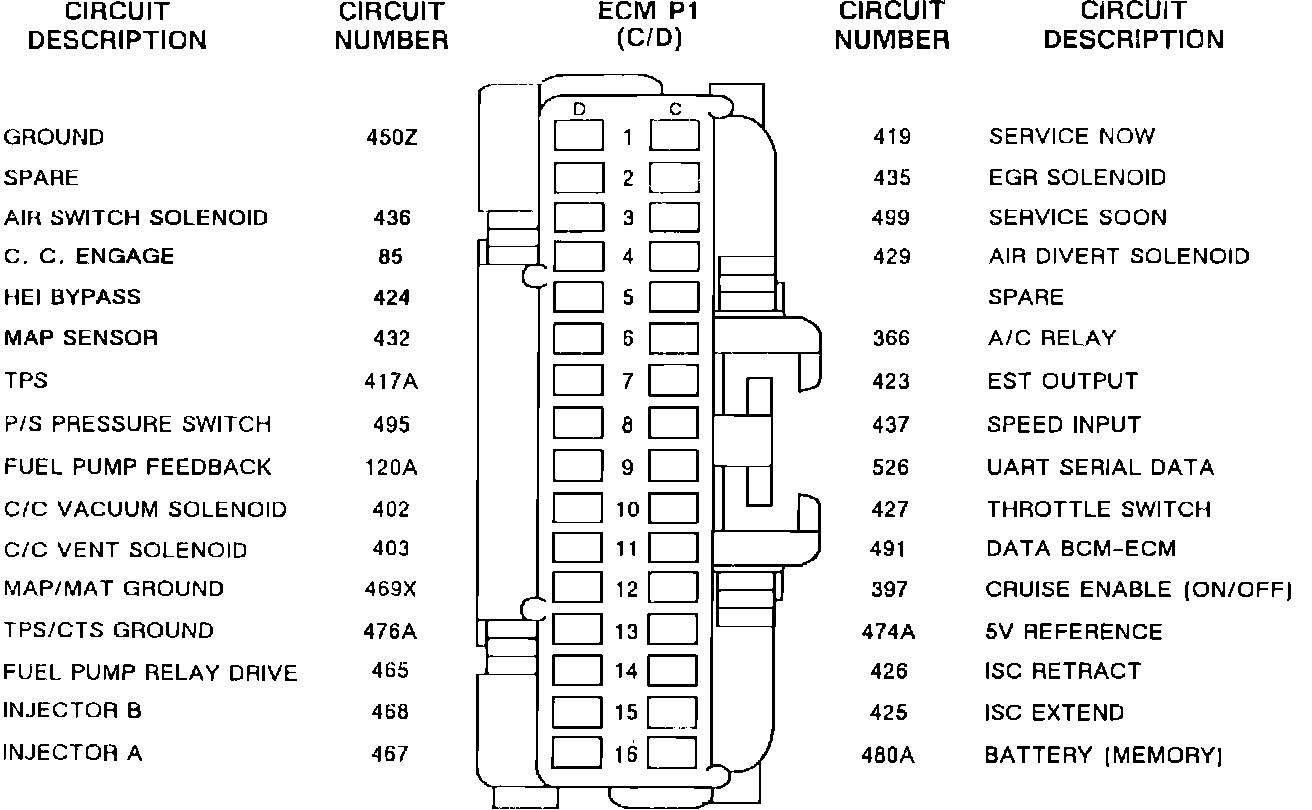

Fig. 12 ECM Connector (Part 2 Of 2):

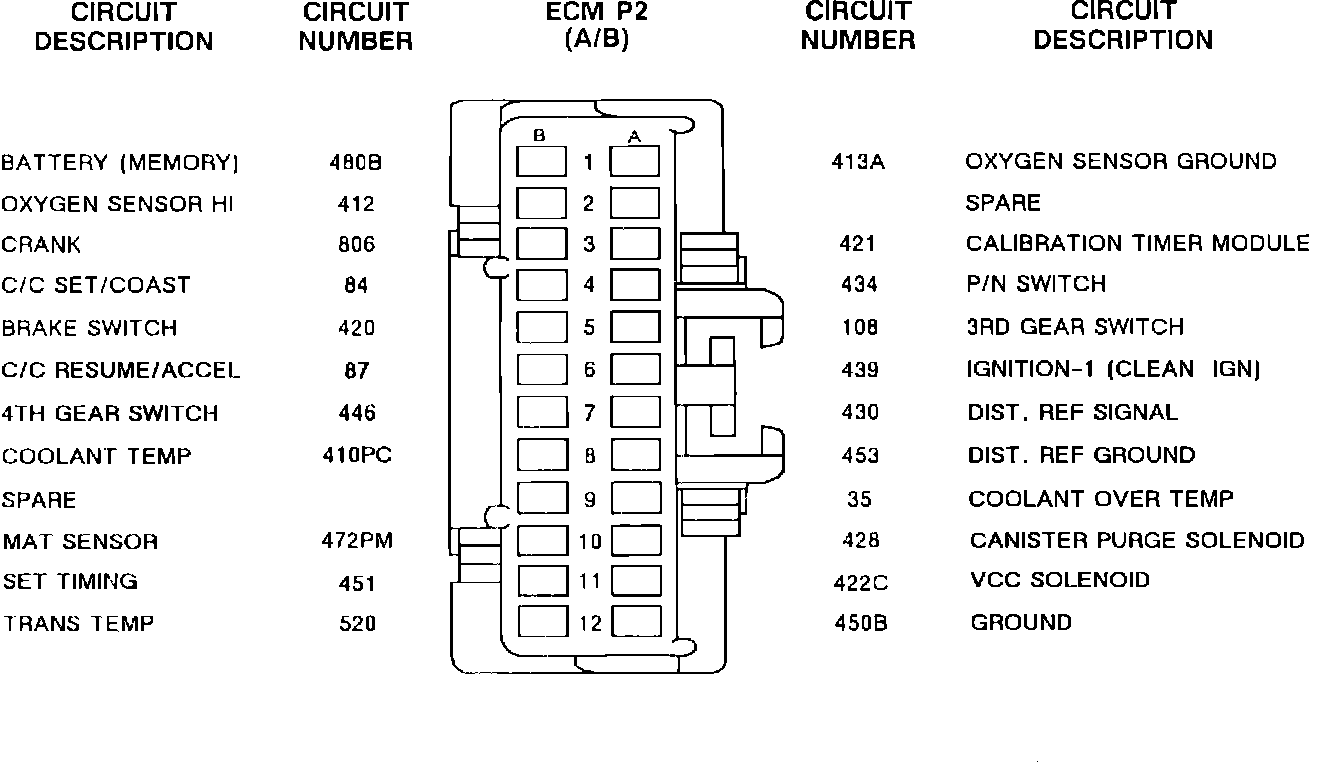

ECM Connector Pinout A/B:



ECM Connector Pinout C/D:
