Drive Motor Generator Battery Control Module X4
Drive Motor Generator Battery Control Module X4
Component Connector End Views

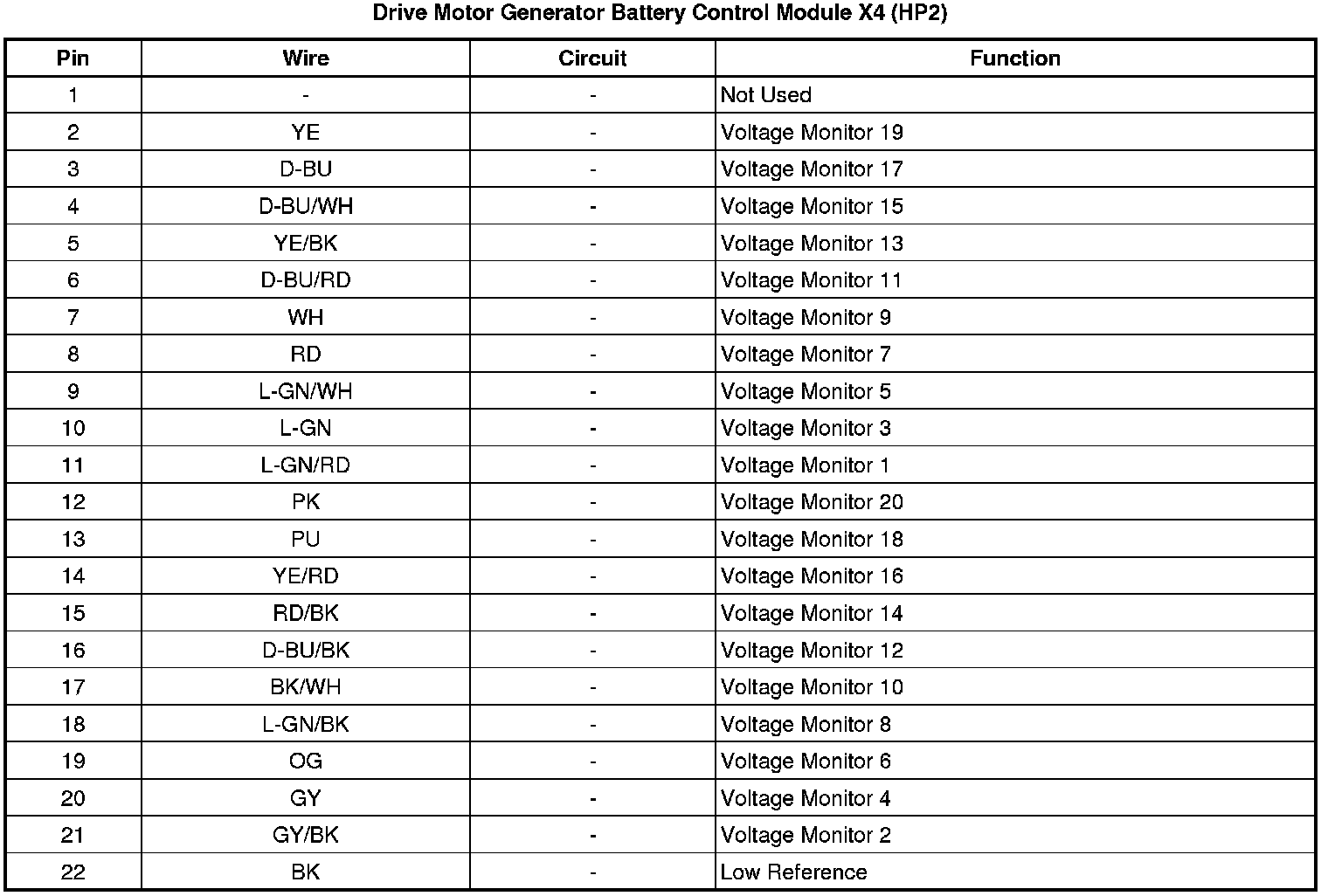

Drive Motor Generator Battery Control Module X4 (HP2)
