Home >> Chevrolet >> 1986 >> G 10 Van V6-262 4.3L >> Repair and Diagnosis >> Specifications >> Electrical Specifications >> Engine Control Module

Engine Control Module

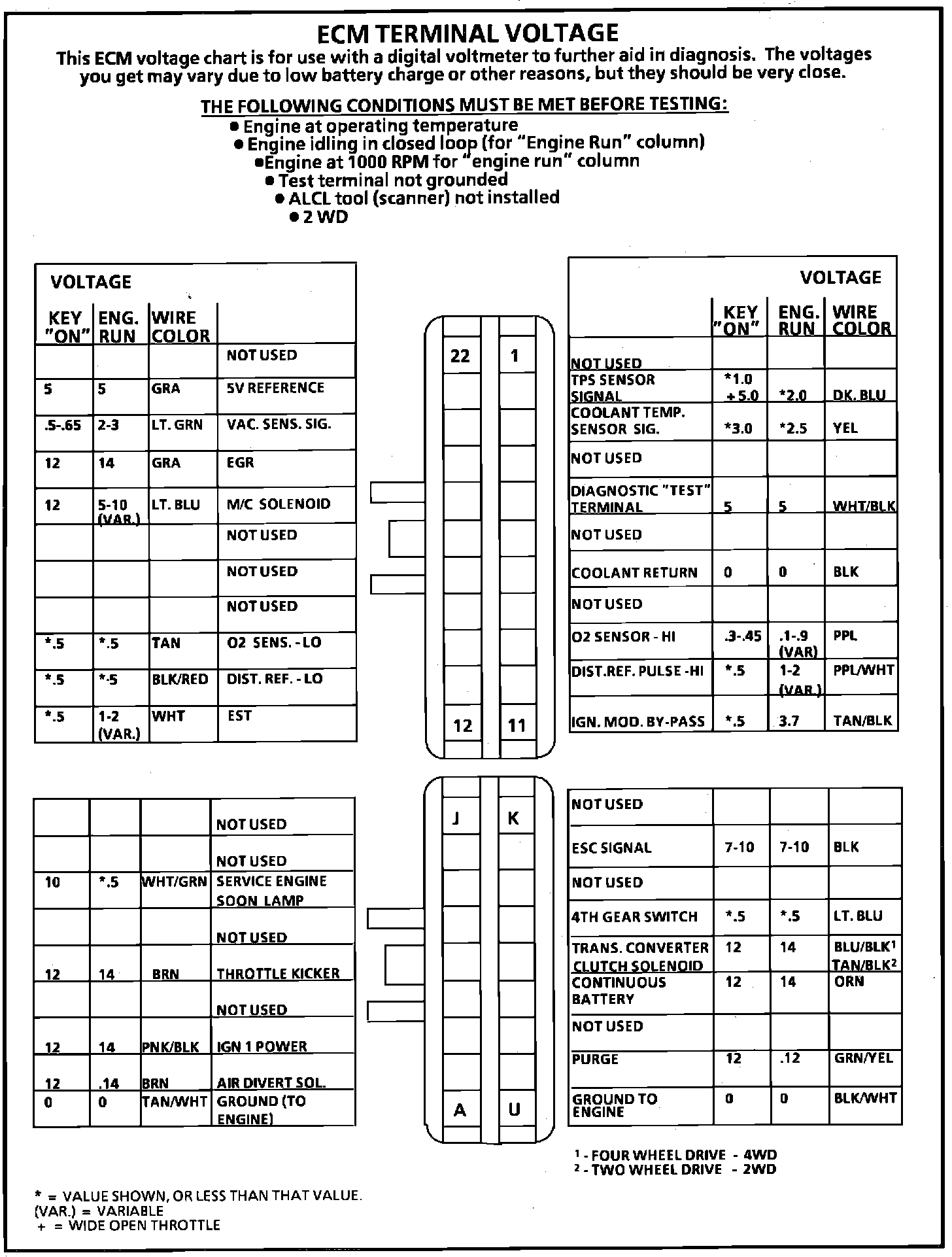

ECM Terminal Identification & Voltage Specifications:
