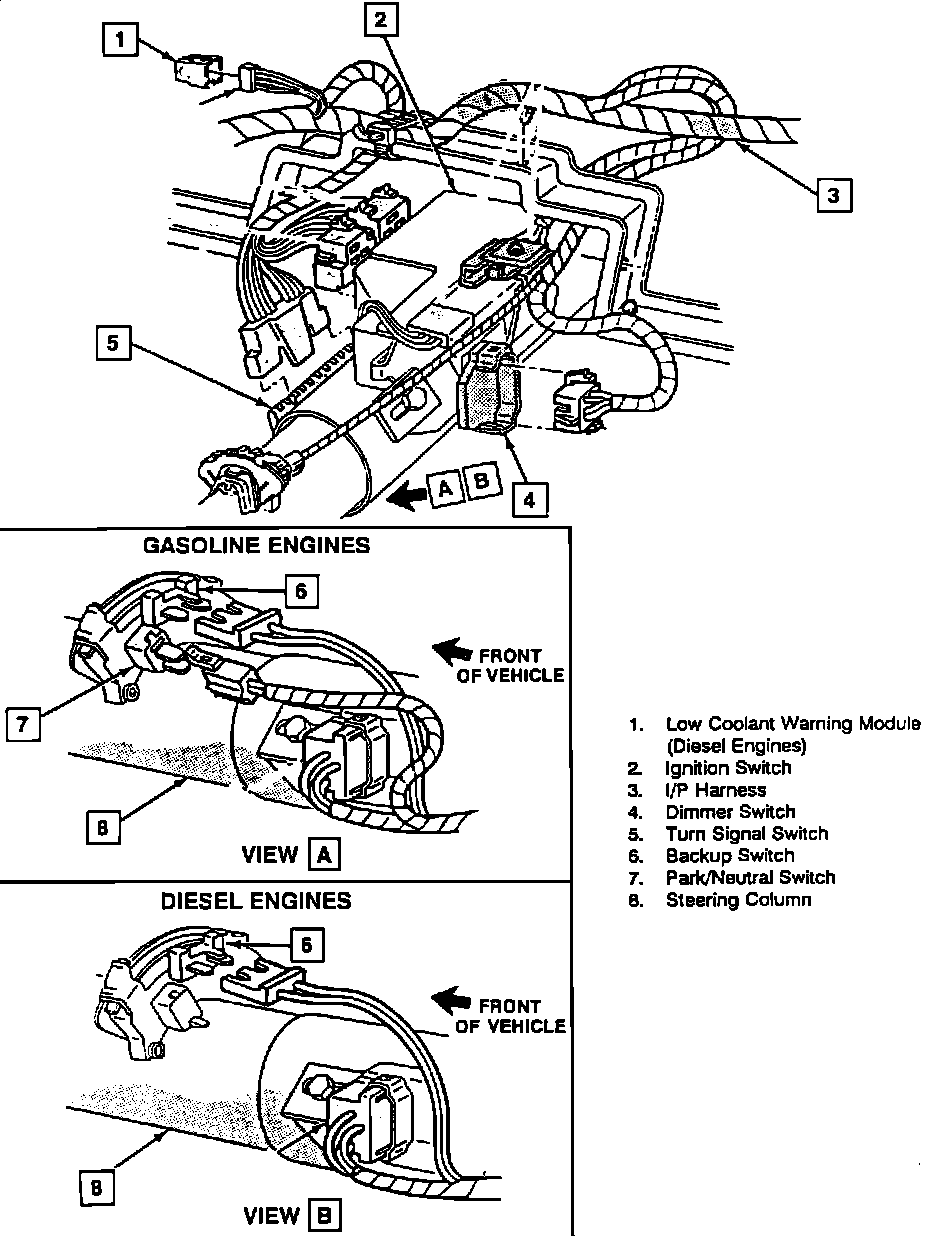

Low Coolant Module

Lower Steering Column Components:




Behind LH Center Of I/P

Applicable to: G Series
