Engine Control Module

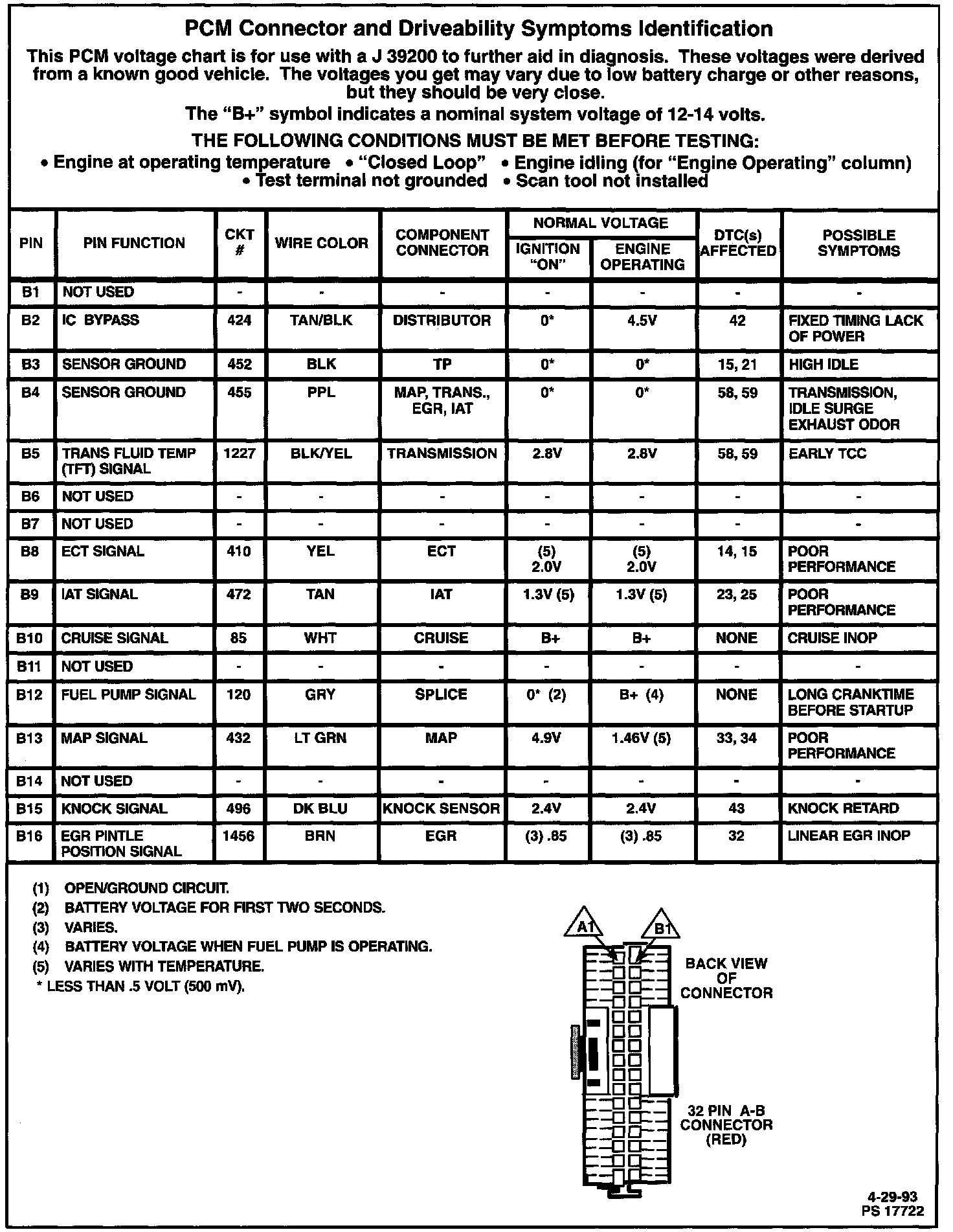

PCM Connector and Driveability Symptoms Identification:

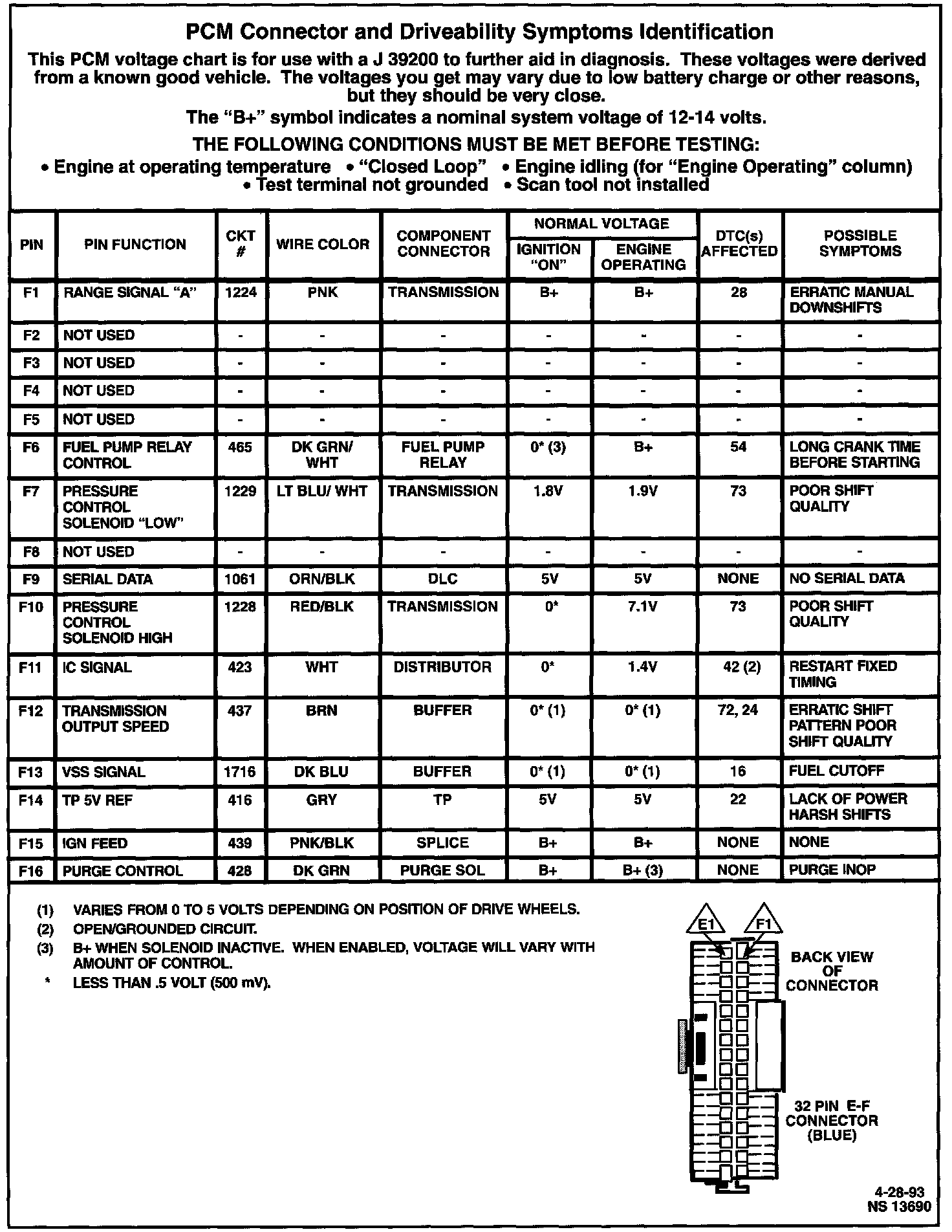

PCM Connector and Driveability Symptoms Identification:

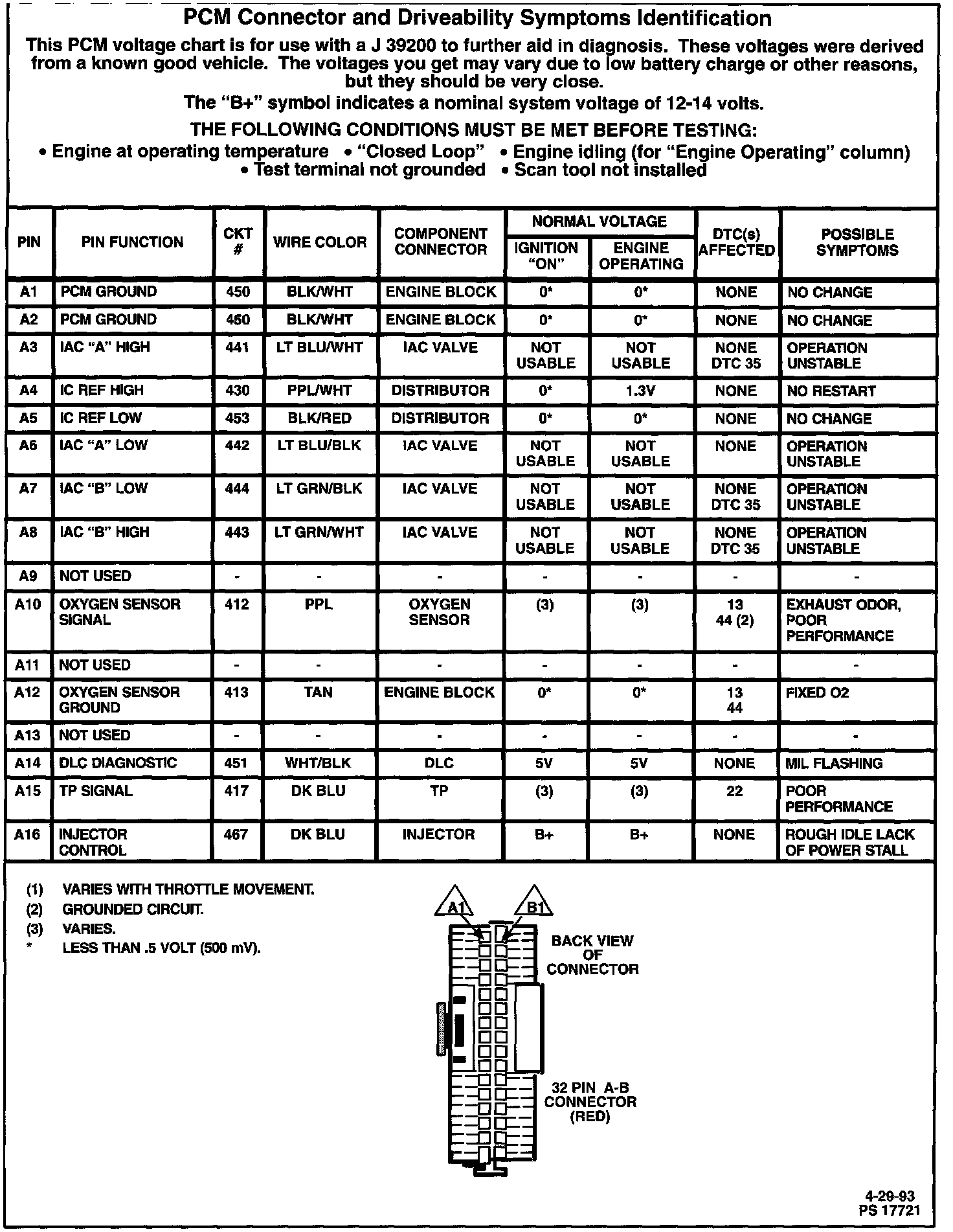

PCM Connector and Driveability Symptoms Identification:

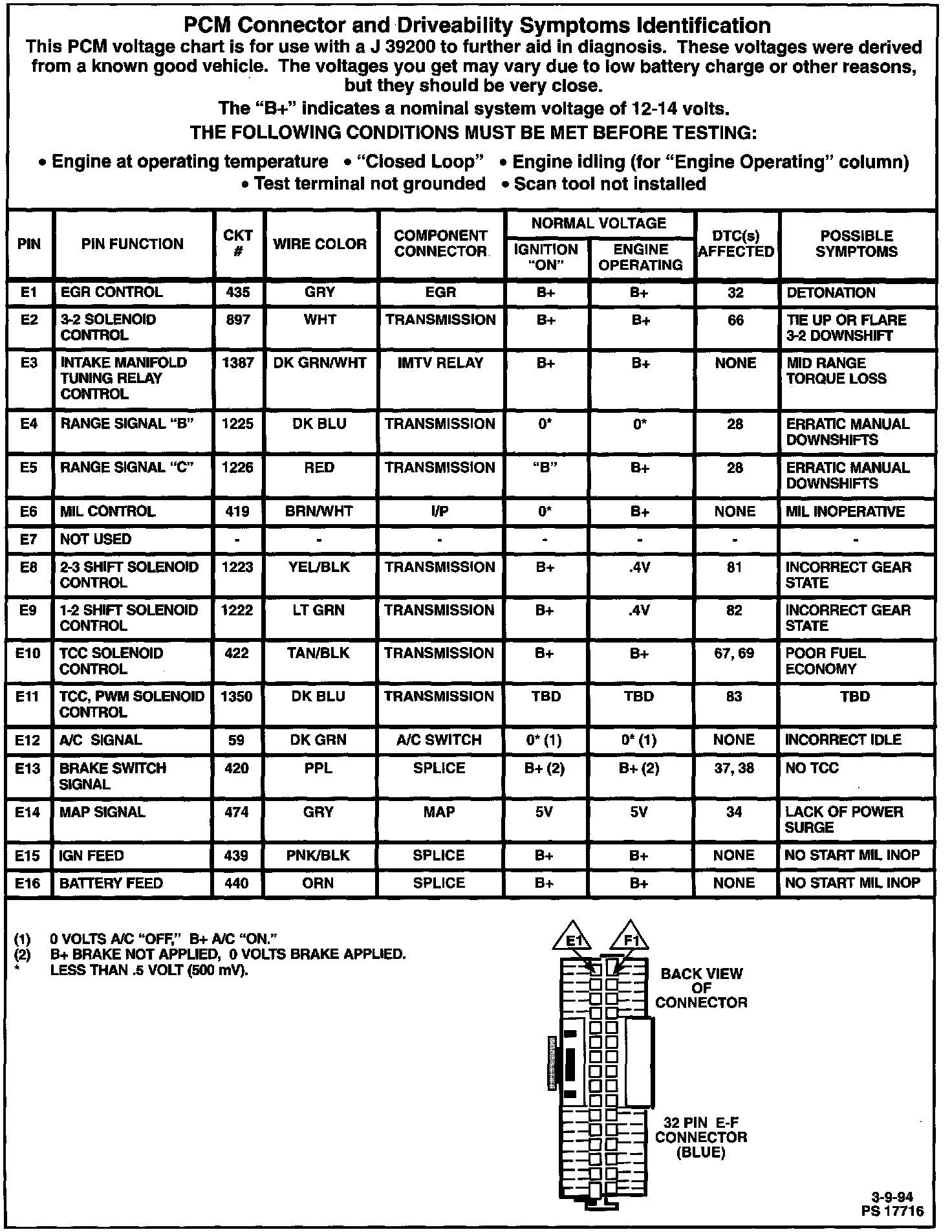

PCM Connector and Driveability Symptoms Identification:
