Home >> Chevrolet >> 1995 >> G 10 Van V6-262 4.3L VIN Z TBI >> Repair and Diagnosis >> Diagrams >> Components >> Modules >> Distributor Control Module

Distributor Control Module

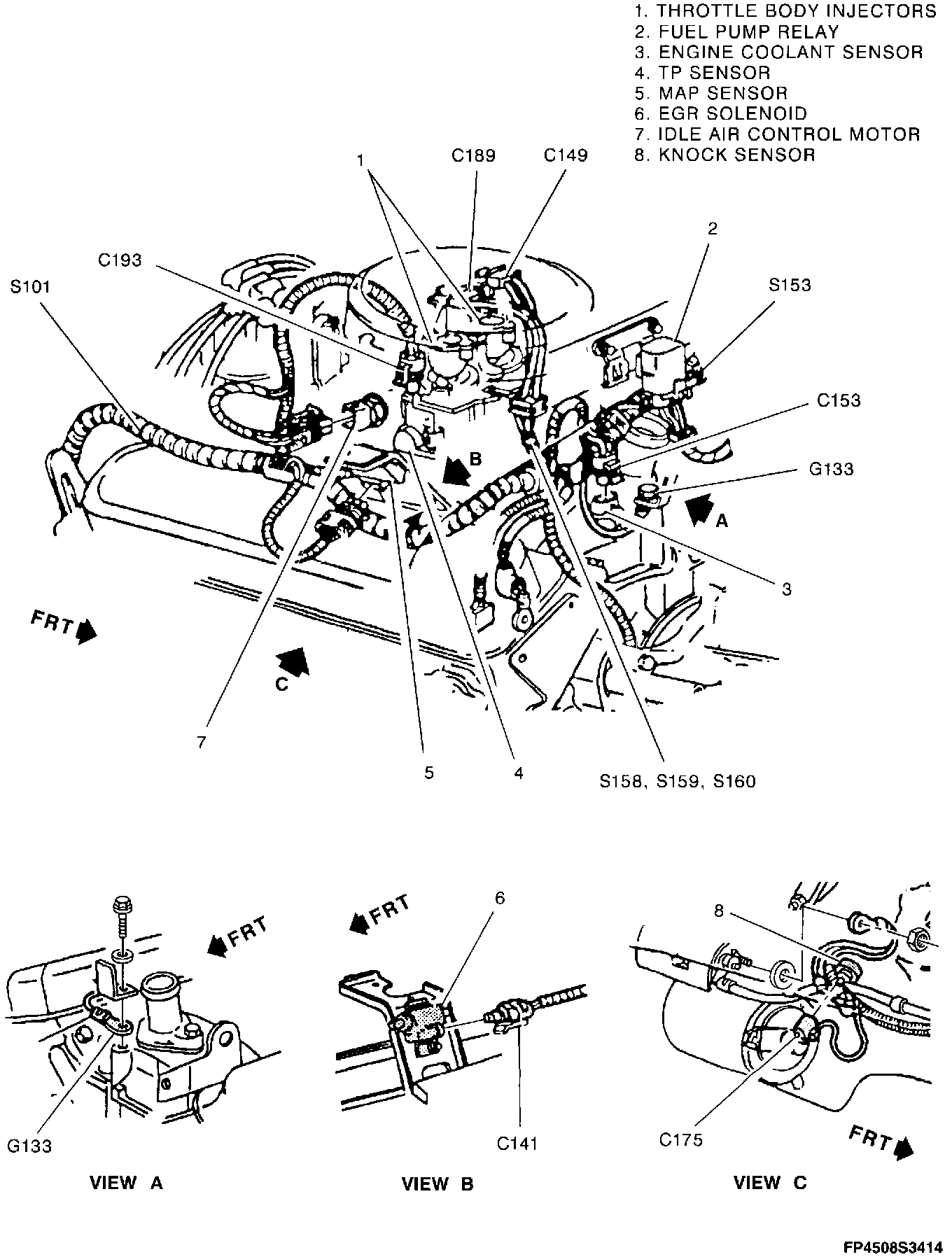

Engine Wiring, LH Side:

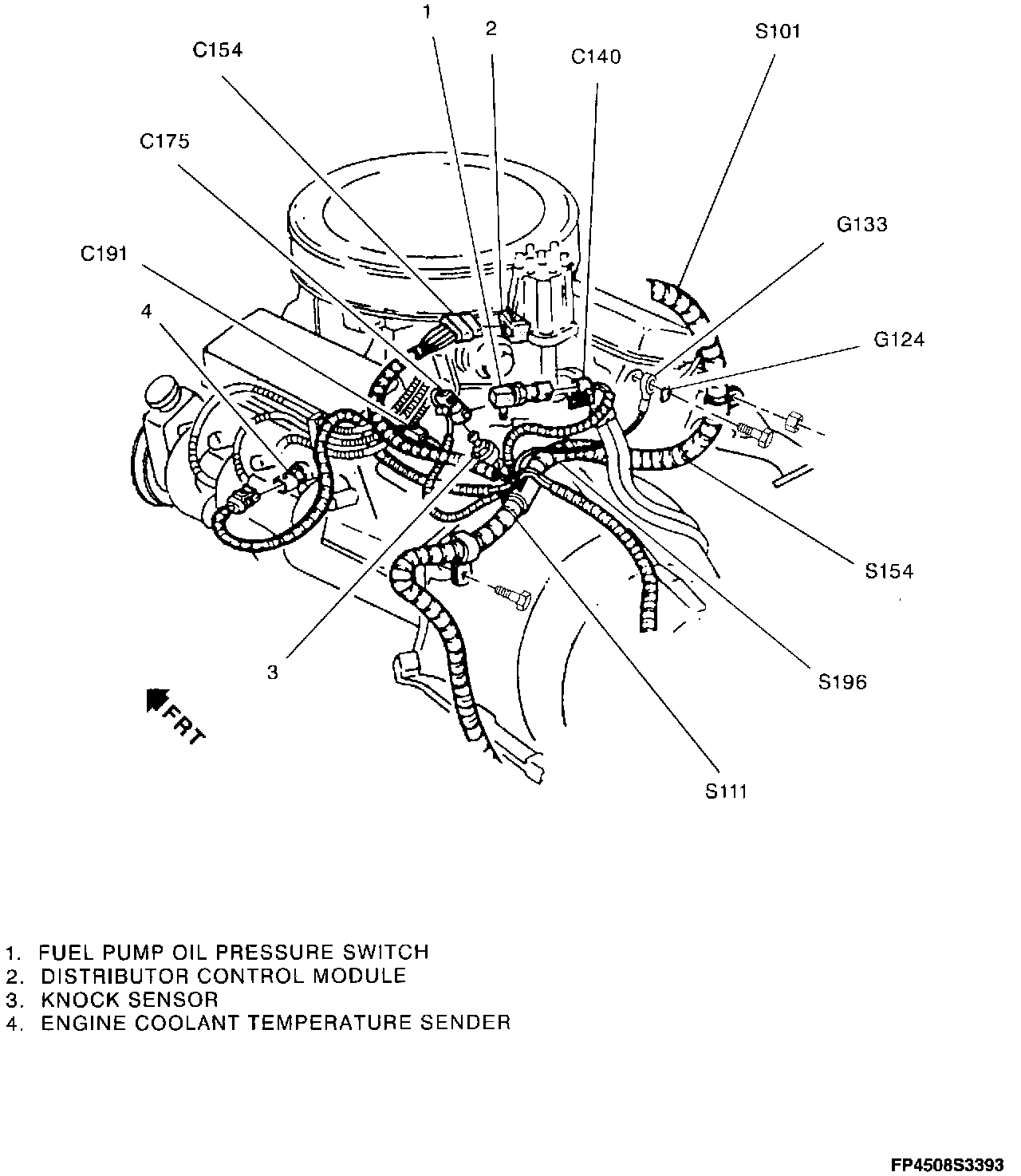

Engine Wiring, RH Side:



Engine Wiring, RH Side:
