Distributor Control Module

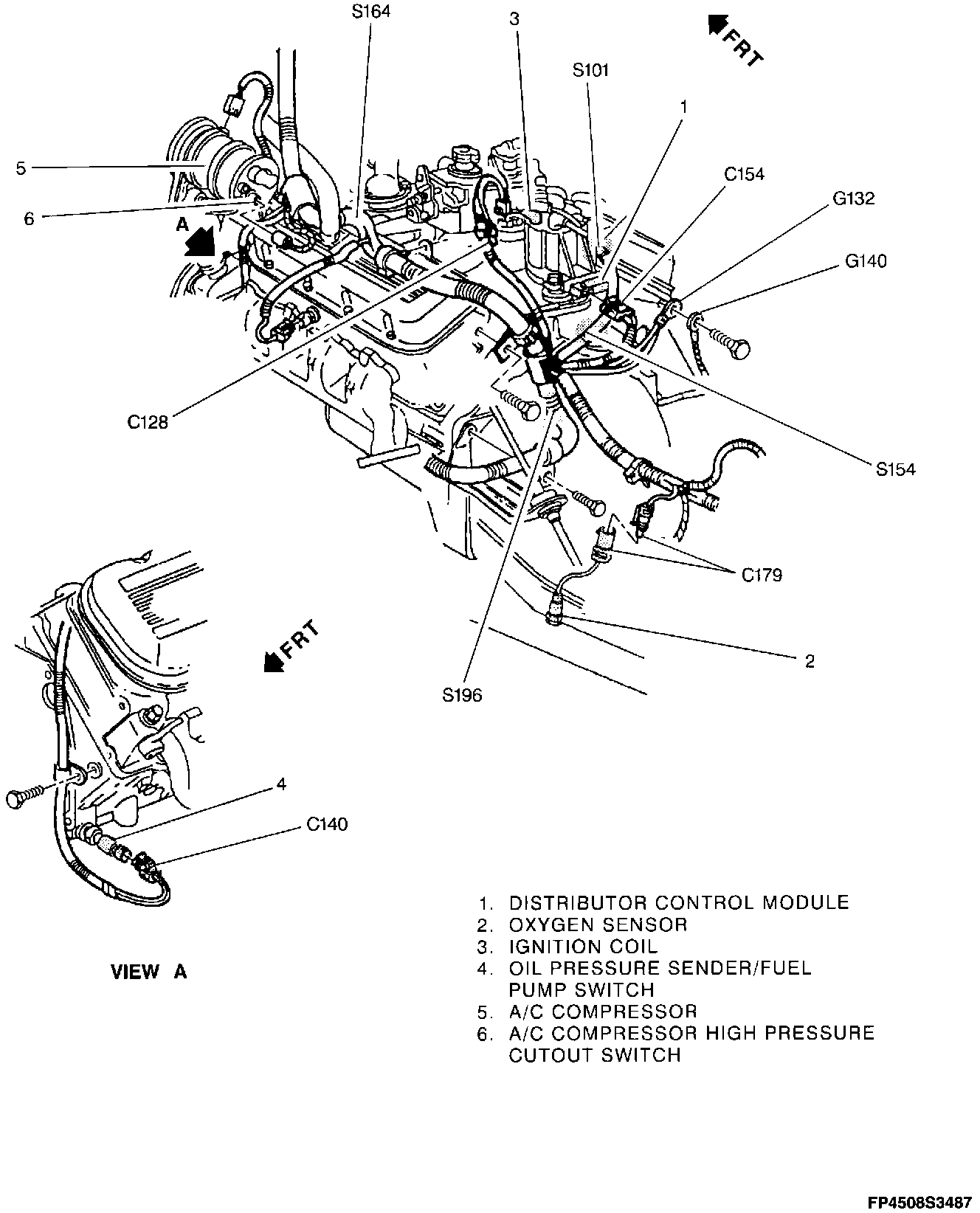

Engine Wiring And Harness Connector:

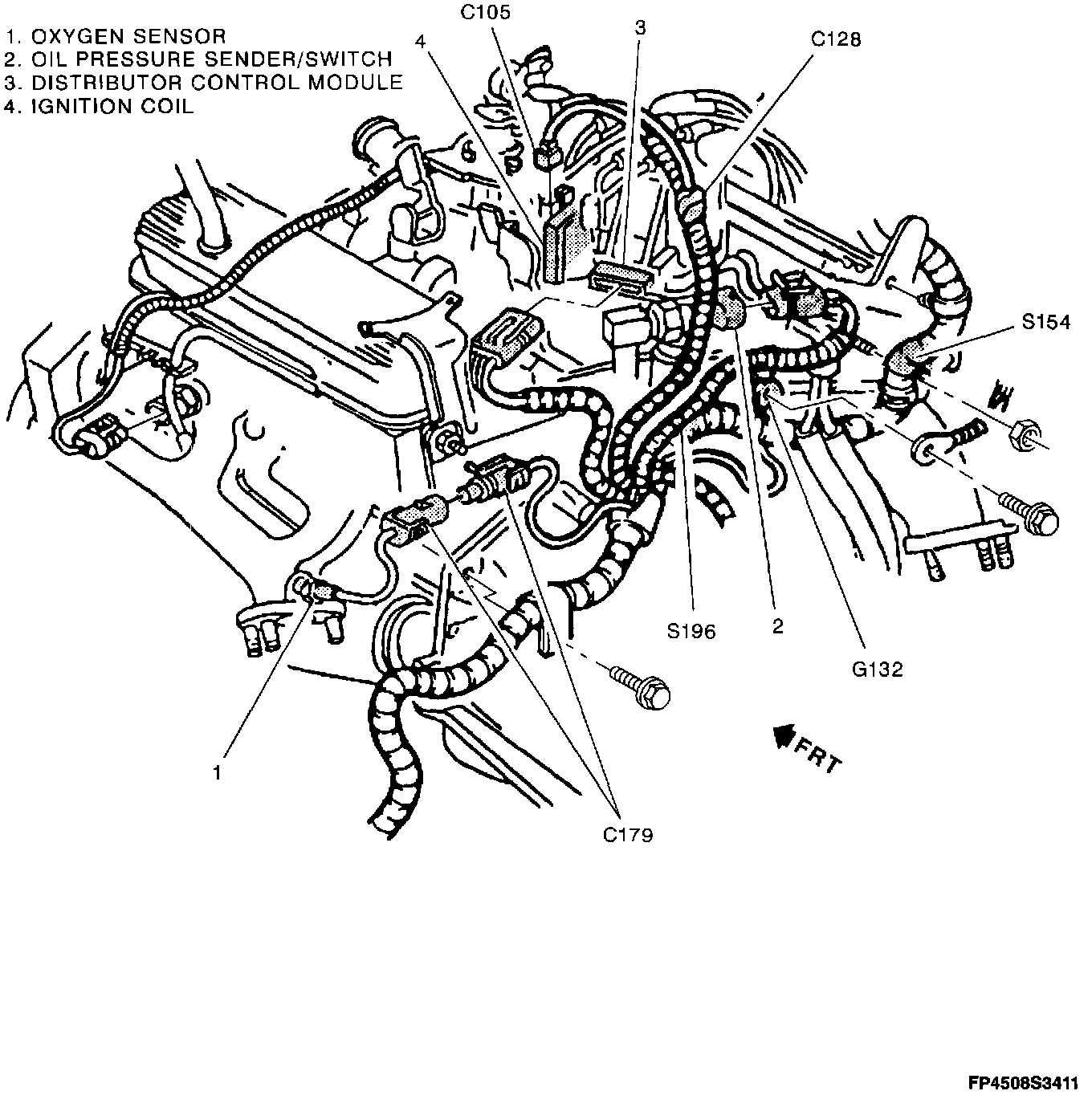

Engine Wiring, Rear:



Engine Wiring, LH Side:



Oil Pressure/Fuel Pump Switch:
