Engine Control Module: Locations

Bulkhead Connector Components:

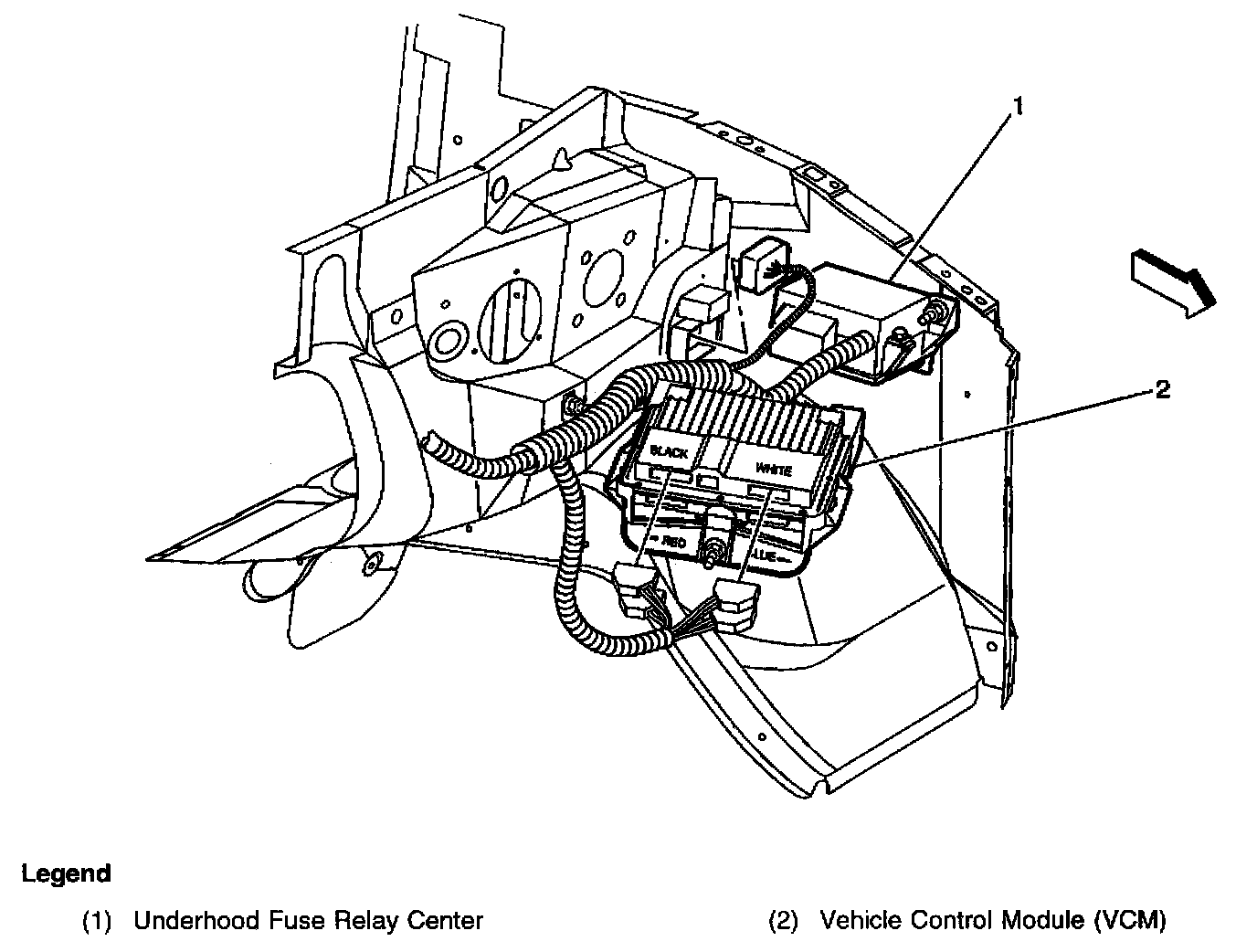

Location View:






In the engine compartment, on the left fender
