Engine Control Module: Locations

POWERTRAIN CONTROL MODULE

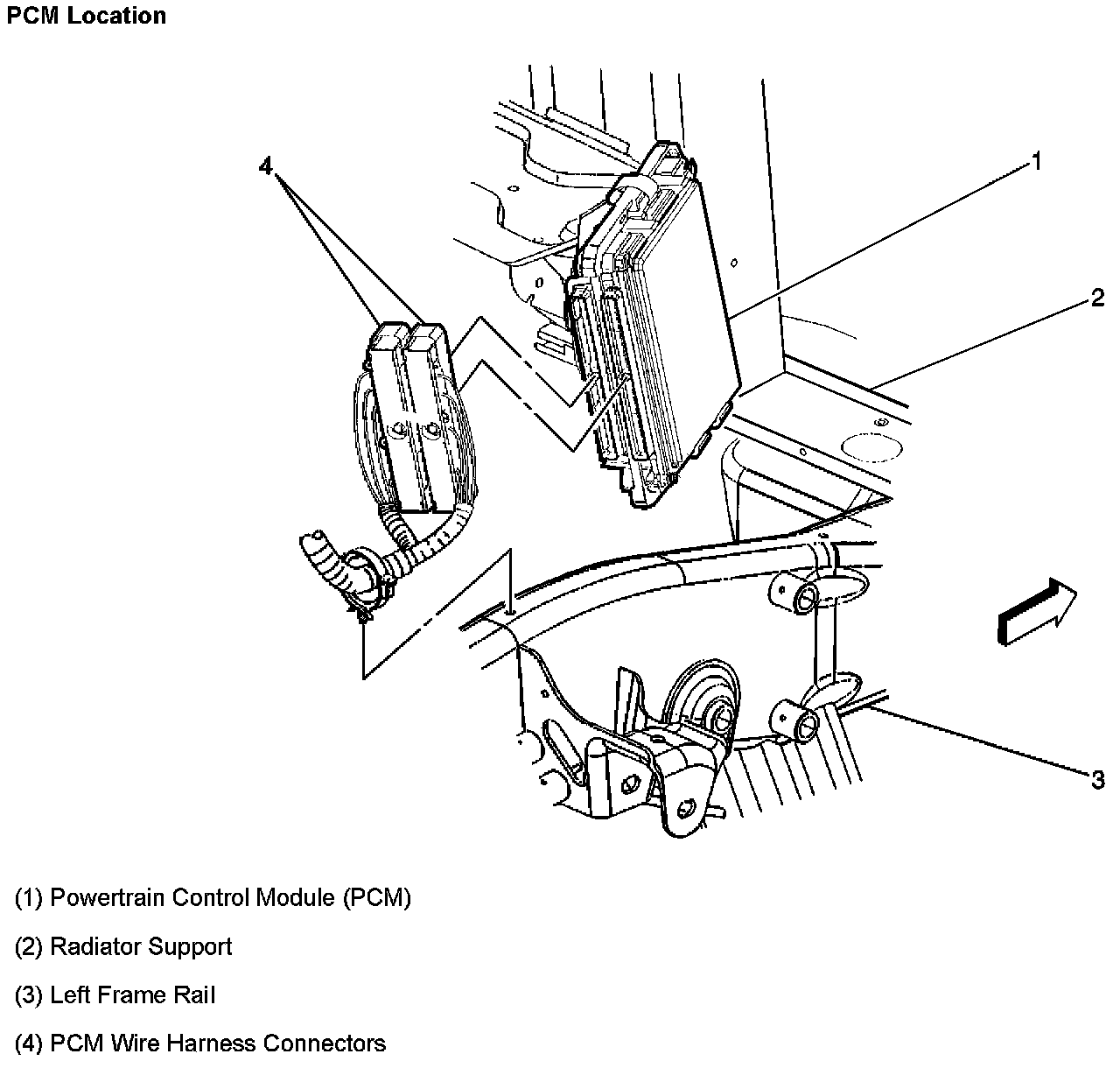

PCM Location:






The Powertrain Control Module is located in the Left Front of the Engine Compartment to the Left of the Fan Shroud.
