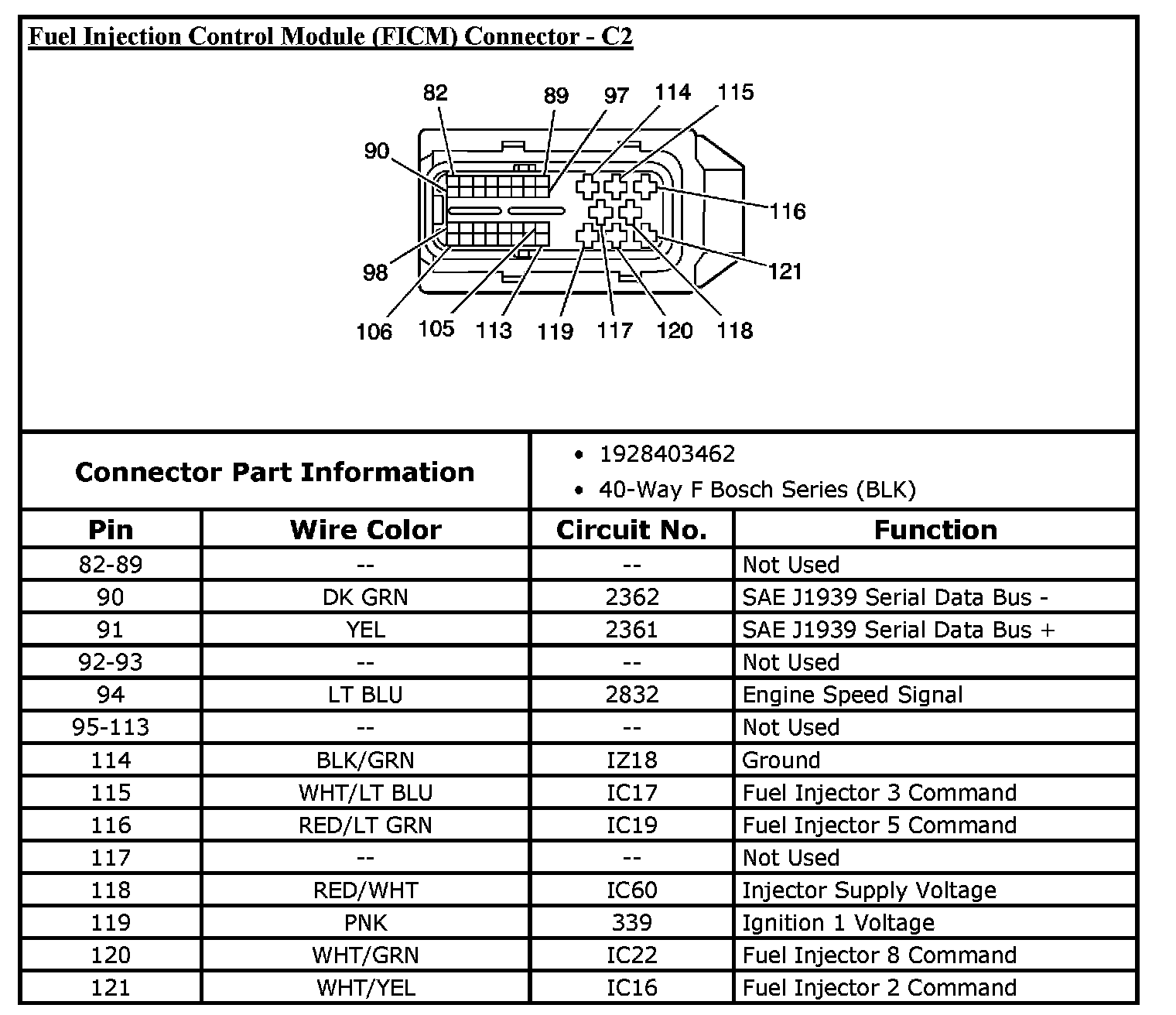

Home >> Chevrolet >> 2004 >> Silverado 2500 2WD V8-6.6L DSL Turbo VIN 2 >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Fuel Injector Control Module >> Diagrams >> Fuel Injection Control Module - C2
