Connector Views



Component Connector End Views

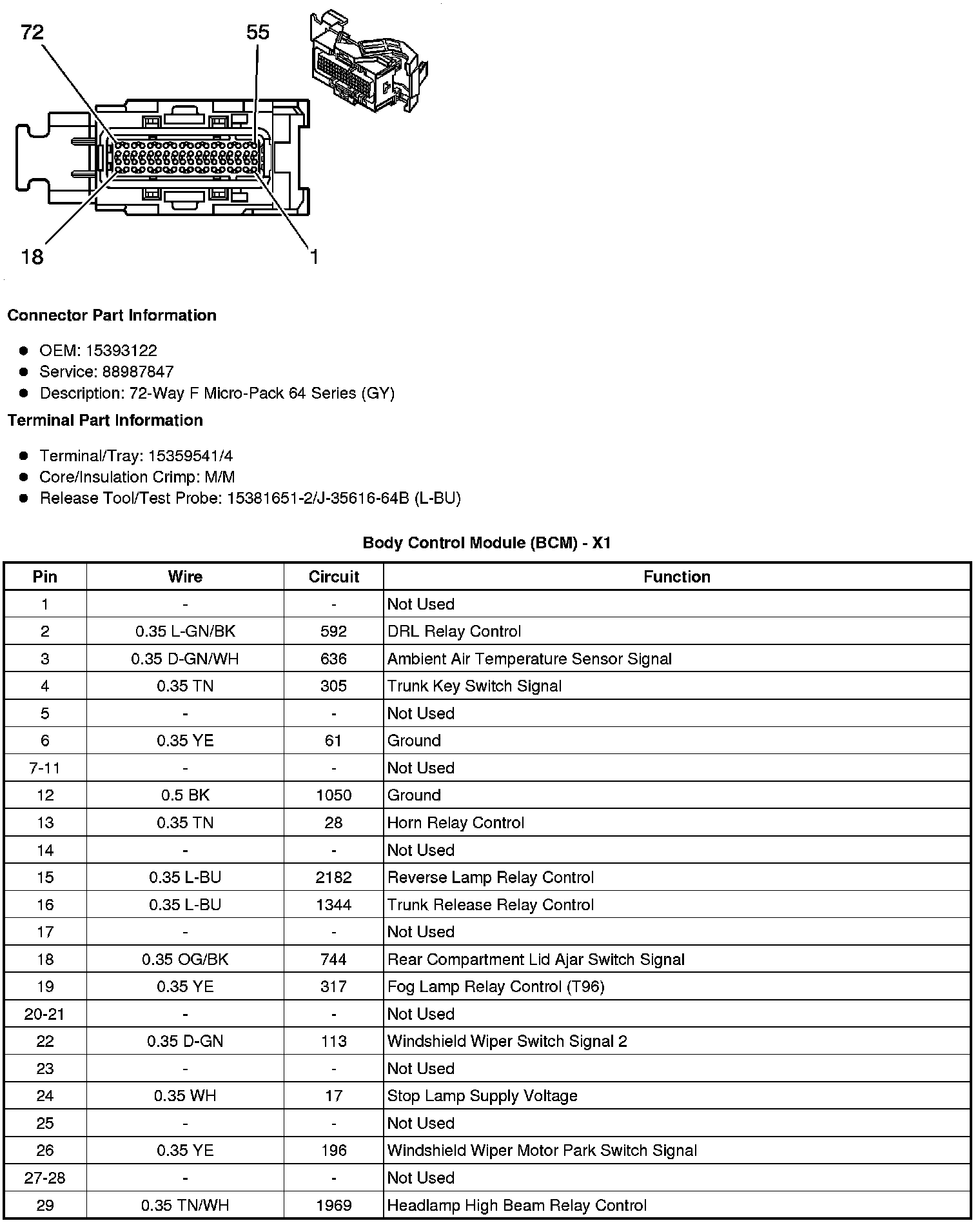

Body Control Module (BCM) - X1

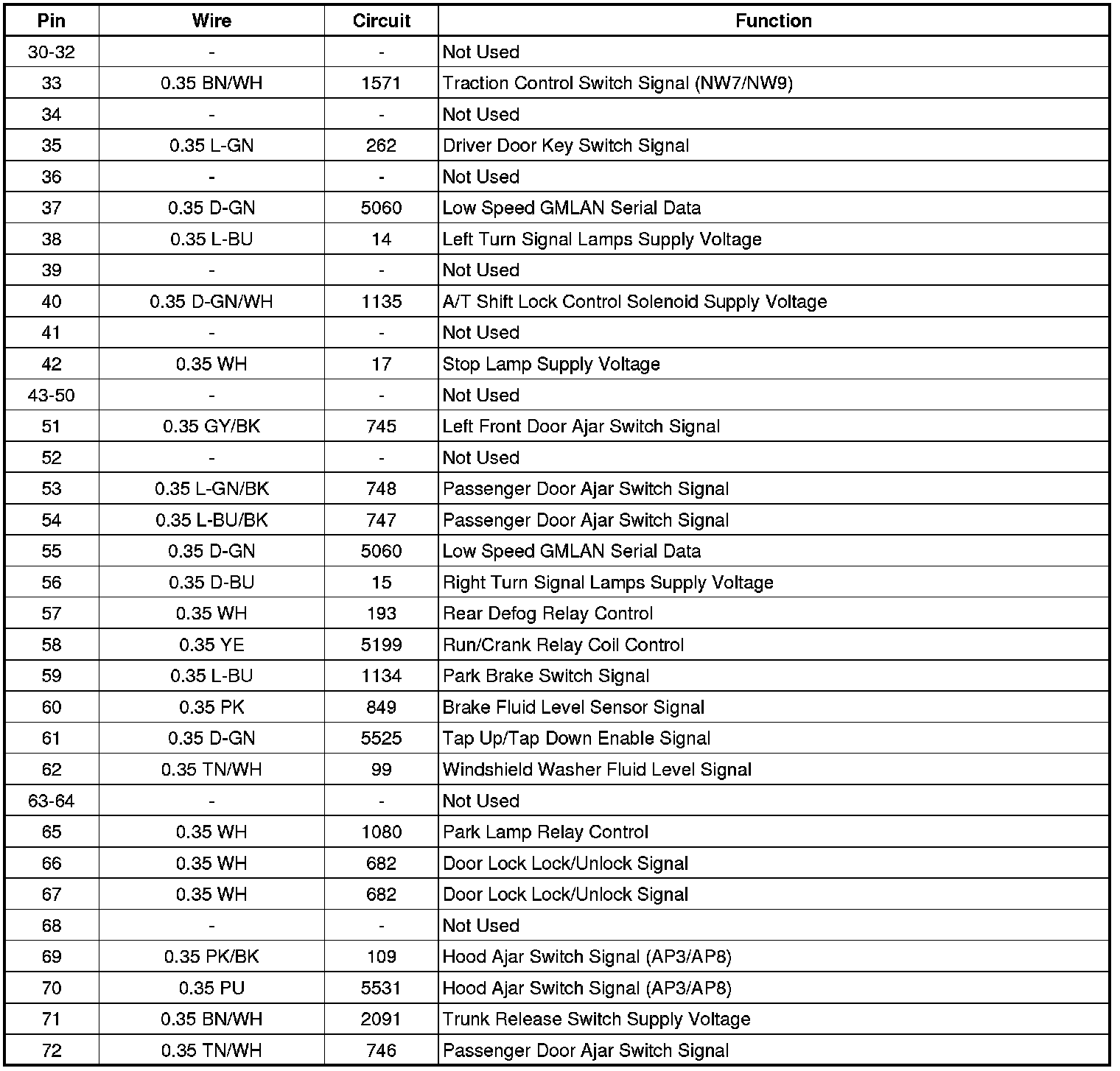

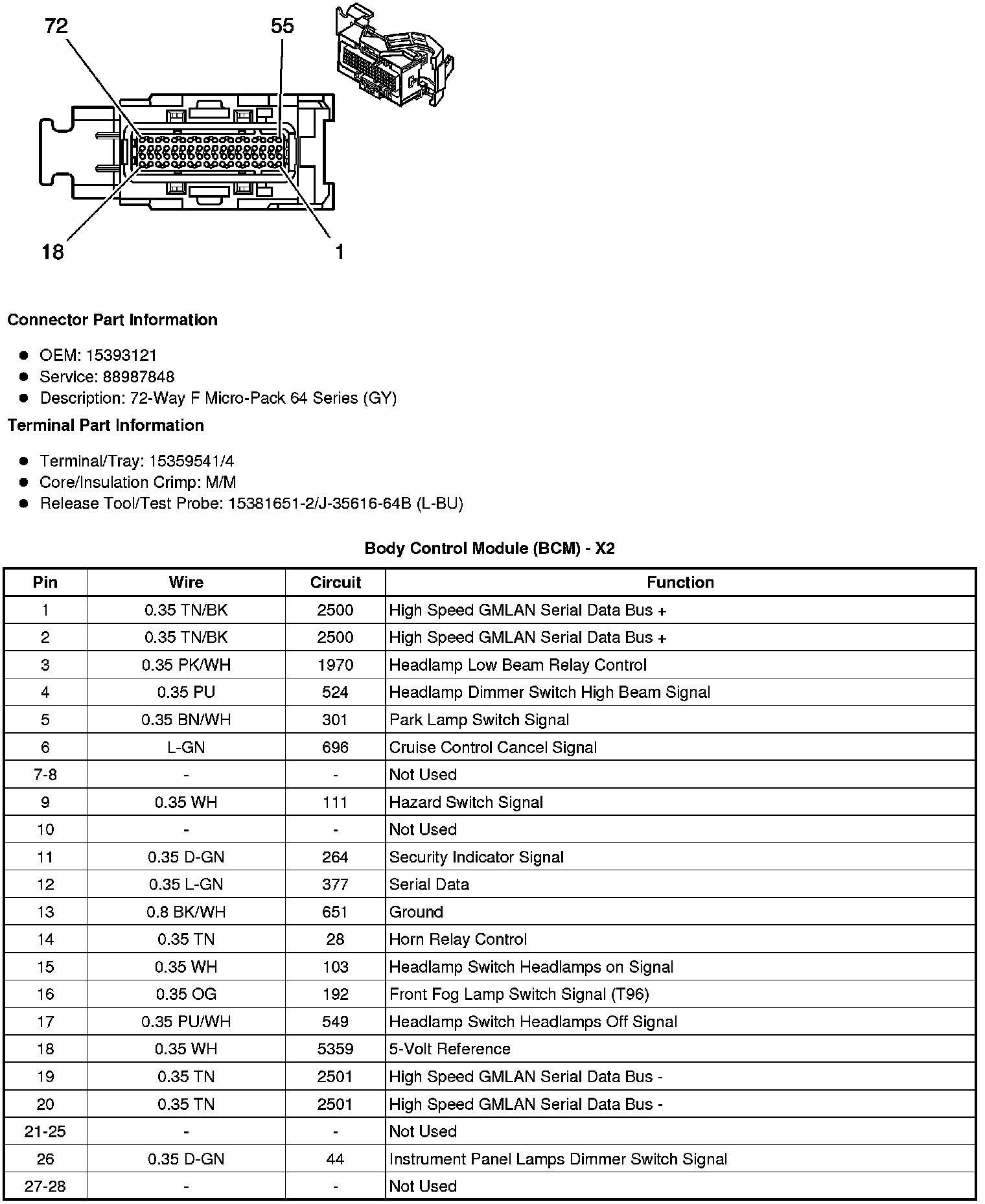

Body Control Module (BCM) - X2

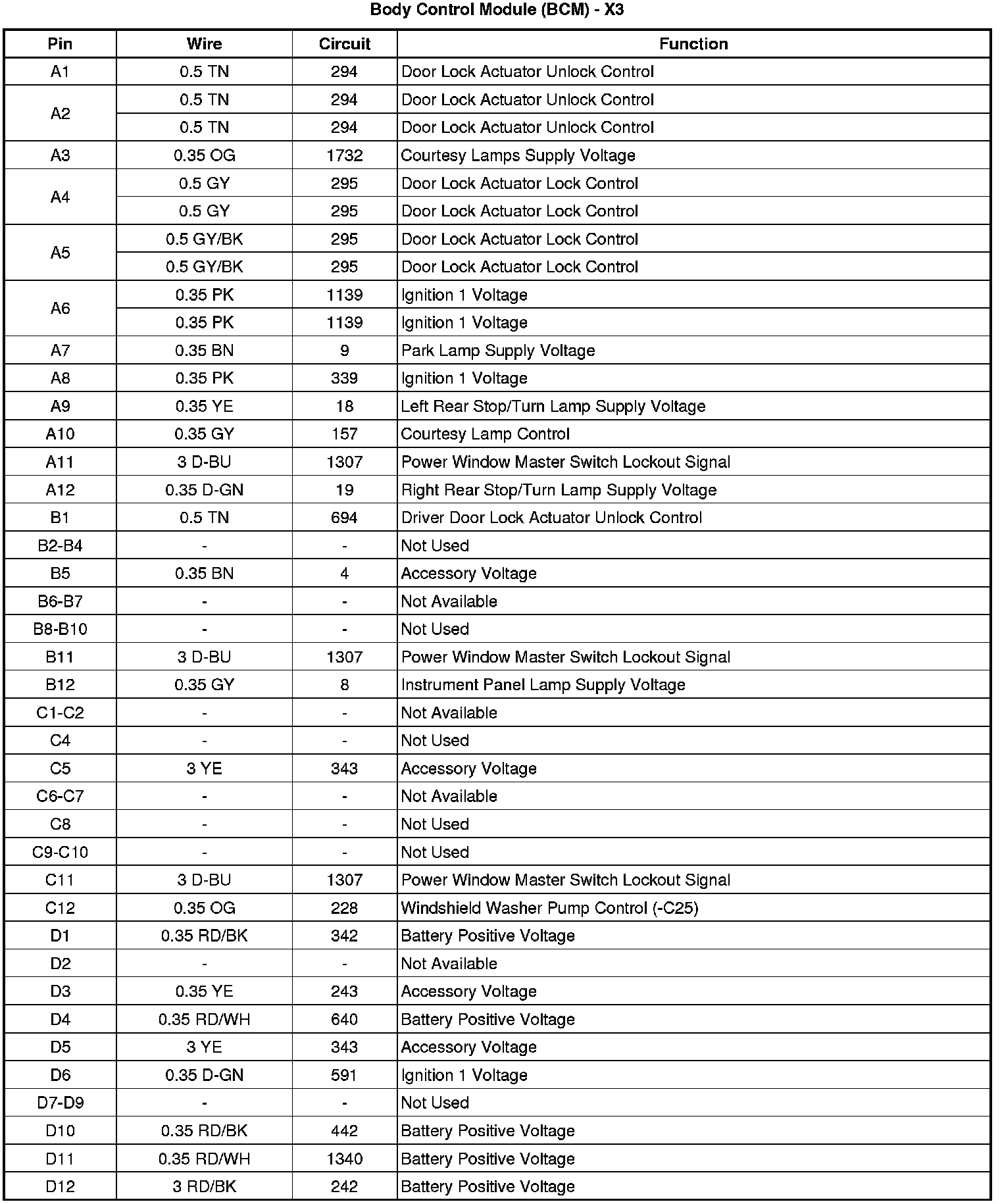

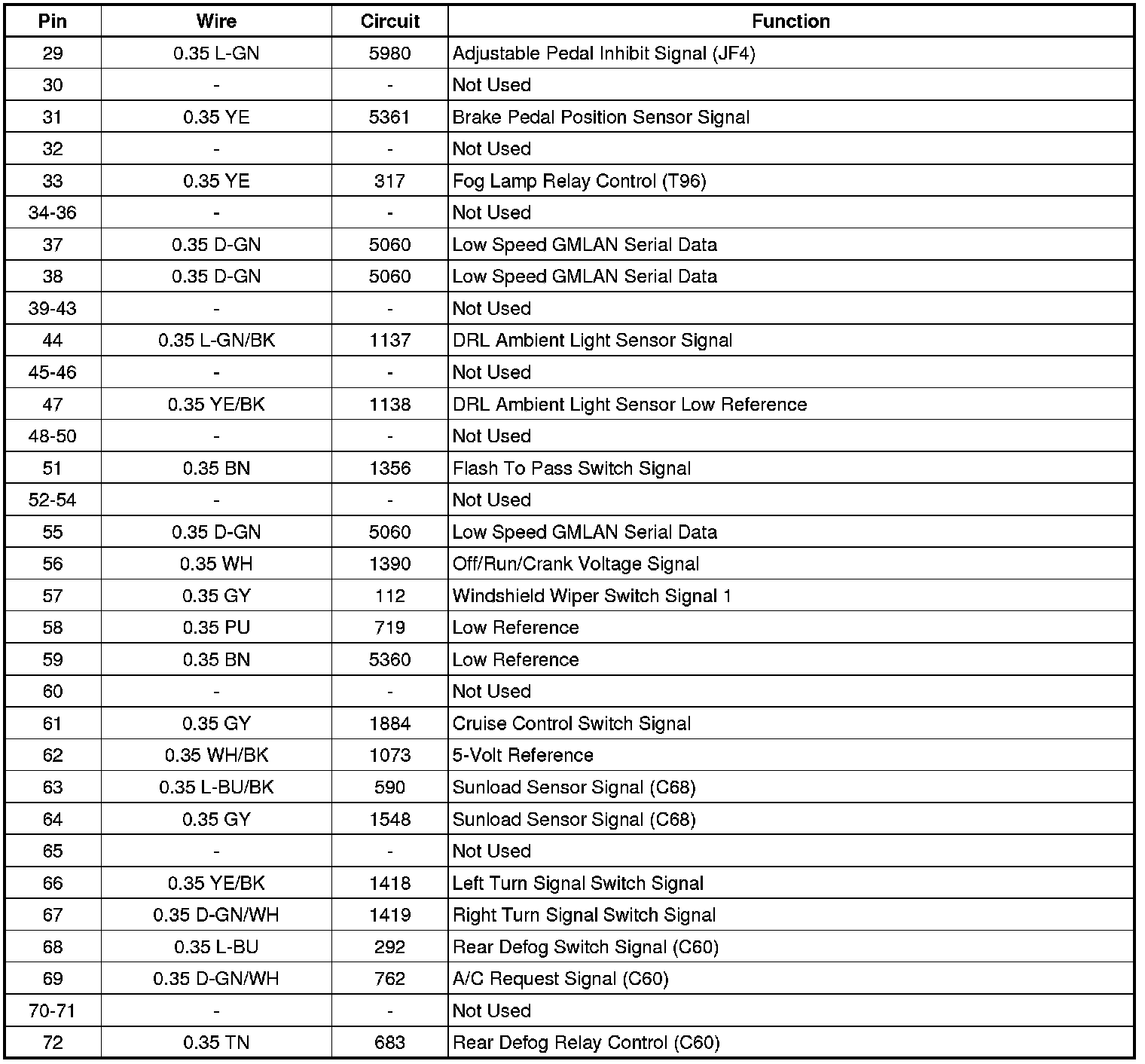

Body Control Module (BCM) - X3

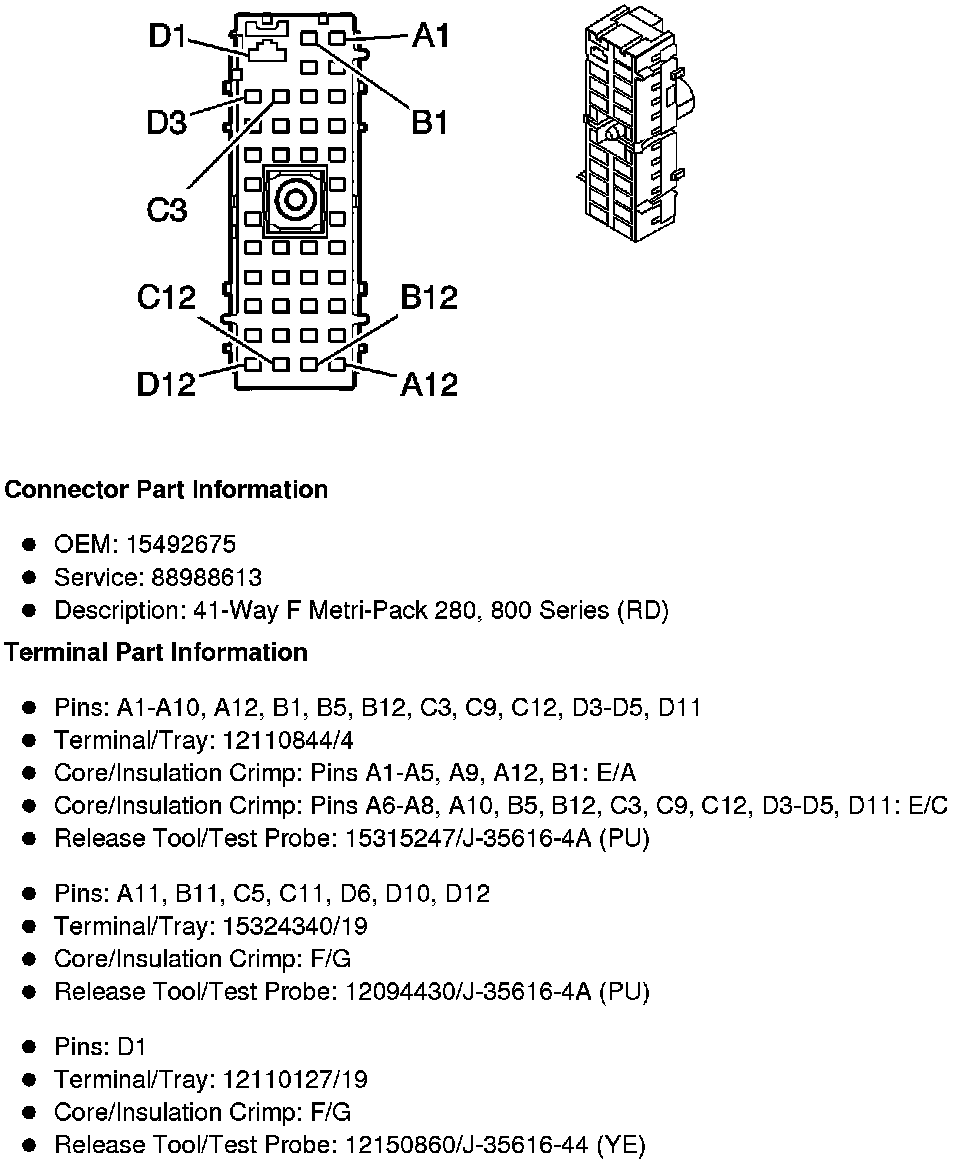

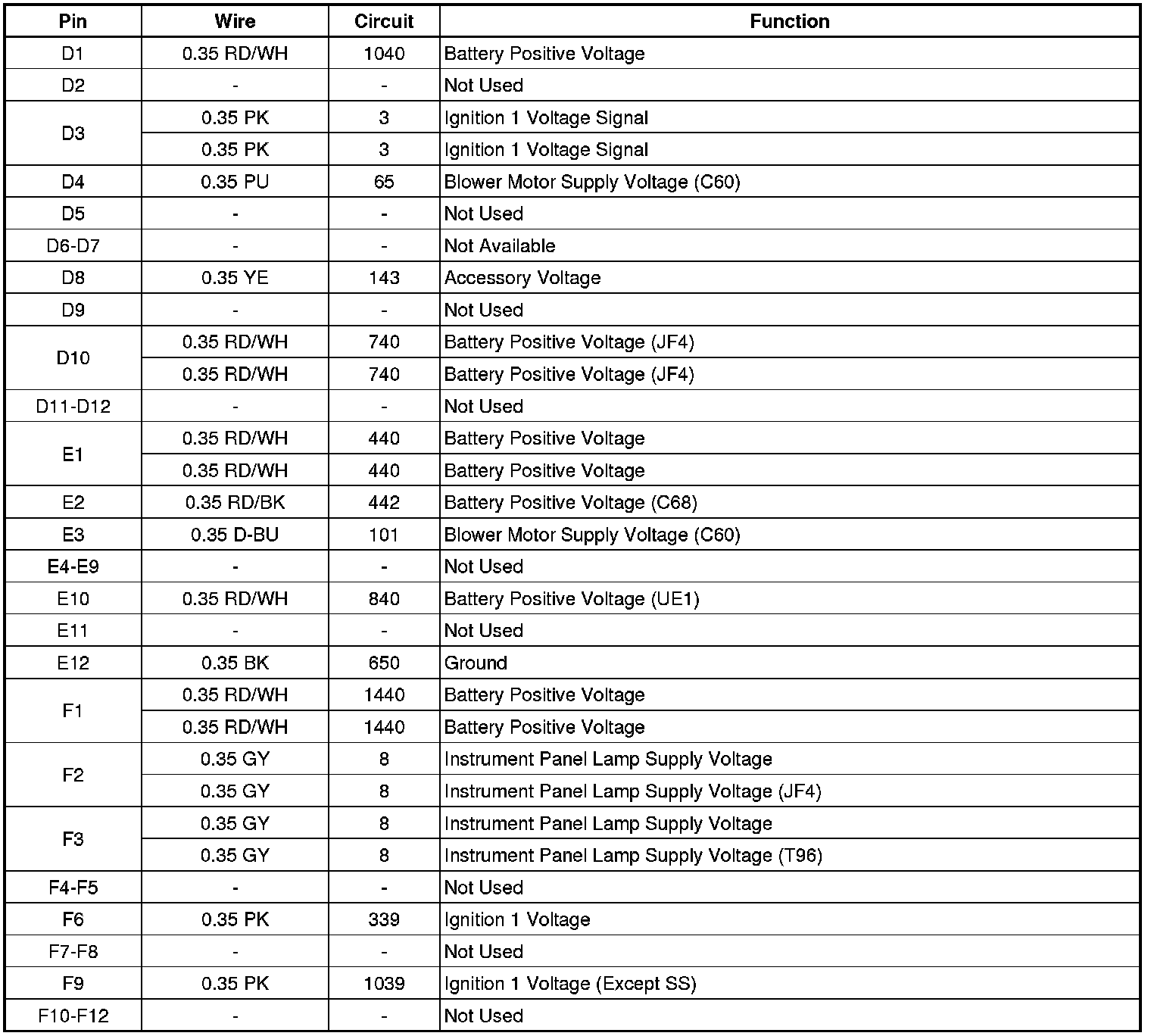

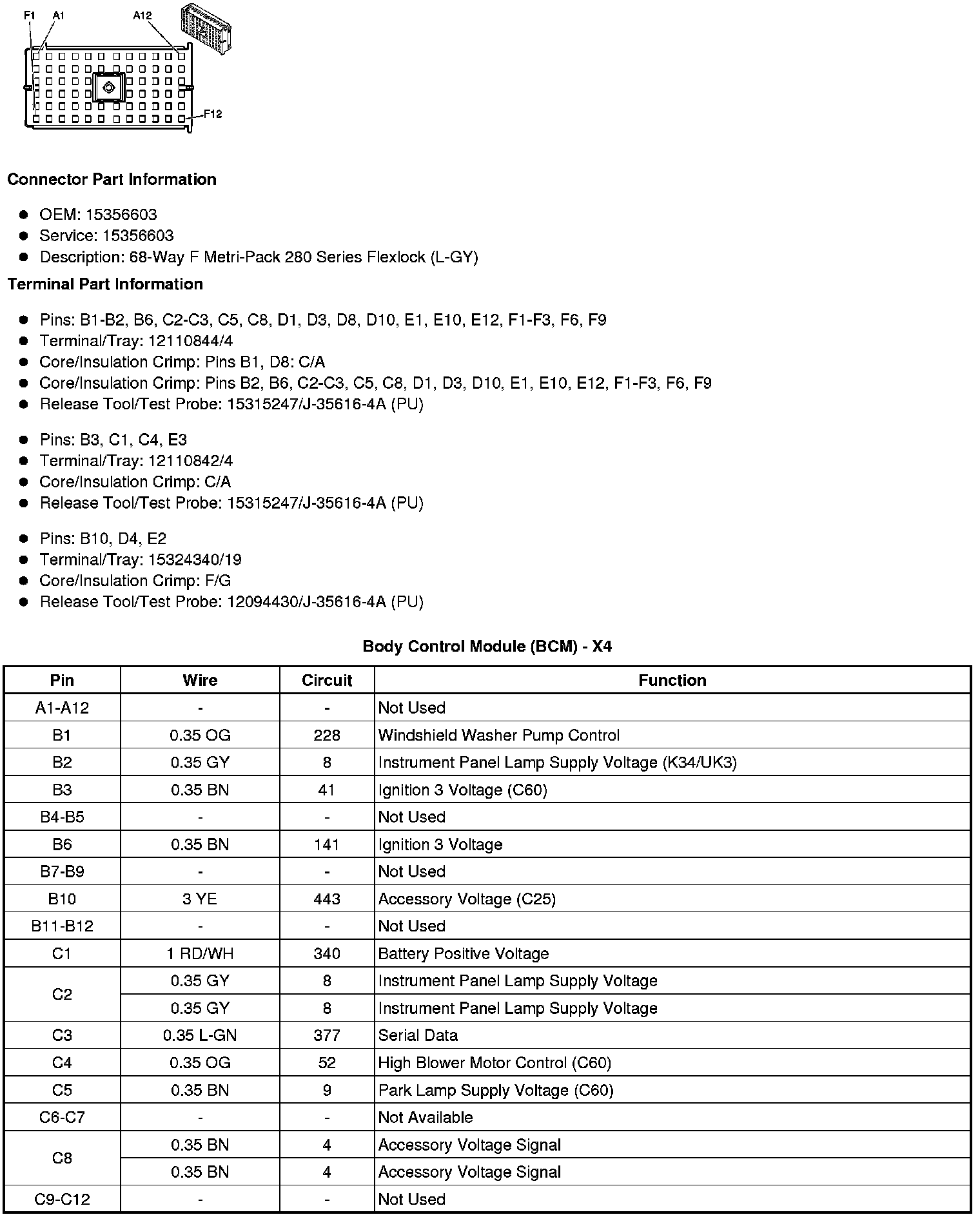

Body Control Module (BCM) - X4
