Engine Control Module: Diagrams



ENGINE CONTROL MODULE CONNECTORS

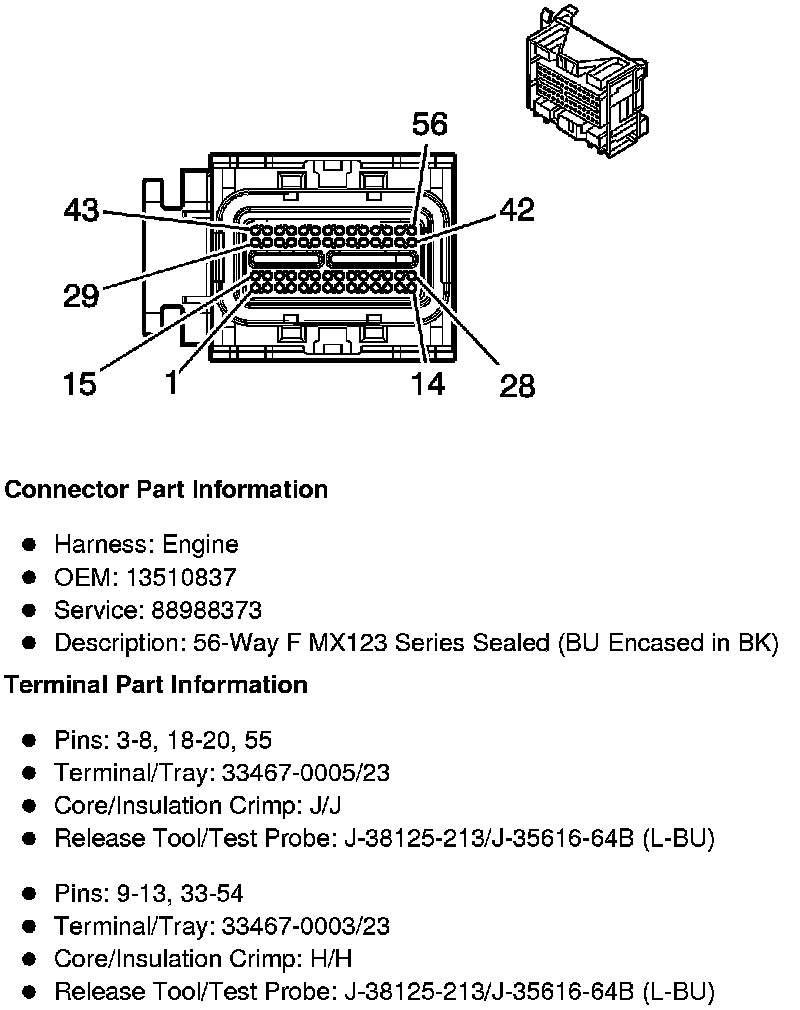

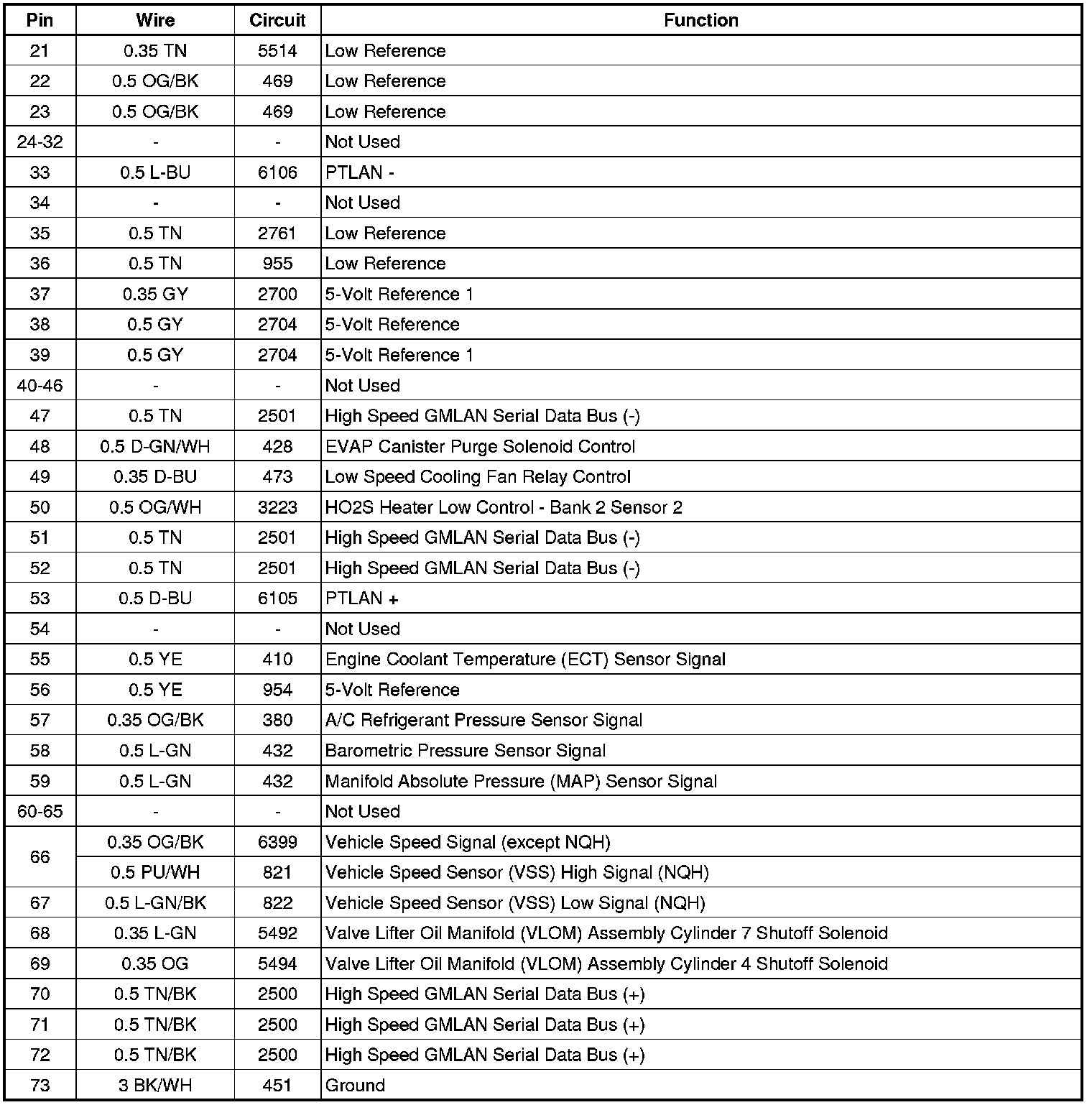

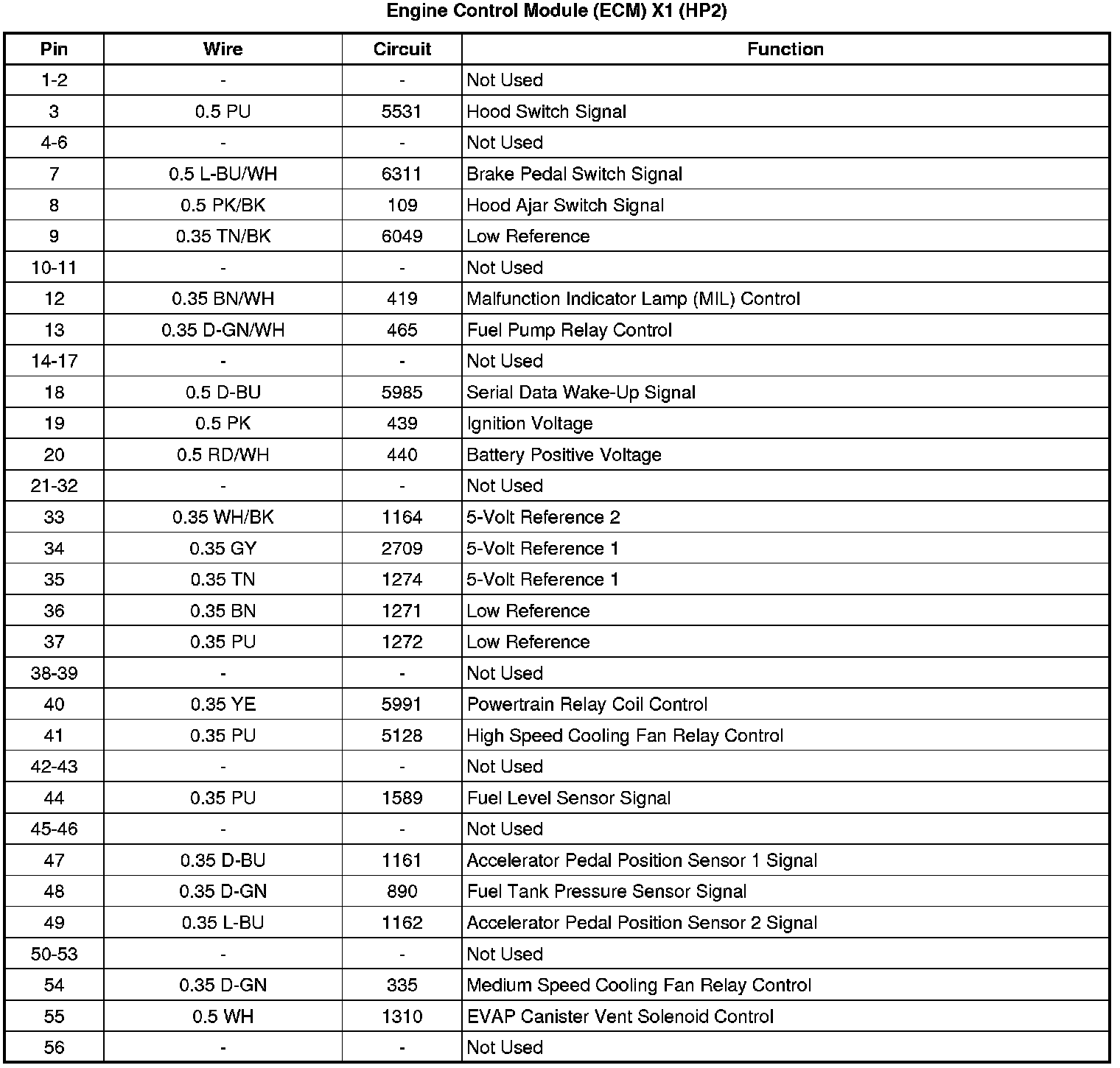

Connector X1

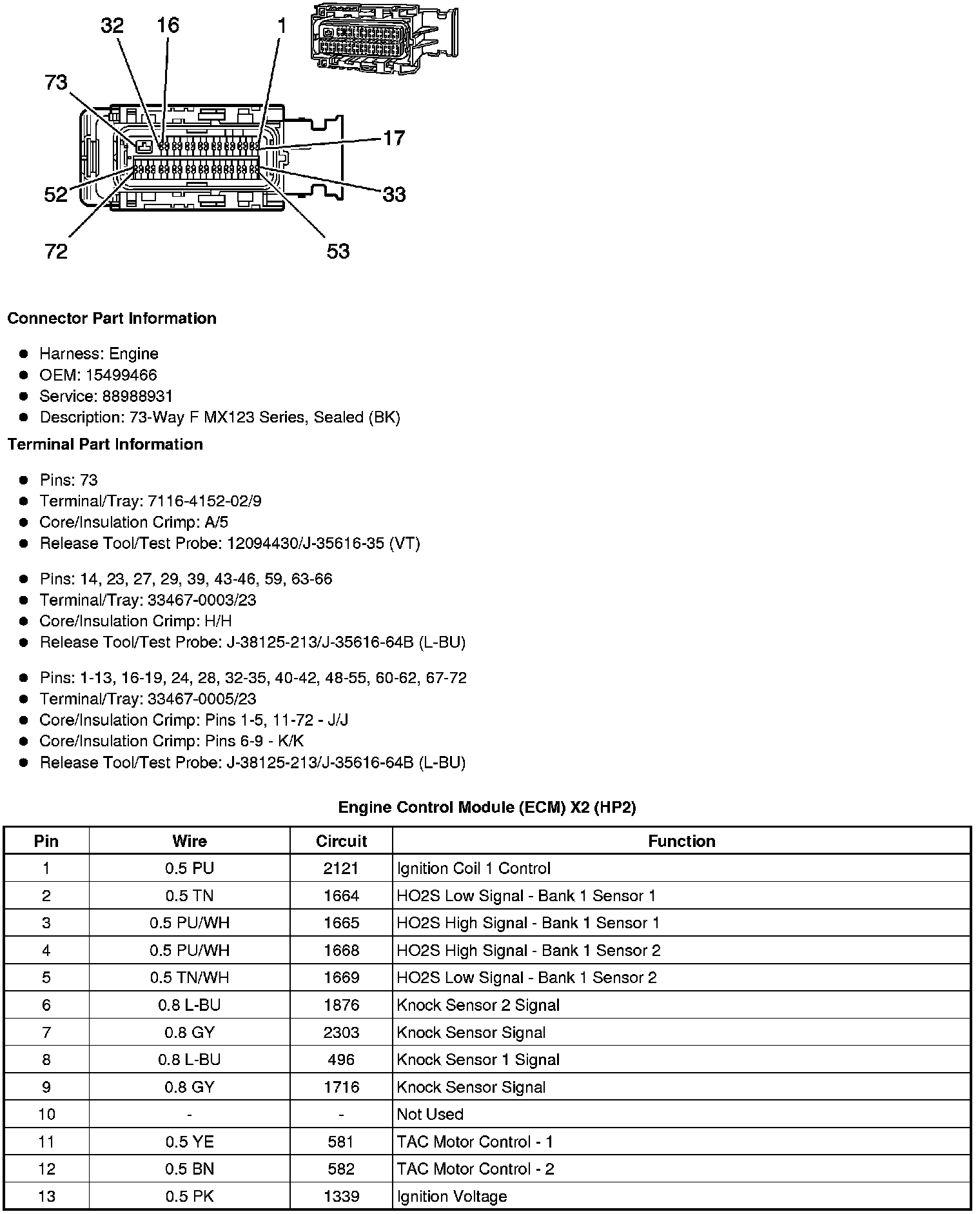

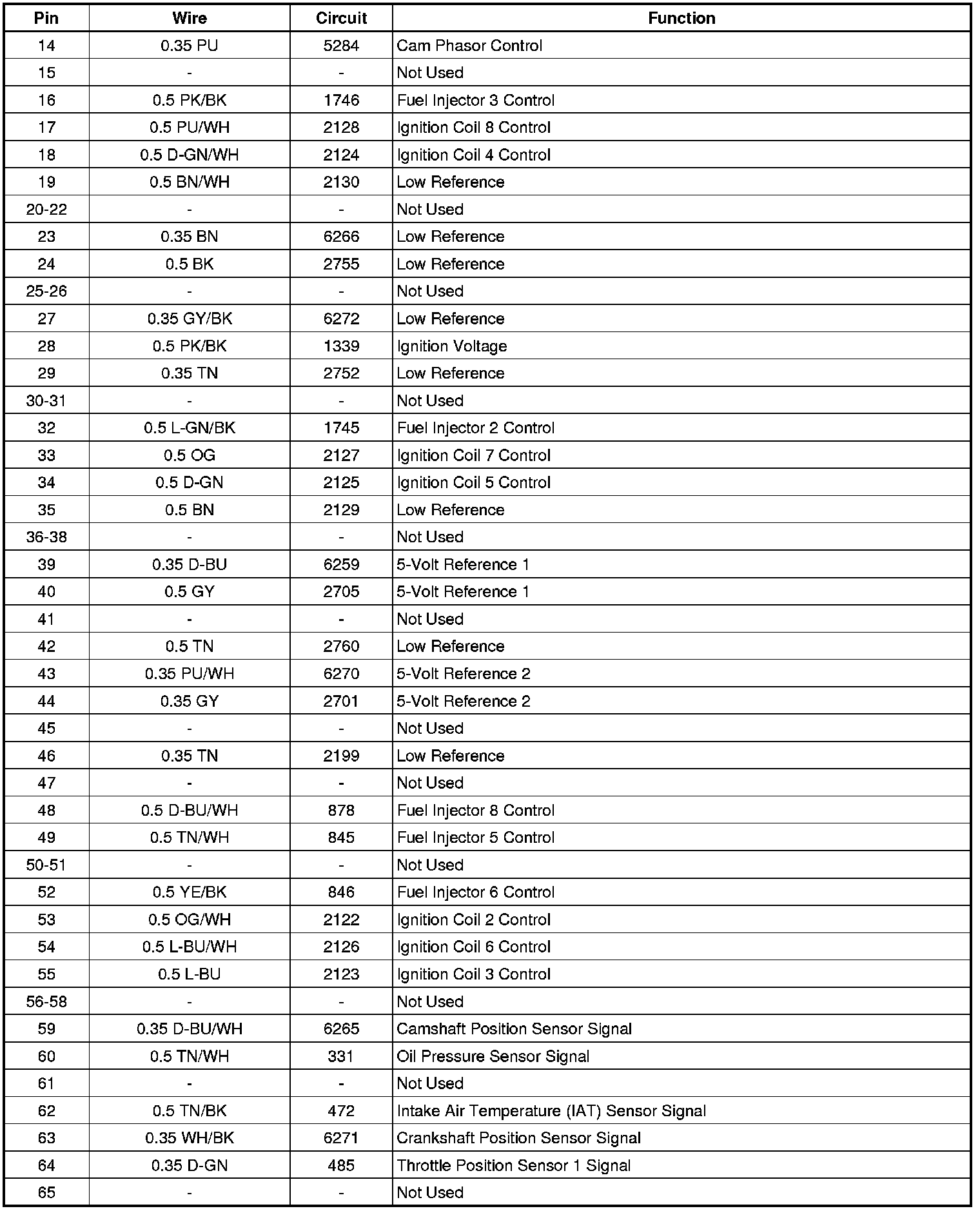

Connector X2

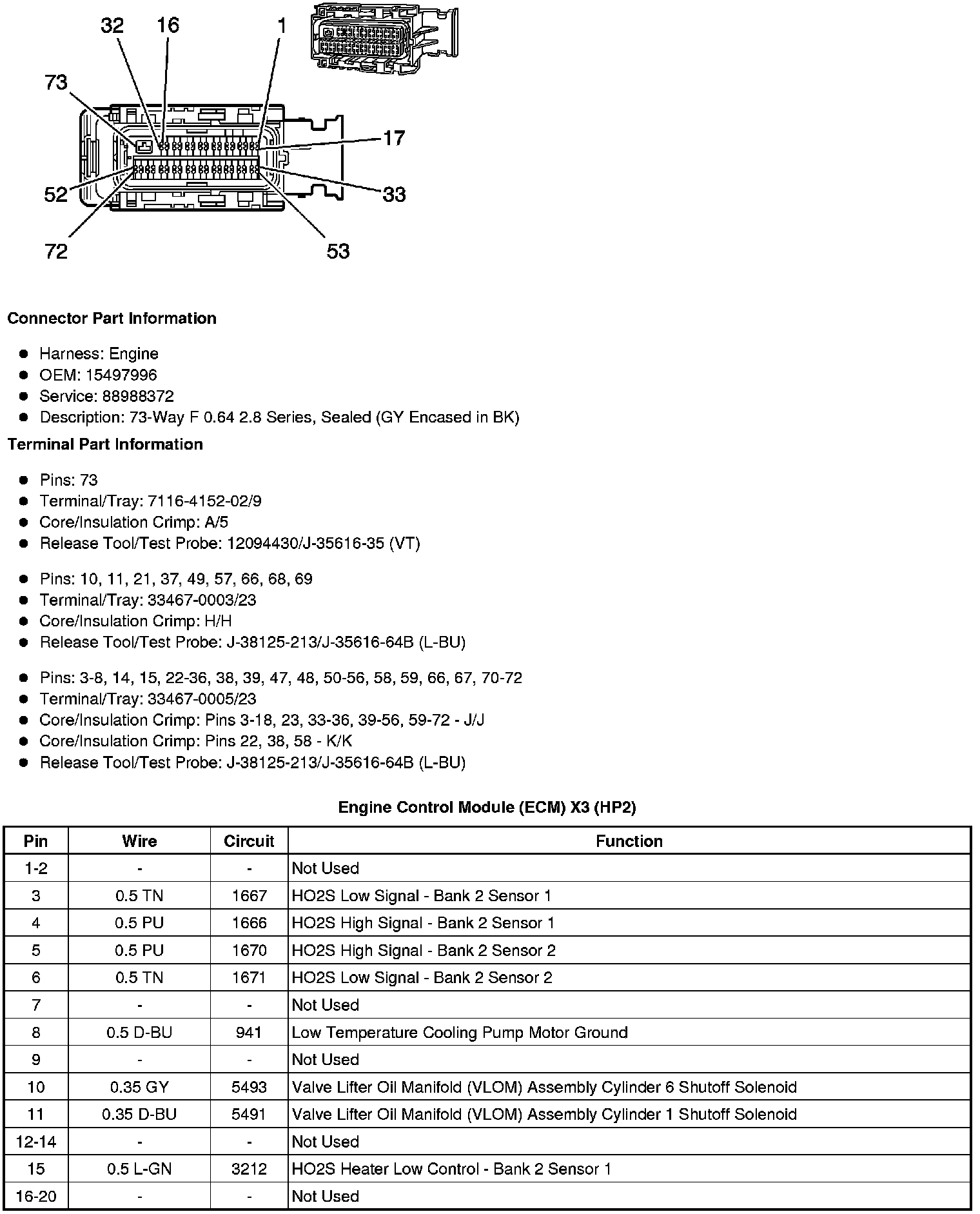

Connector X3
