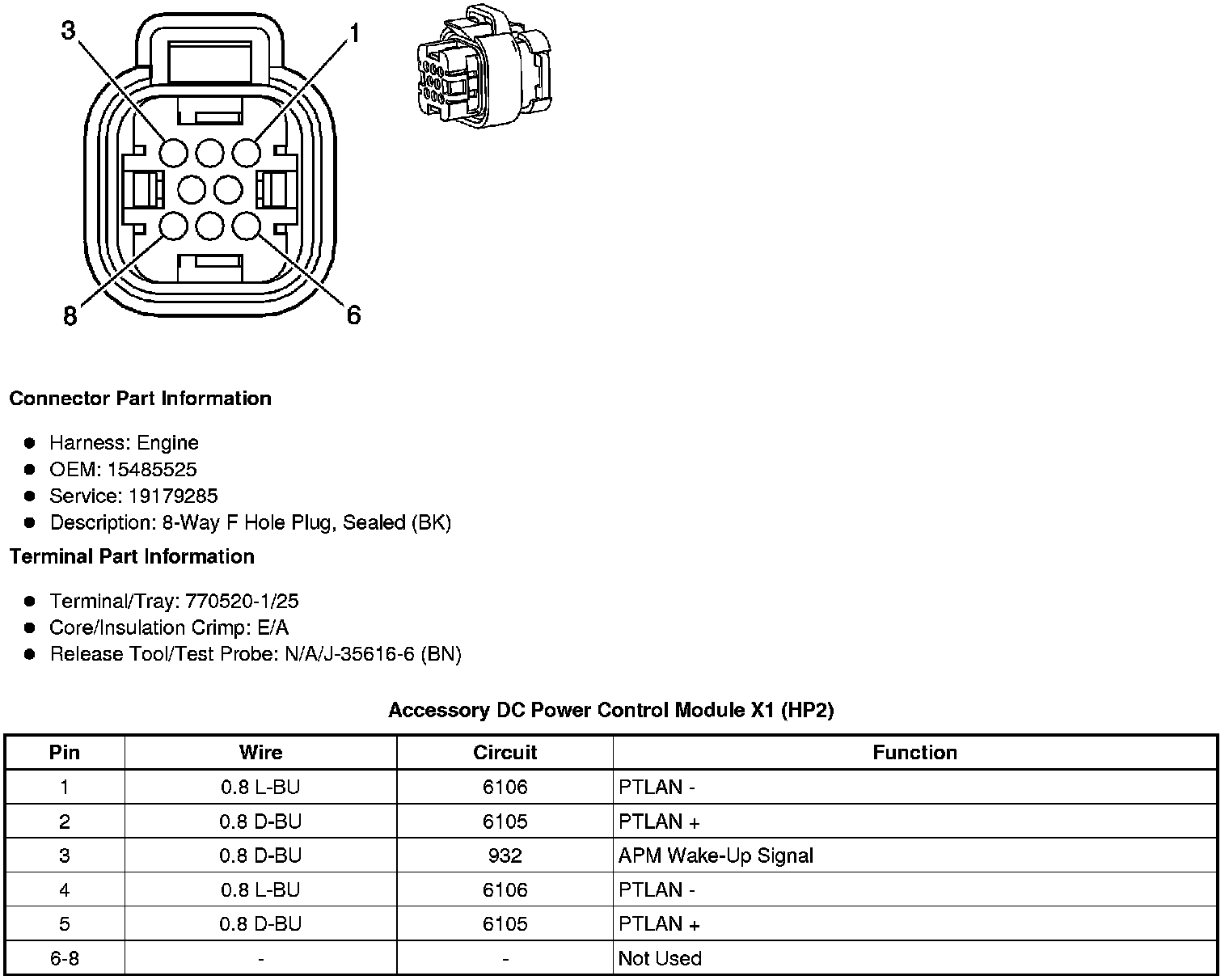

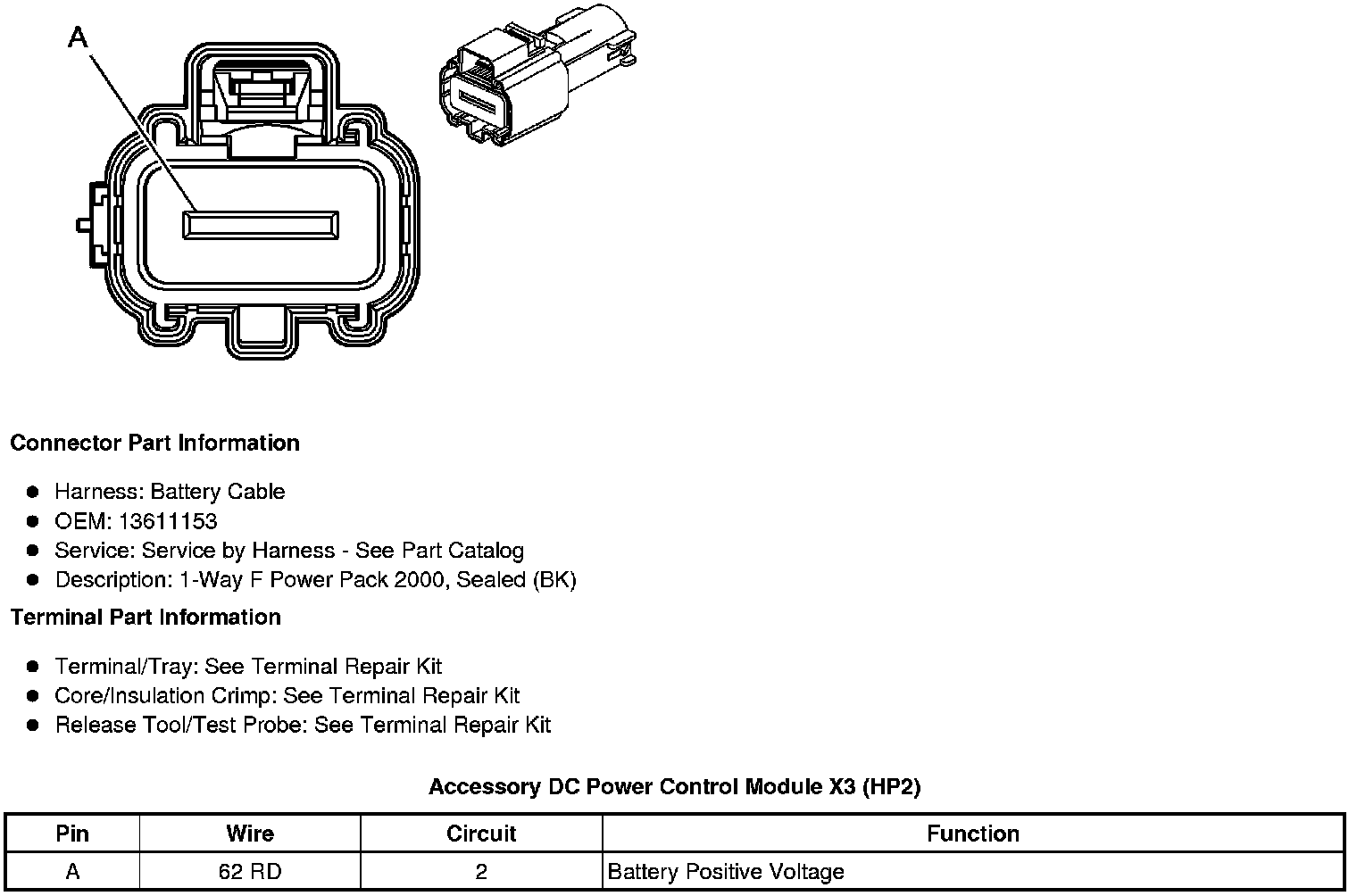

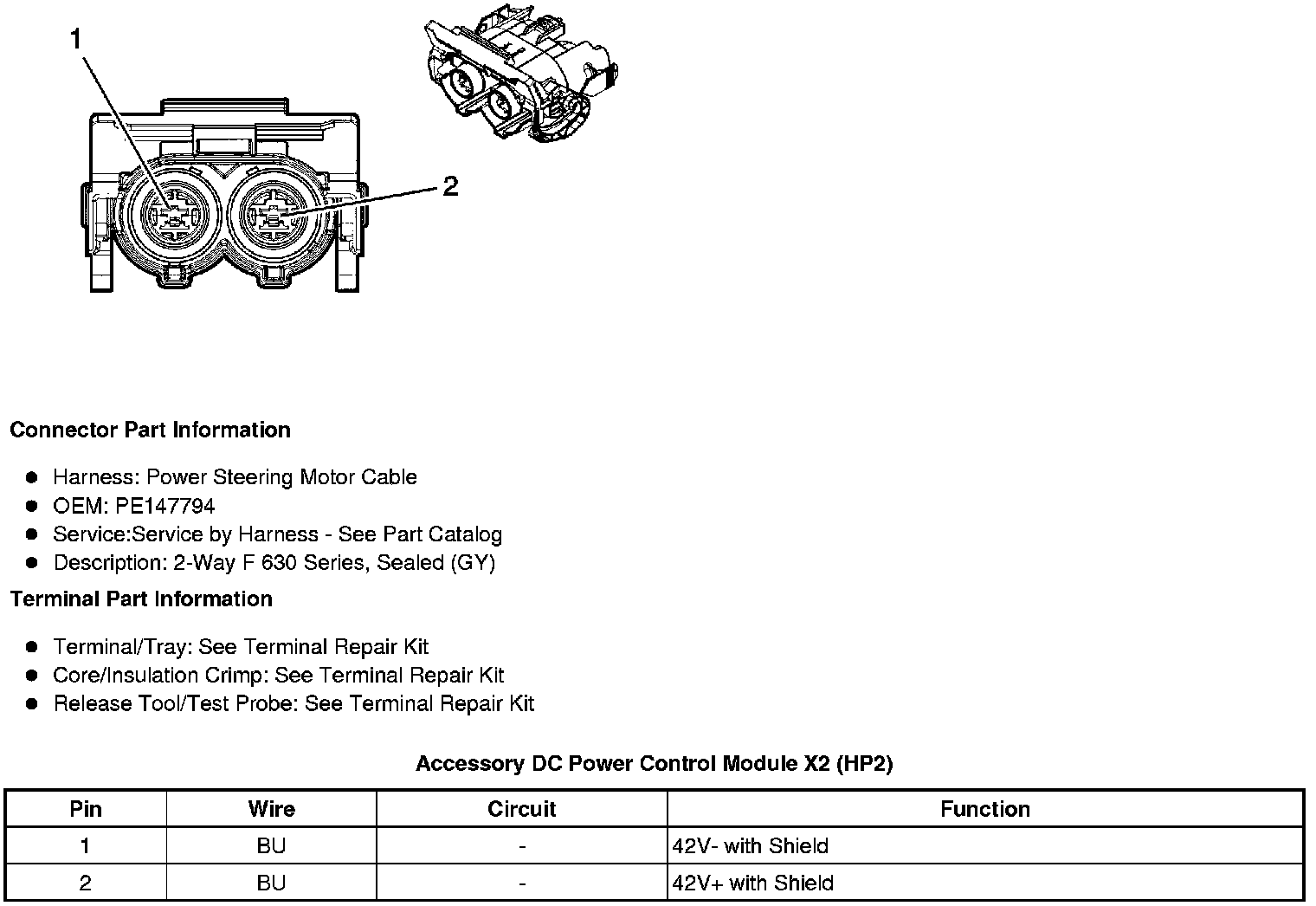

Home >> Chevrolet >> 2011 >> Silverado 1500 4WD V8-6.0L Hybrid >> Repair and Diagnosis >> Hybrid Drive Systems >> Power Control System >> Drive Motor Control Module >> Diagrams >> Accessory DC Power Control Module
