Drive Motor Generator Battery Control Module X2

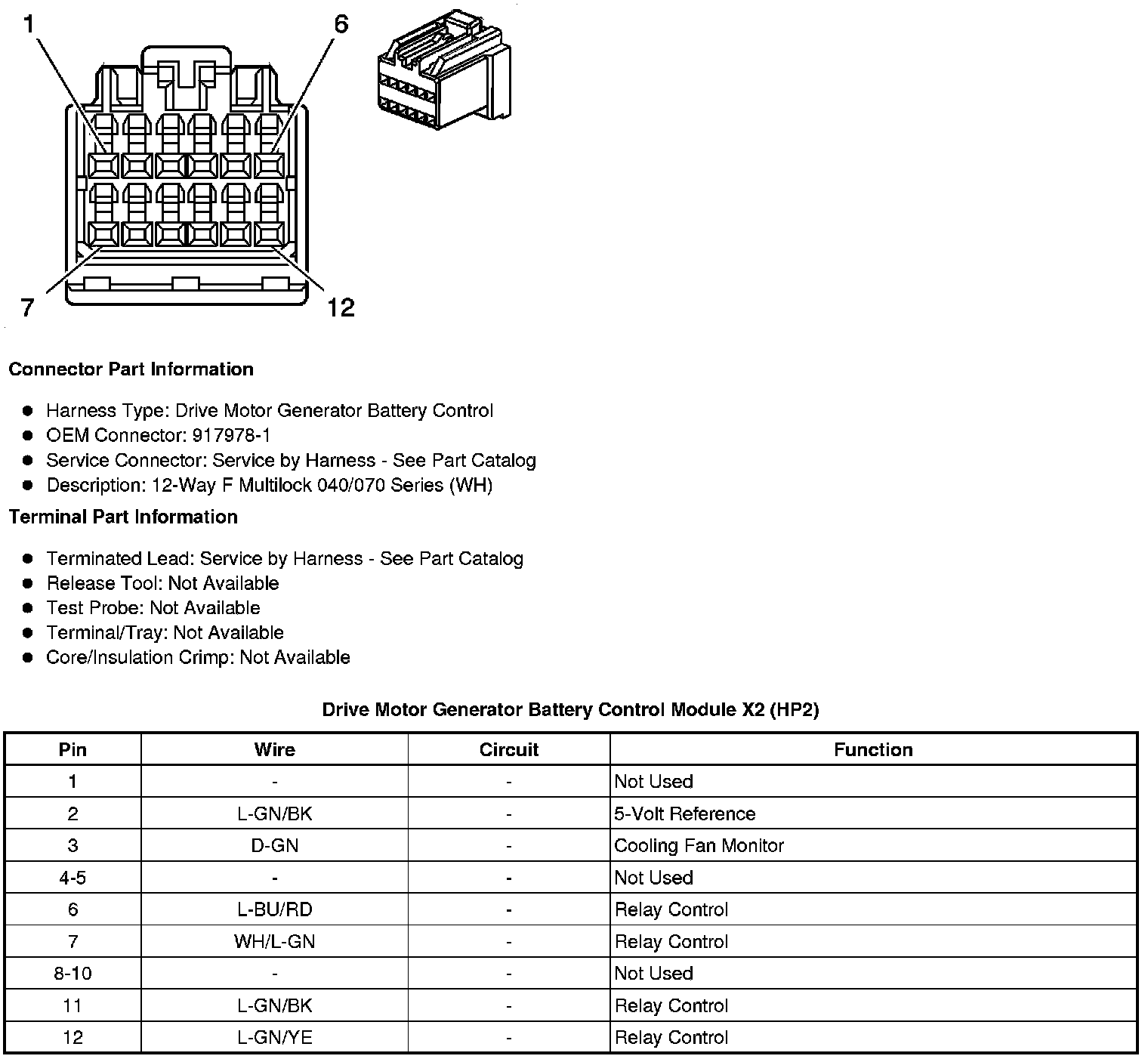

Drive Motor Generator Battery Control Module X2
Component Connector End Views
Drive Motor Generator Battery Control Module X2 (HP2)
