Drive Motor Generator Battery Control Module X3
Drive Motor Generator Battery Control Module X3
Component Connector End Views

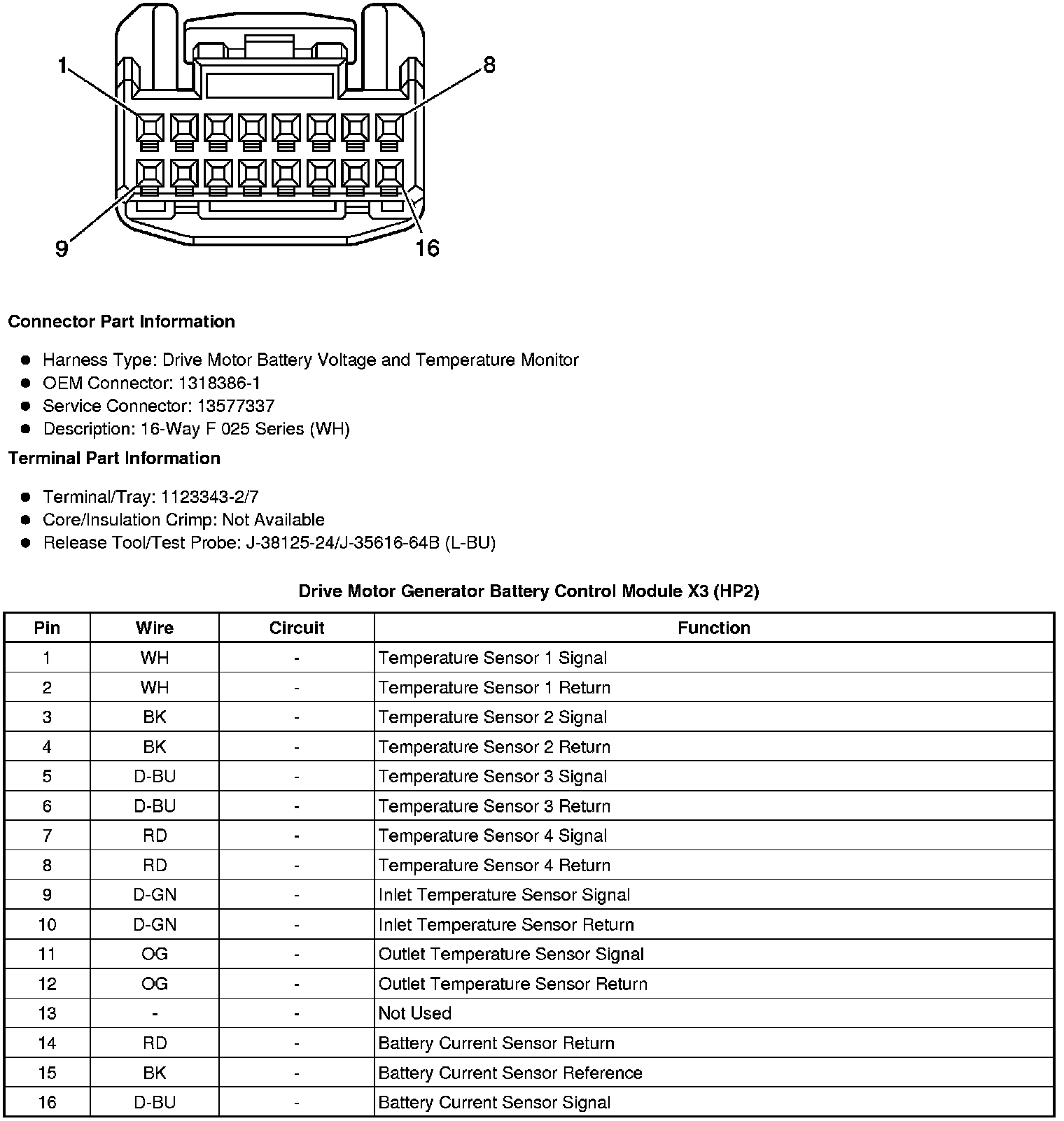

Drive Motor Generator Battery Control Module X3 (HP2)
