Drive Motor Generator Battery Control Module X4




Component Connector End Views

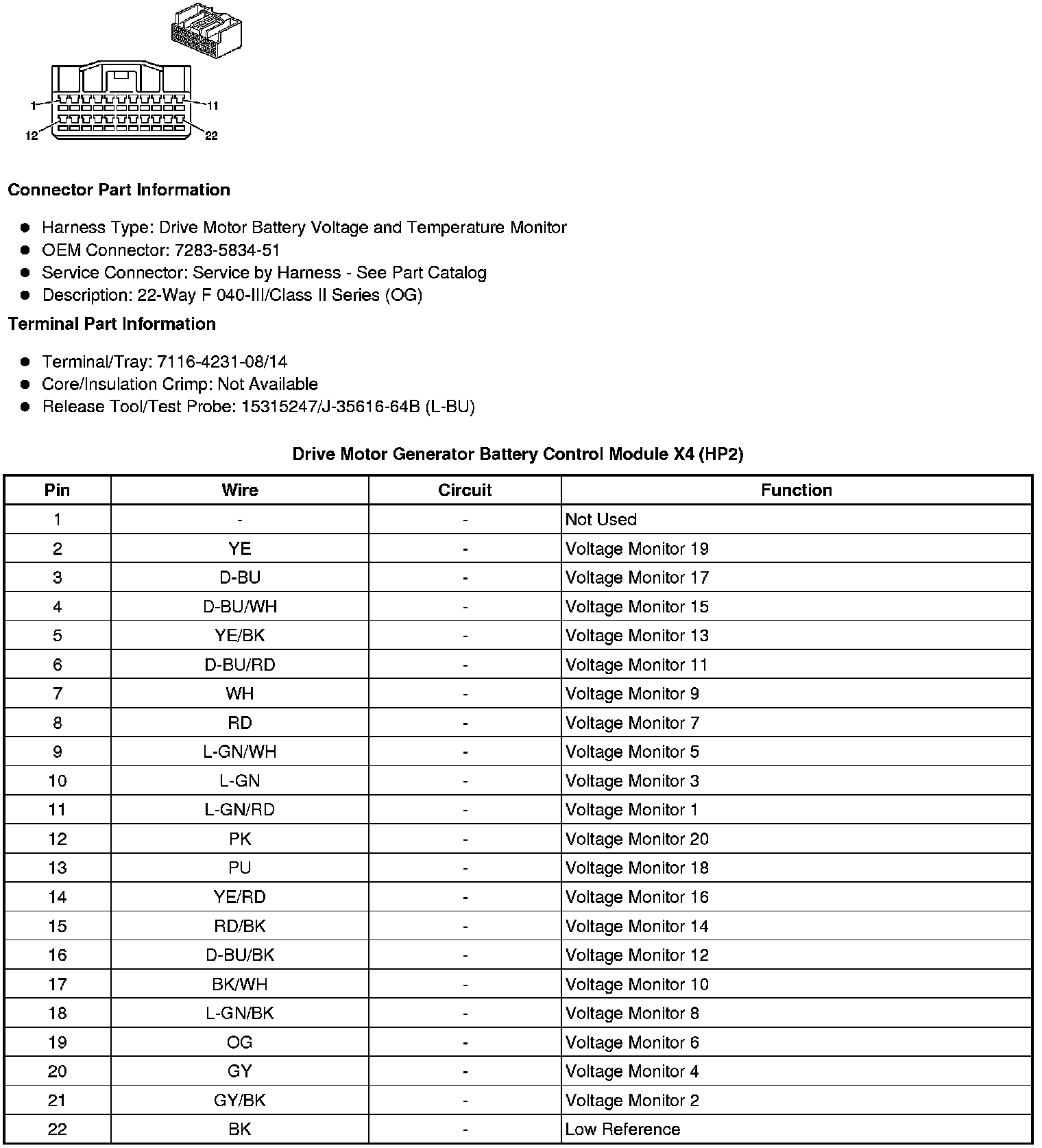

Drive Motor Generator Battery Control Module X4 (HP2)
