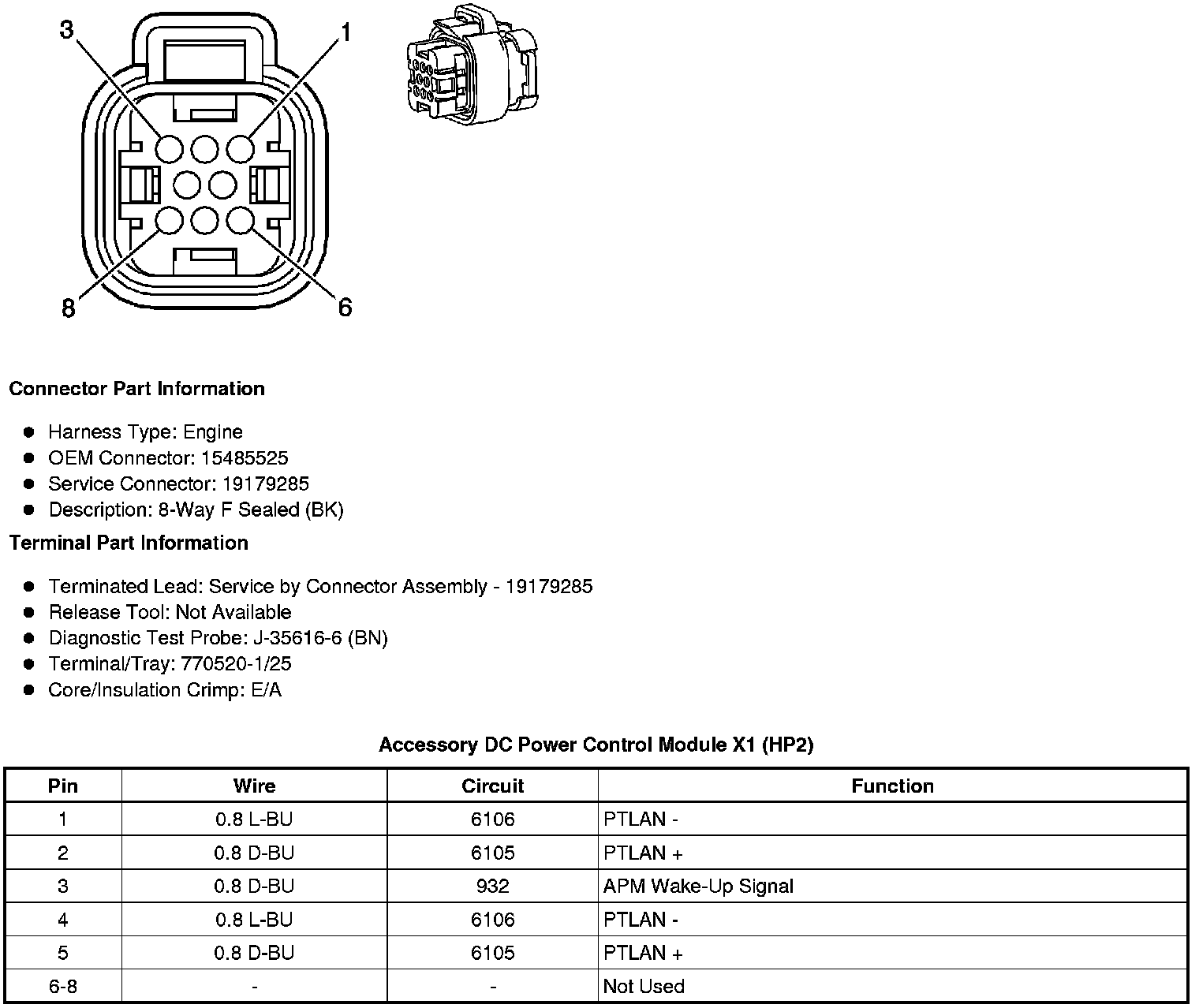

Accessory DC Power Control Module X1




Component Connector End Views

Accessory DC Power Control Module X1 (HP2)
