Accessory DC Power Control Module X3

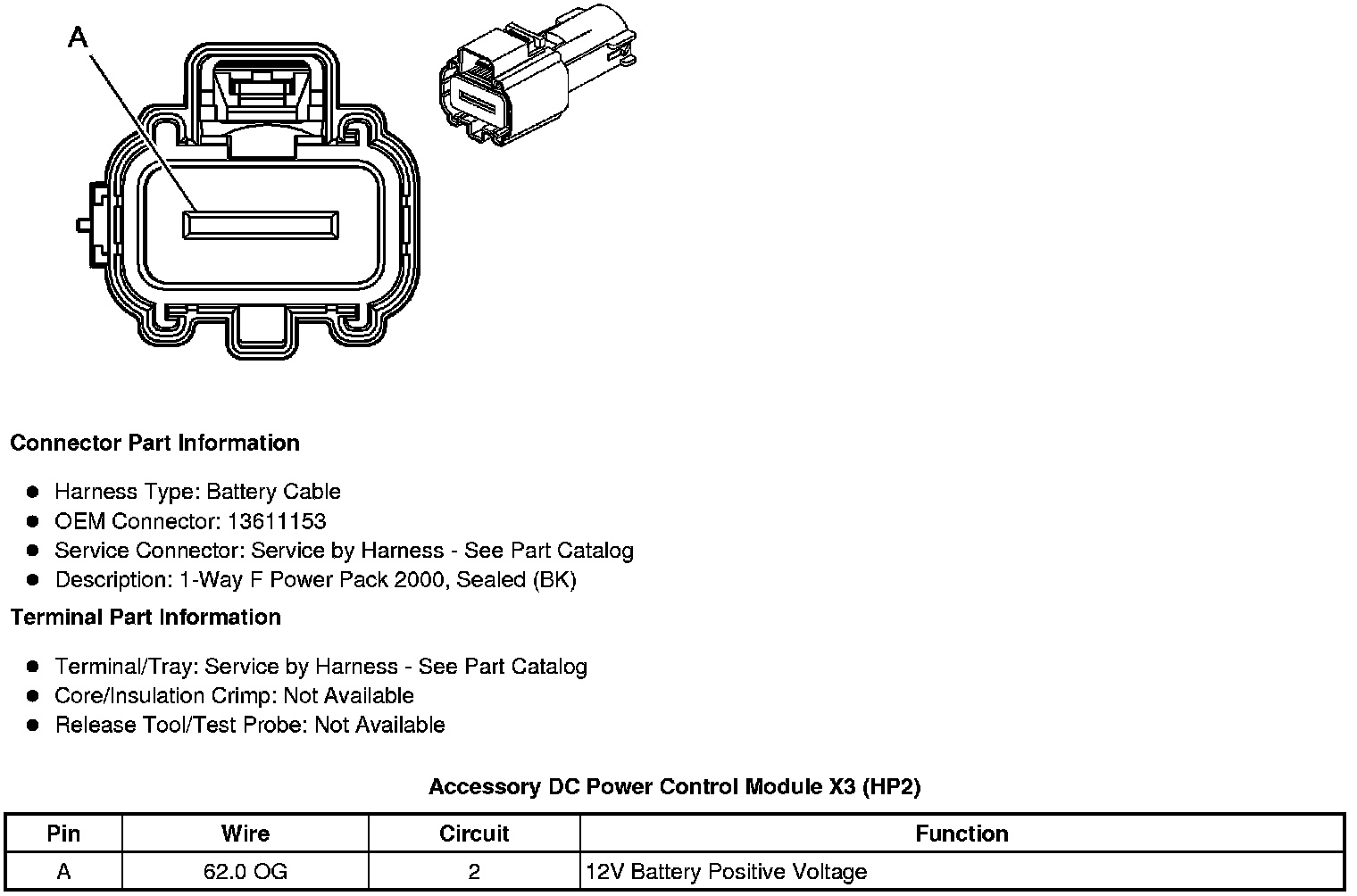

Component Connector End Views

Accessory DC Power Control Module X3 (HP2)
