Home
>>
Dodge and Ram
>>
1987
>>
Omni L4-135 2.2L SOHC Turbo
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Powertrain Management
>>
Engine Control Module
>>
Power Module Connector
Power Module Connector

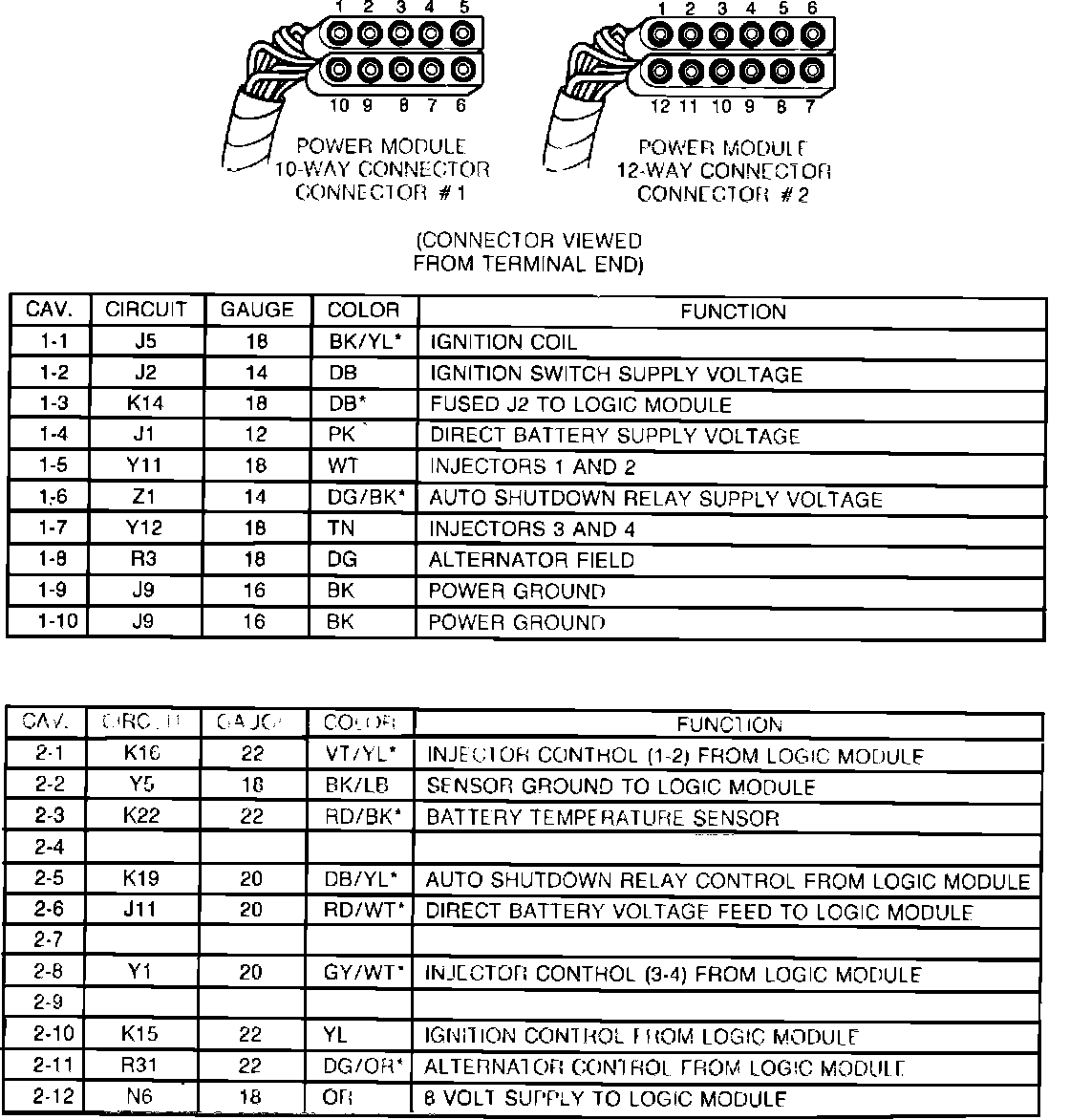

POWER MODULE CONNECTOR:
