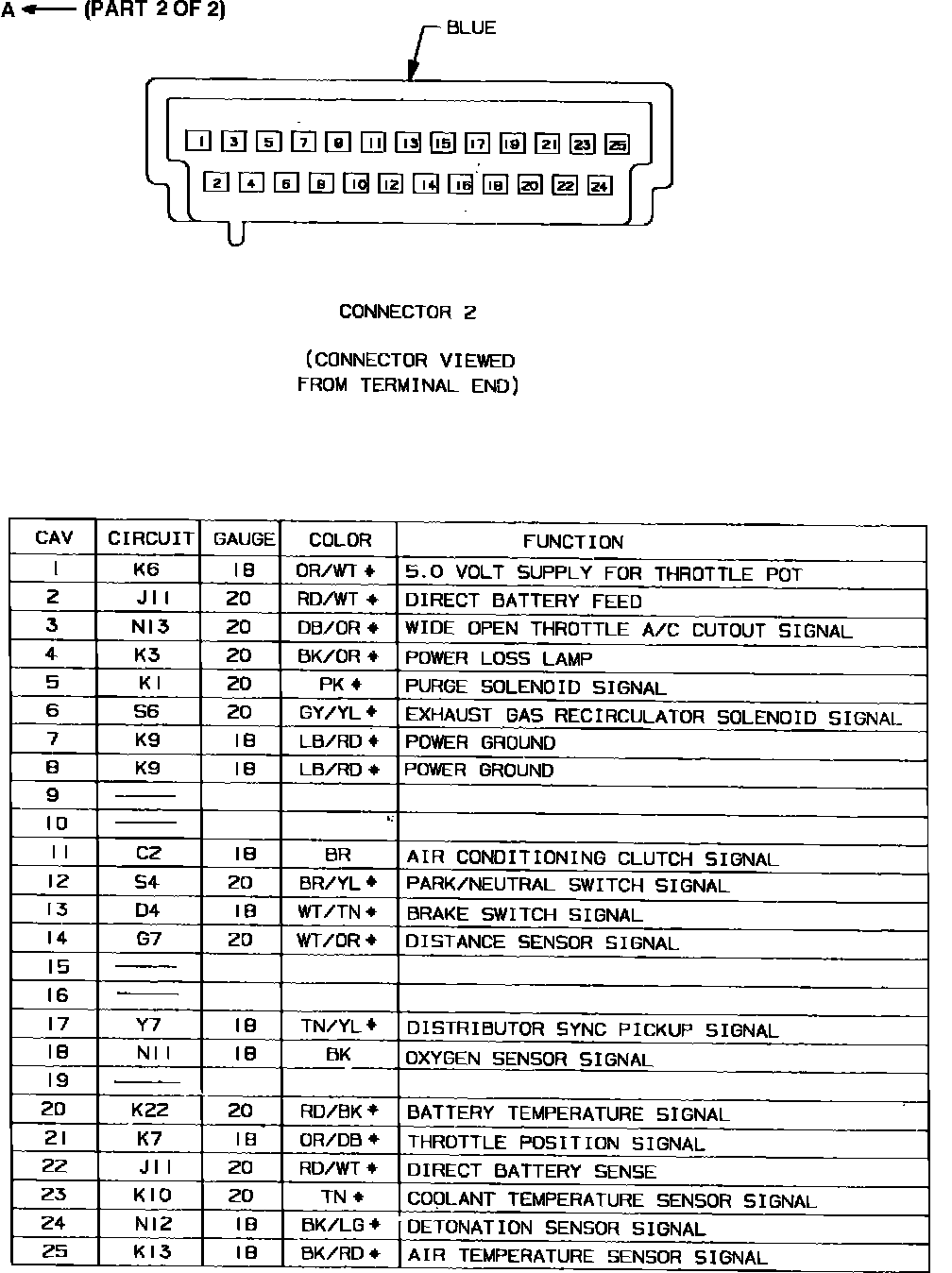

Home >> Dodge and Ram >> 1987 >> Omni L4-135 2.2L SOHC Turbo >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Engine Control Module >> Diagrams >> Connector Views >> Logic Module Connector >> Part 2 of 2
