Connector Views

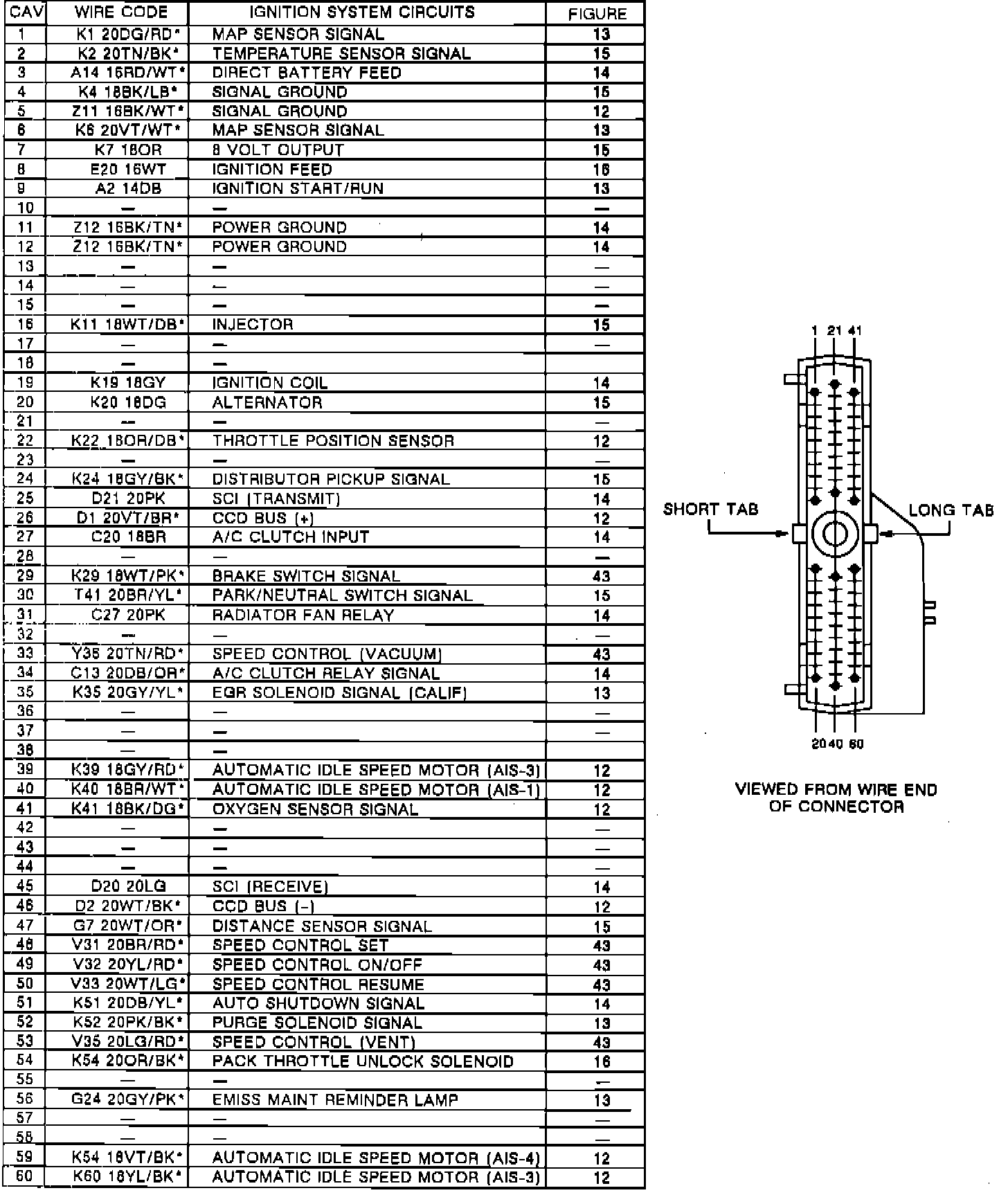

60-Way Connector Pinout Identification:



Single Board Engine Controller Connector:
