Engine Control Module

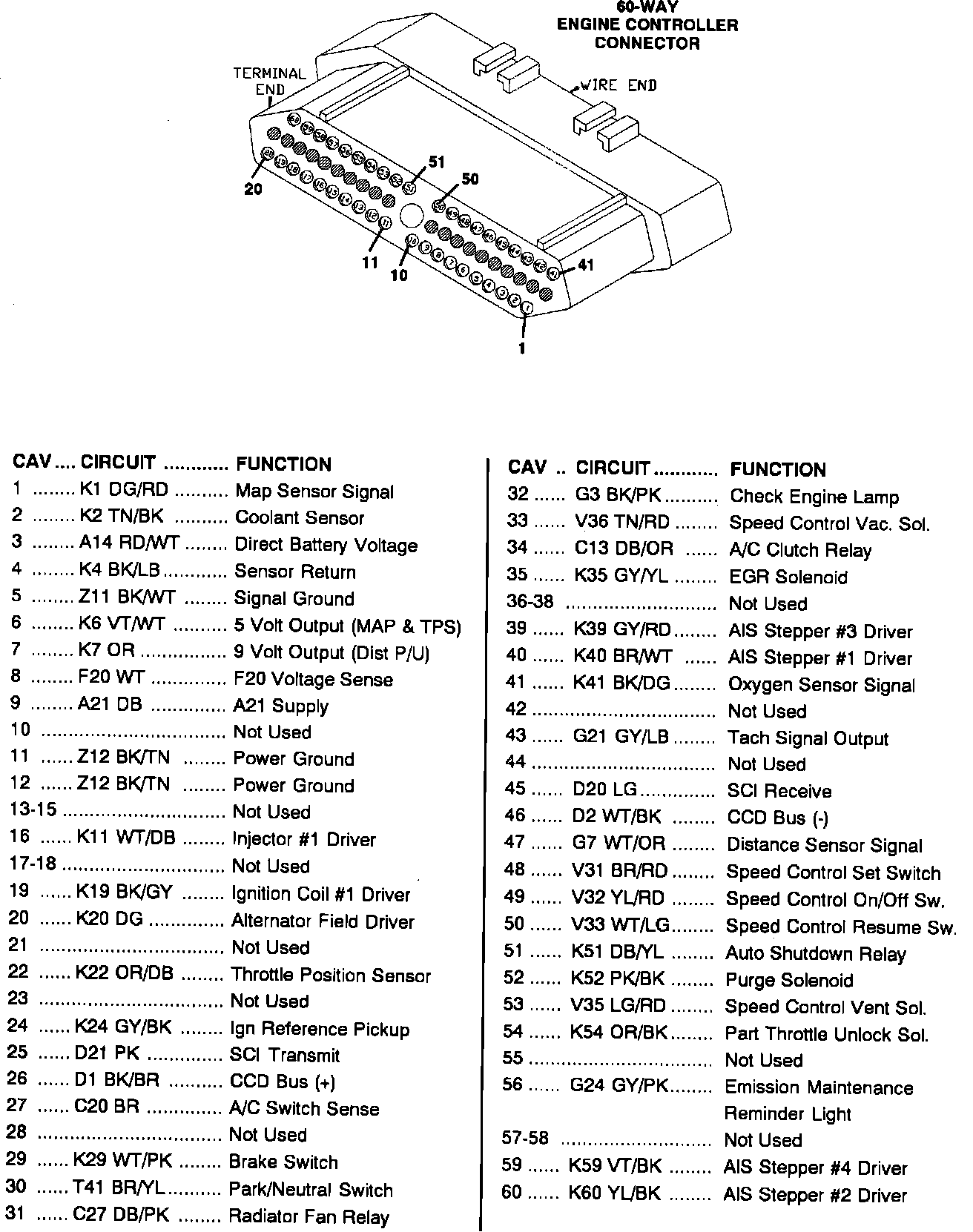

60-Way Connector Pinout Identification:

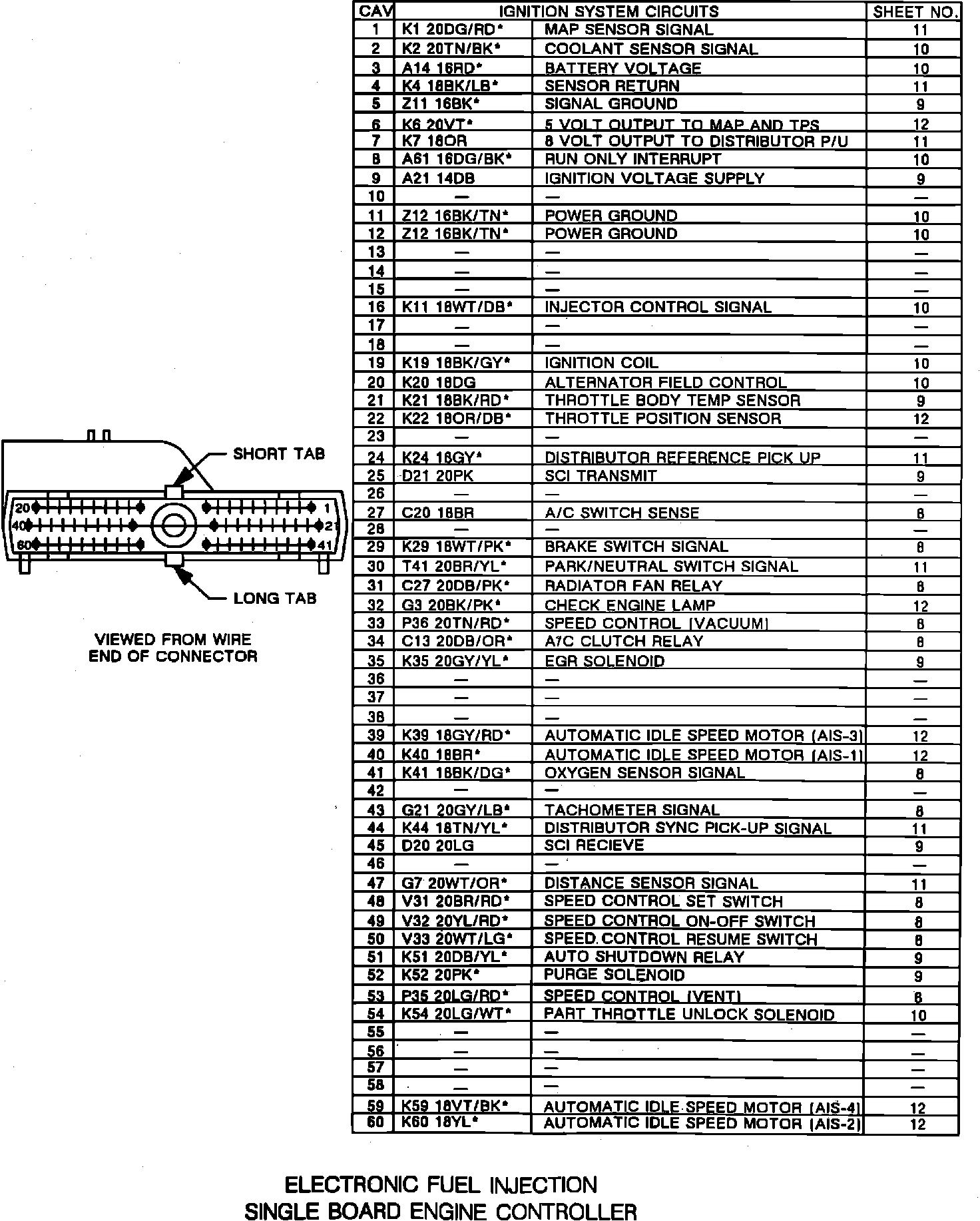

Electronic Fuel Injection-Single Board Engine Controller:
