Home >> Dodge and Ram >> 1994 >> B350 1 Ton Van V8-318 5.2L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Electronic Brake Control Module >> ABS Control Module Connector

ABS Control Module Connector

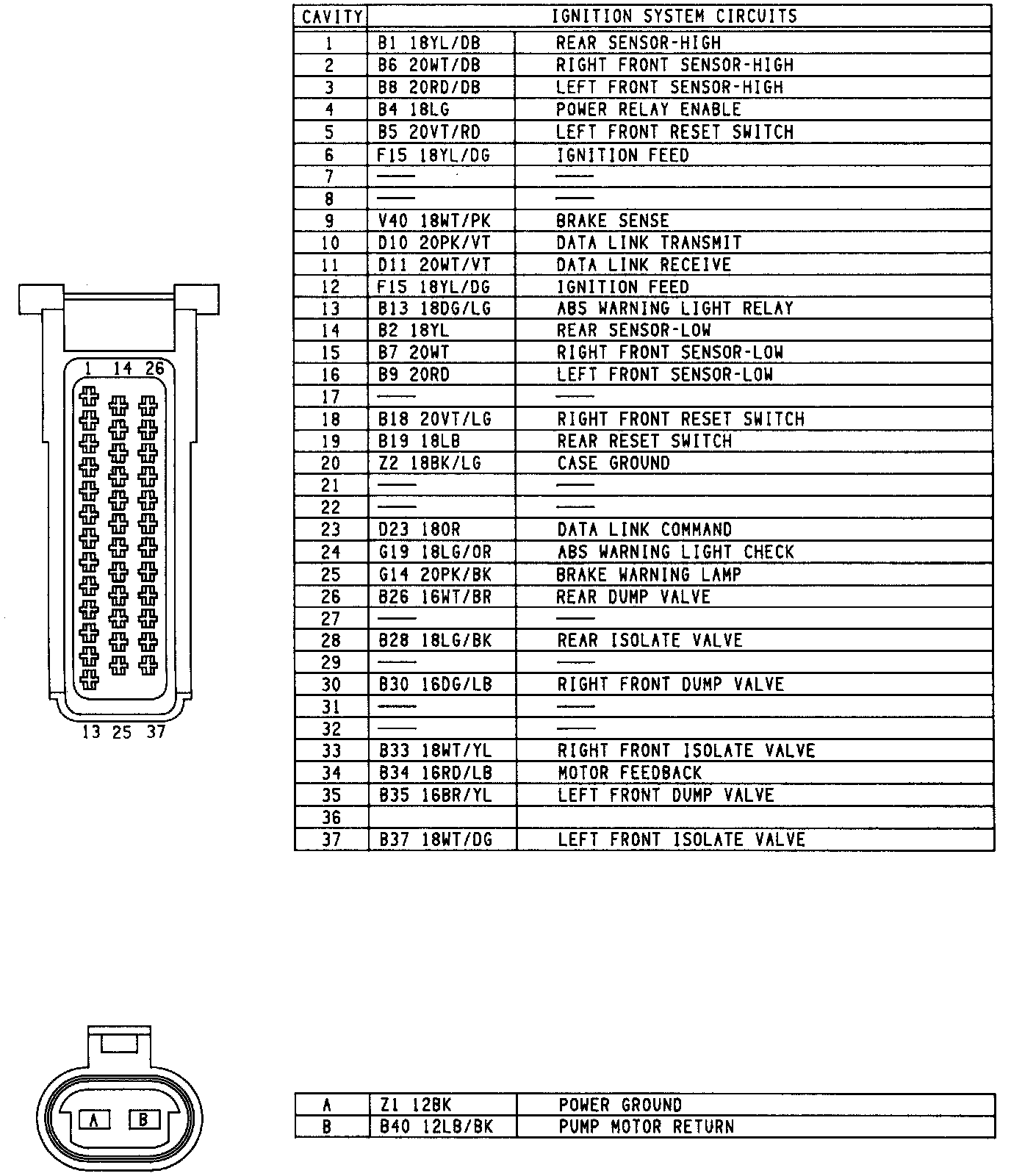

A.B.S. Control Module Connector:
