Home >> Dodge and Ram >> 2000 >> RAM 1500 Van V6-3.9L VIN X >> Repair and Diagnosis >> Diagrams >> Connector Views >> Engine Control Module

Engine Control Module

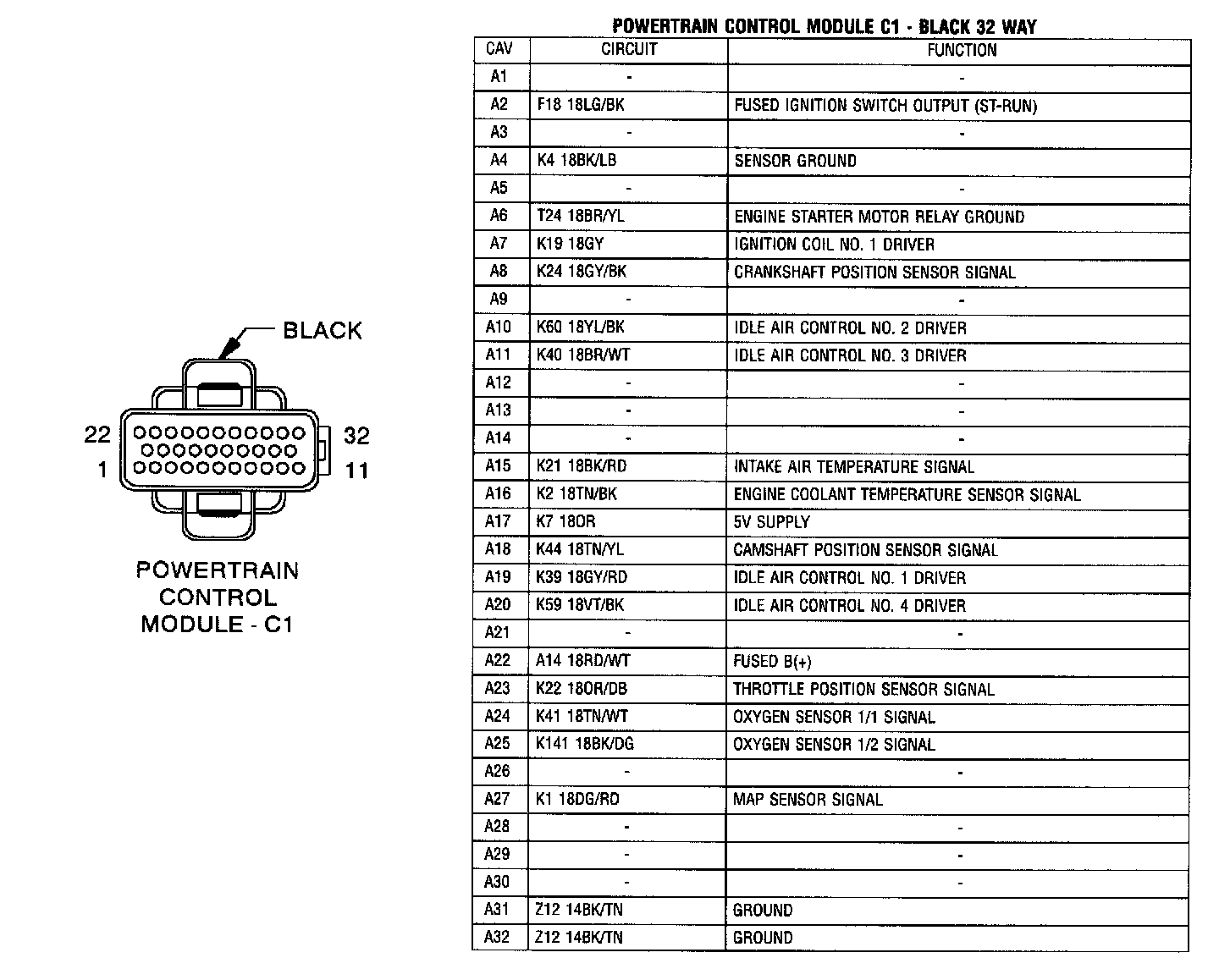

Powertrain Control Module C1:

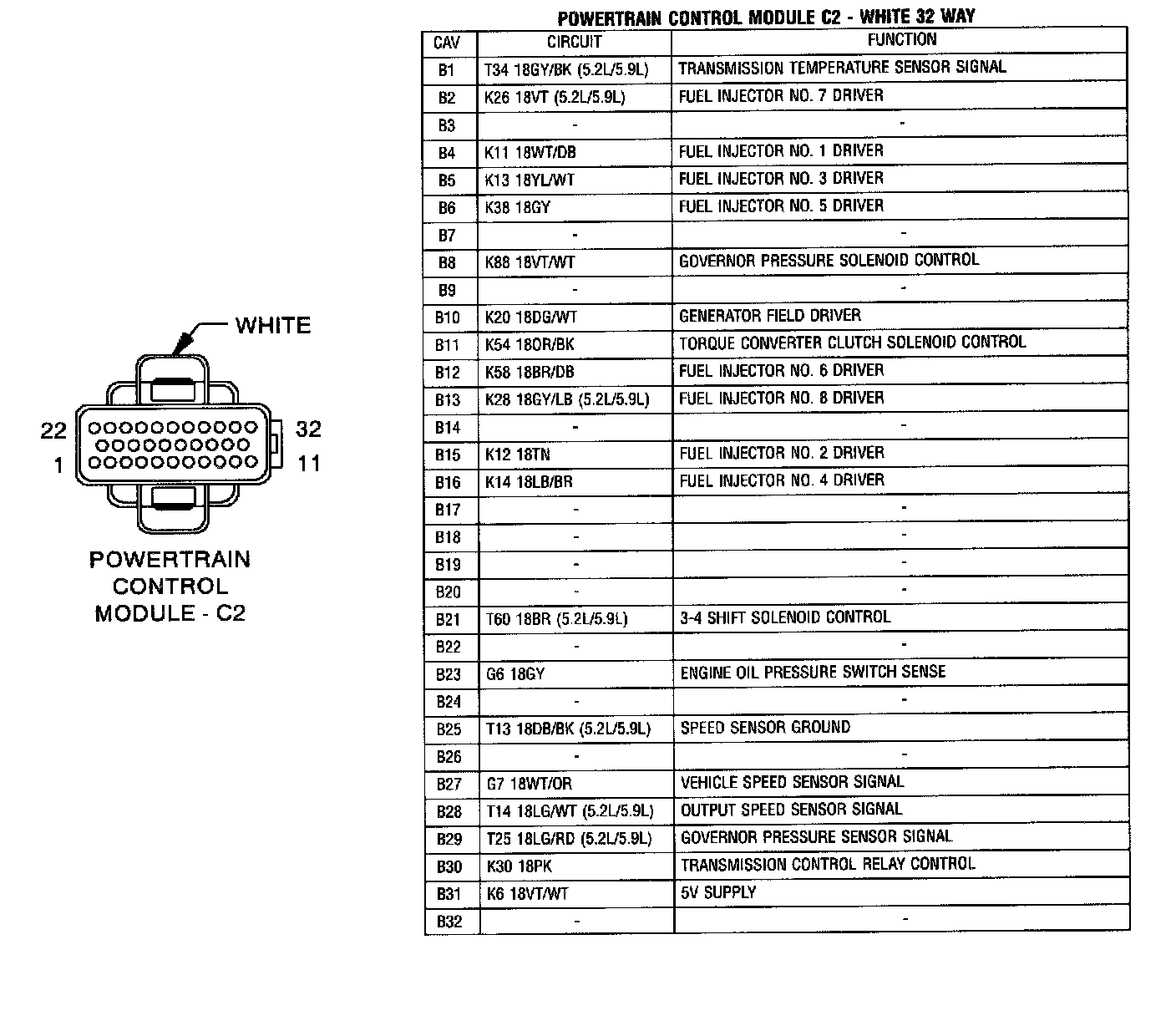

Powertrain Control Module C2:

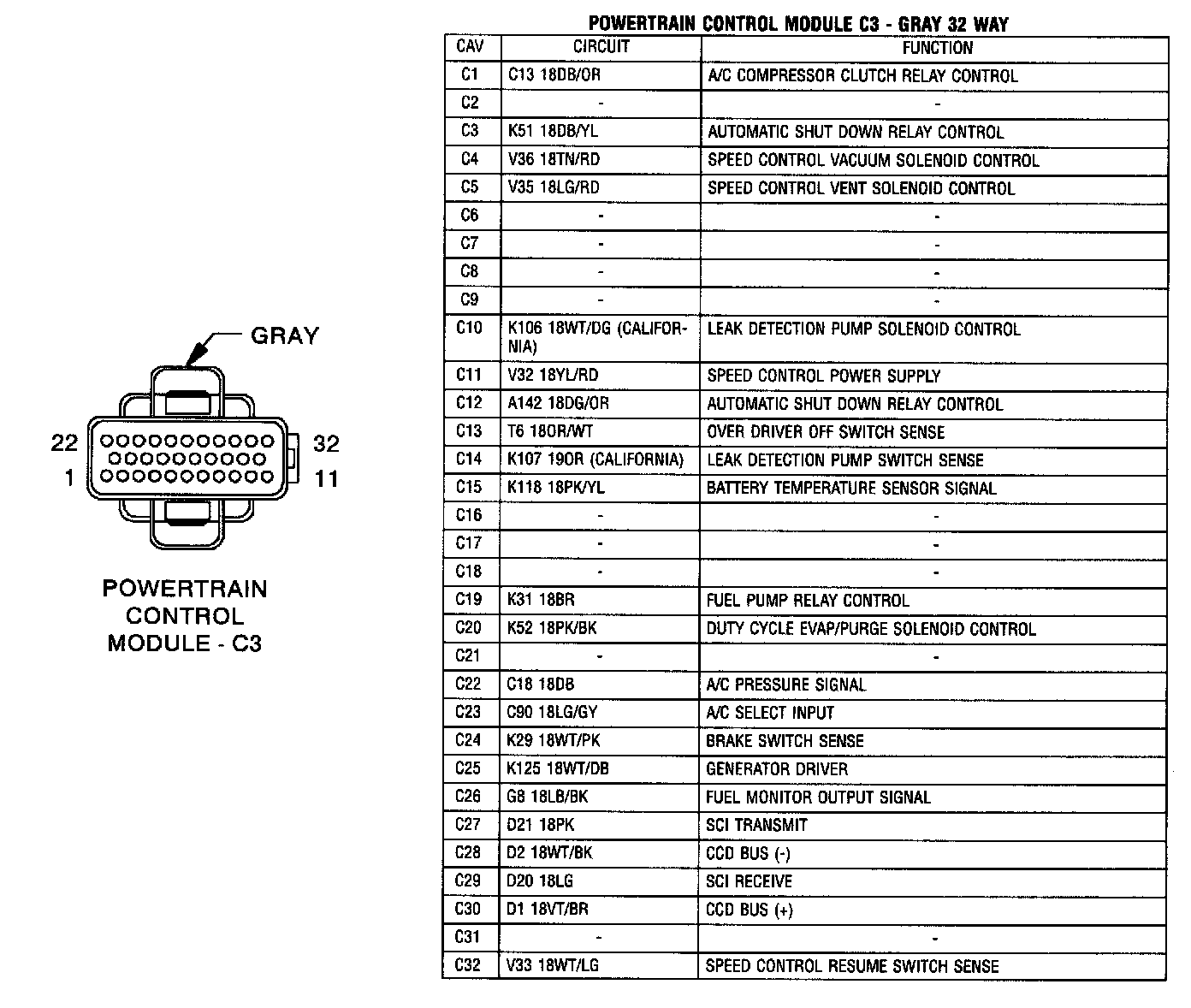

Powertrain Control Module C3:
