Connector Views




Powertrain Control Module

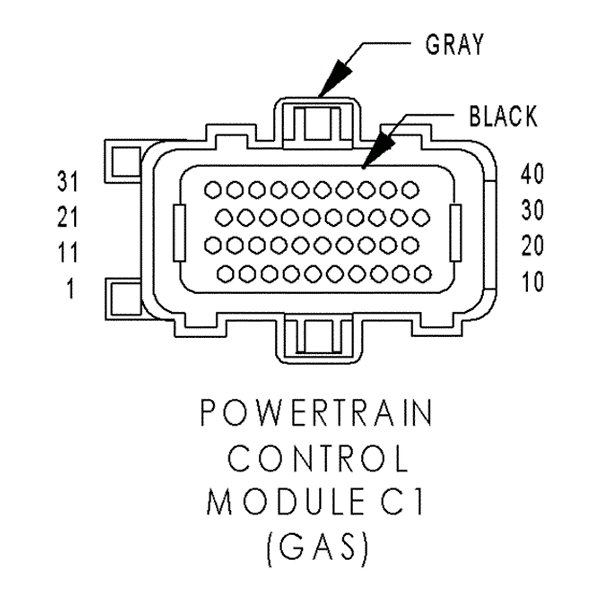

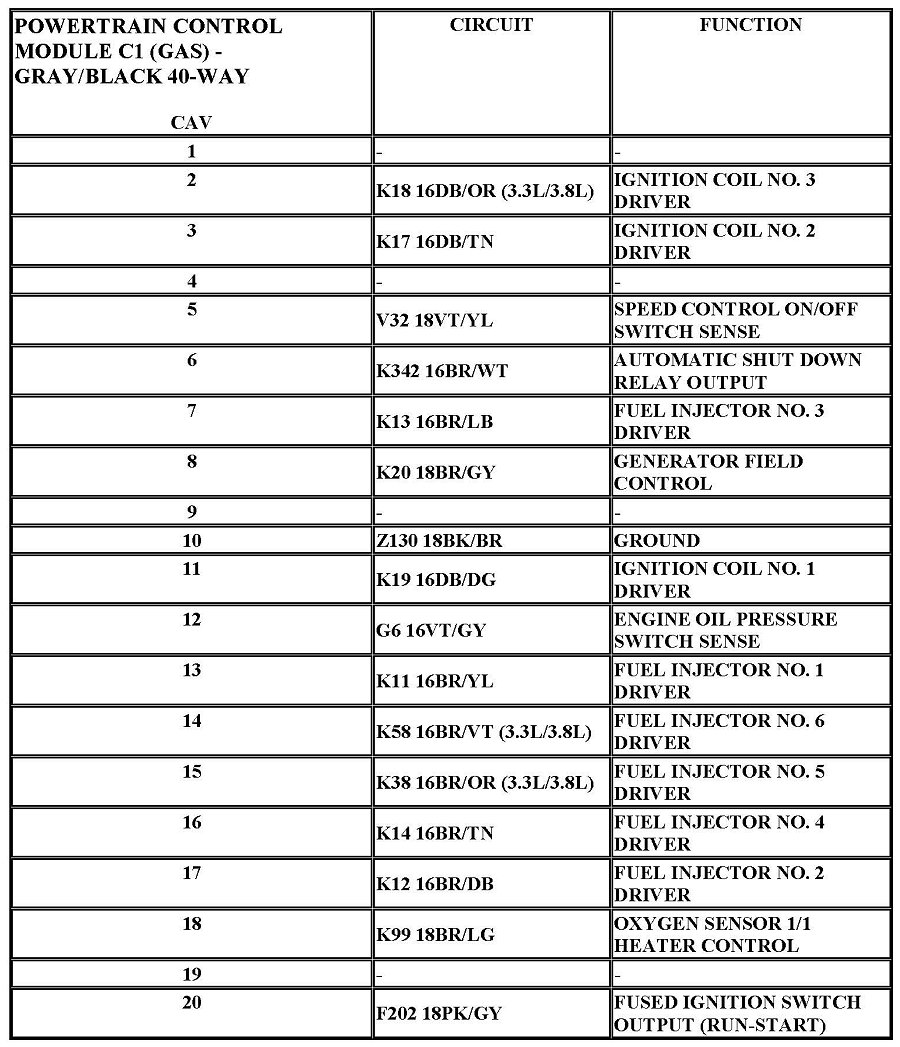

C1 - Gray/Black 40-Way (1 Of 3):

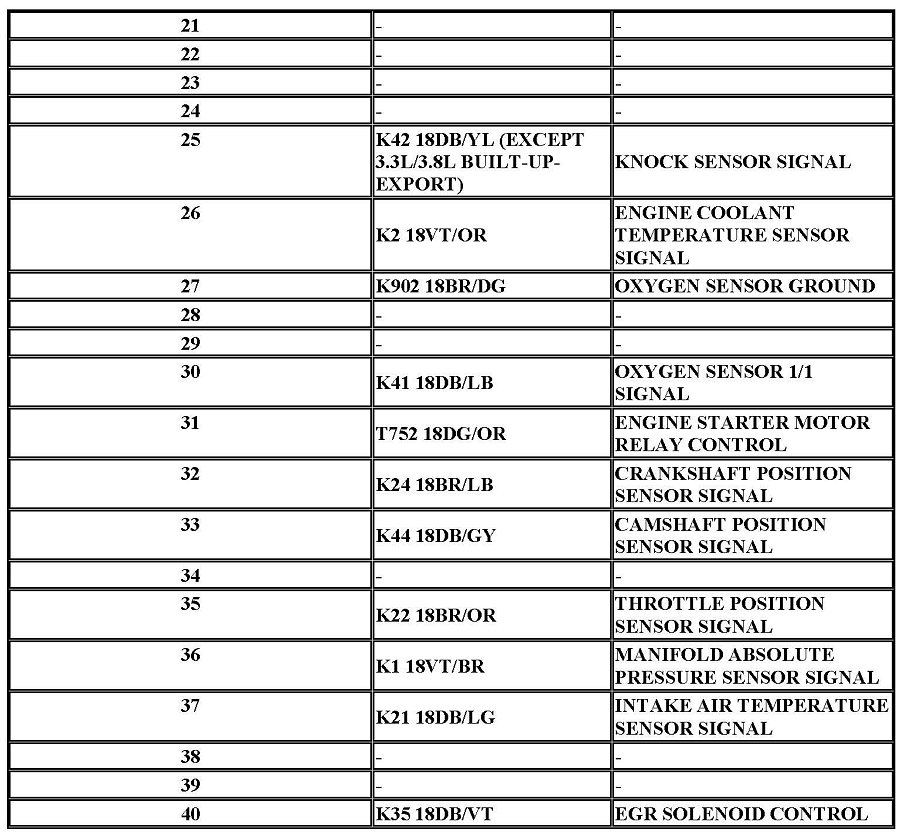

C1 - Gray/Black 40-Way (2 Of 3):




C1 - Gray/Black 40-Way (3 Of 3):

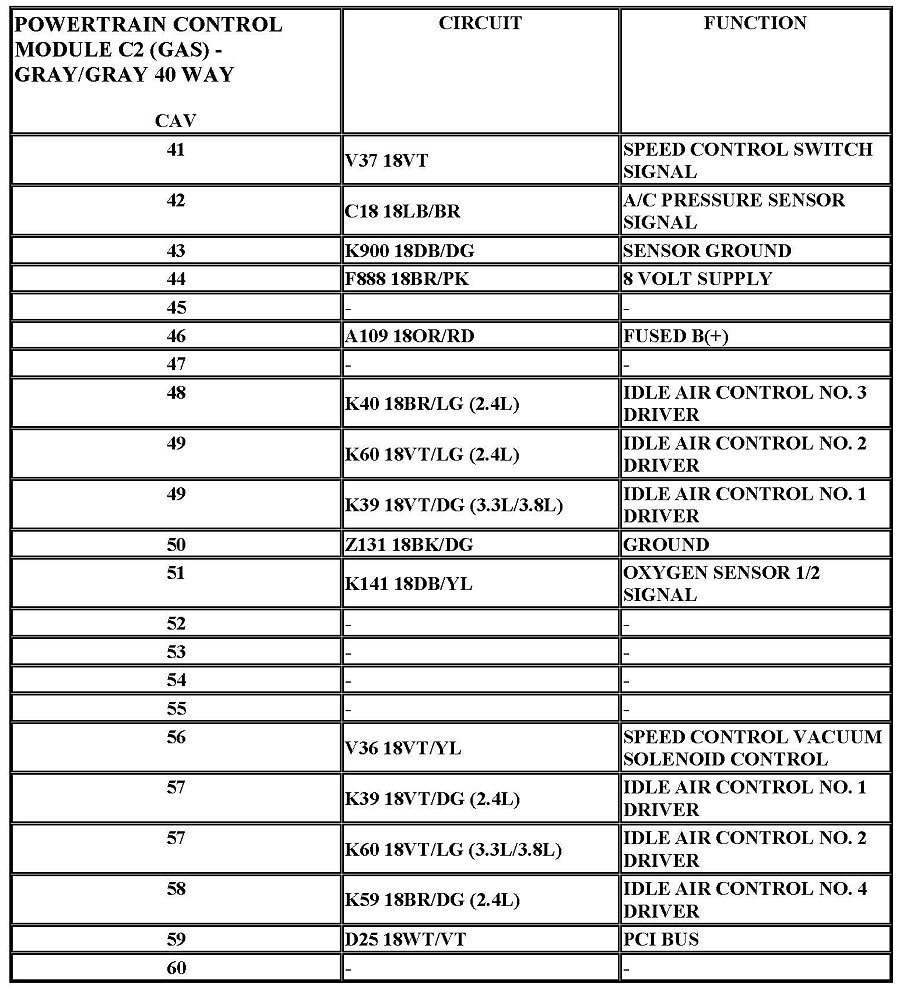

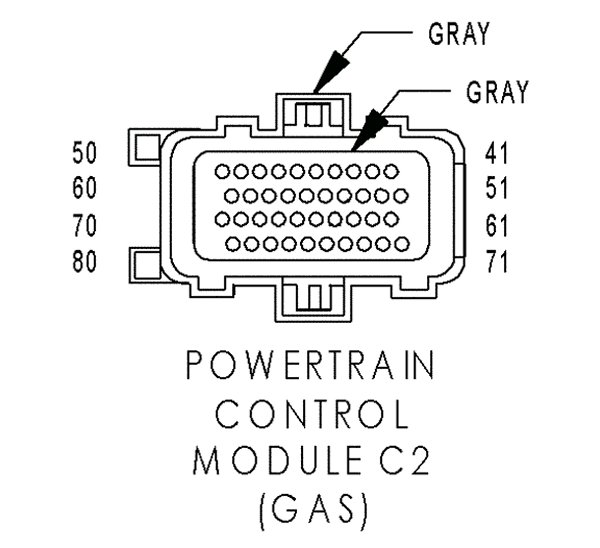

C2 - Gray/Gray 40-Way (1 Of 3):




C2 - Gray/Gray 40-Way (2 Of 3):

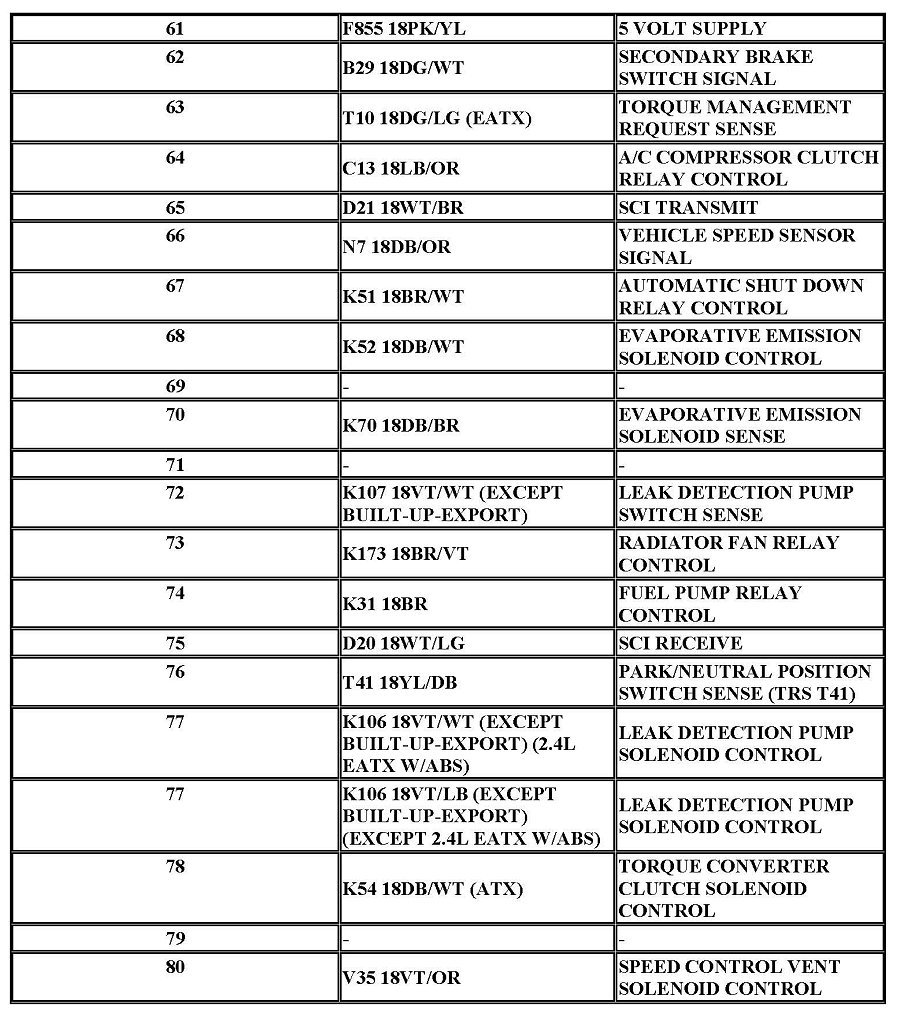

C2 - Gray/Gray 40-Way (3 Of 3):
