Home >> Dodge and Ram >> 2005 >> Dakota 2WD V8-4.7L VIN N >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Engine Control Module >> Locations

Engine Control Module: Locations

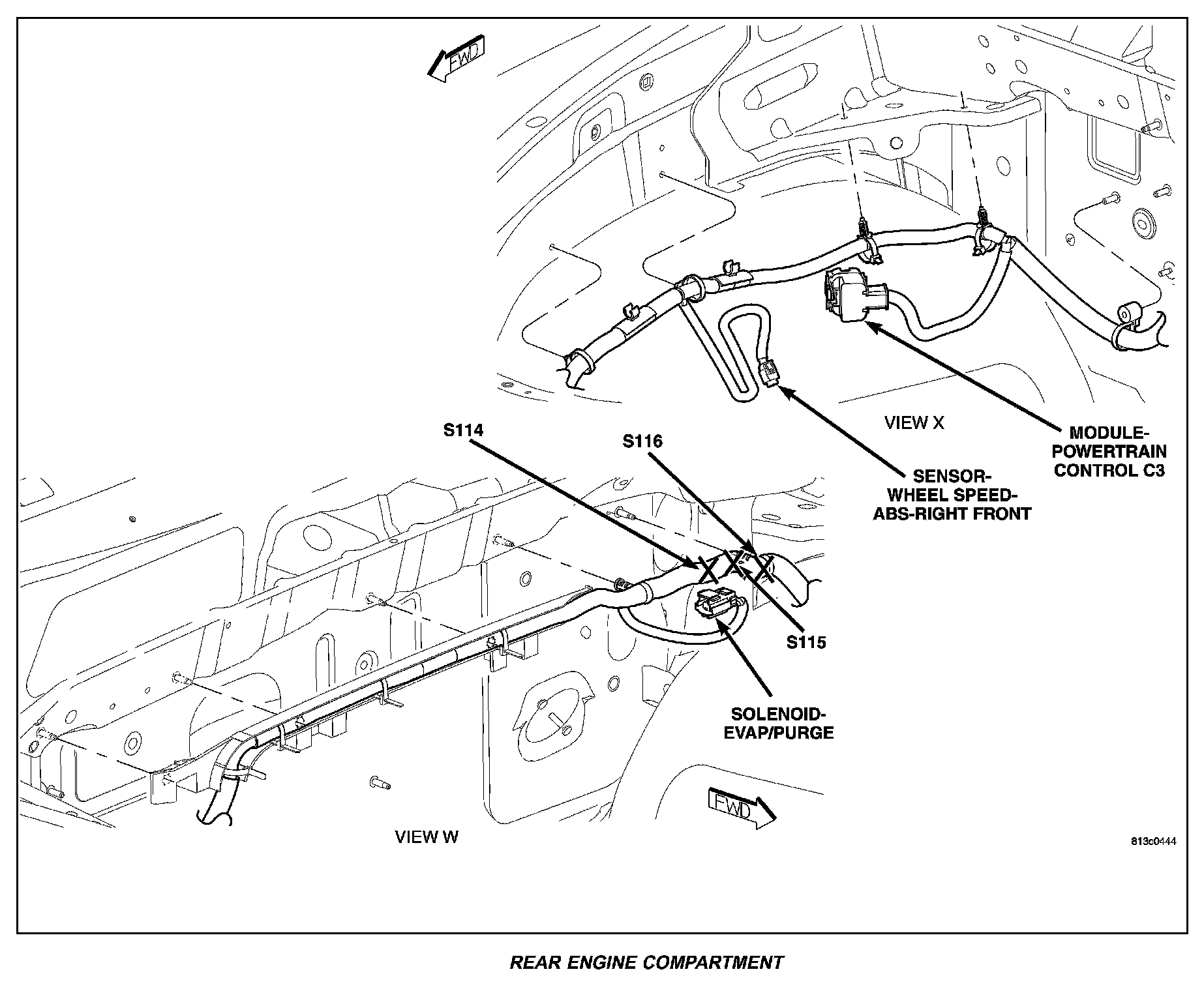

Rear Engine Compartment:

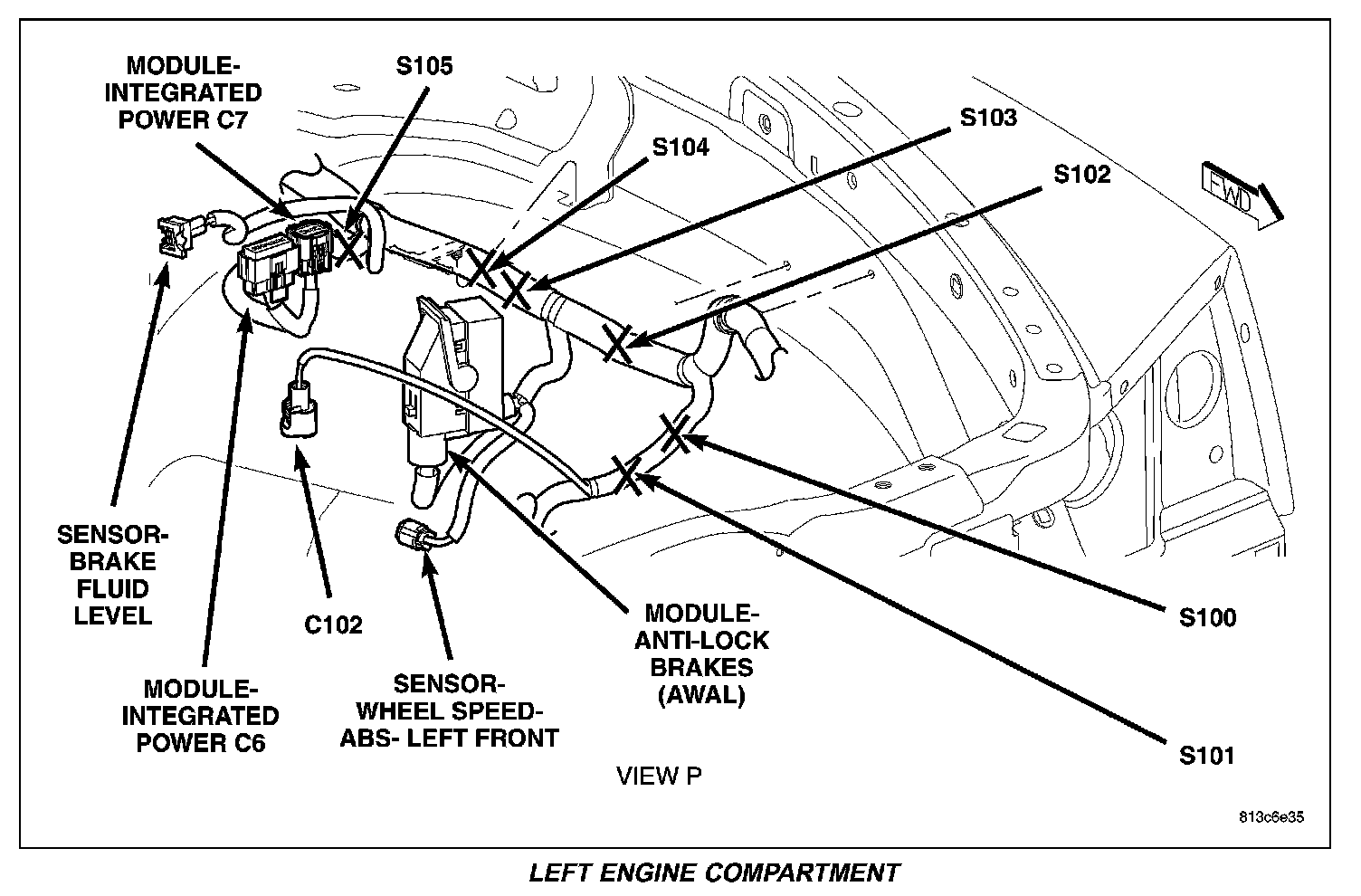

Left Engine Compartment:

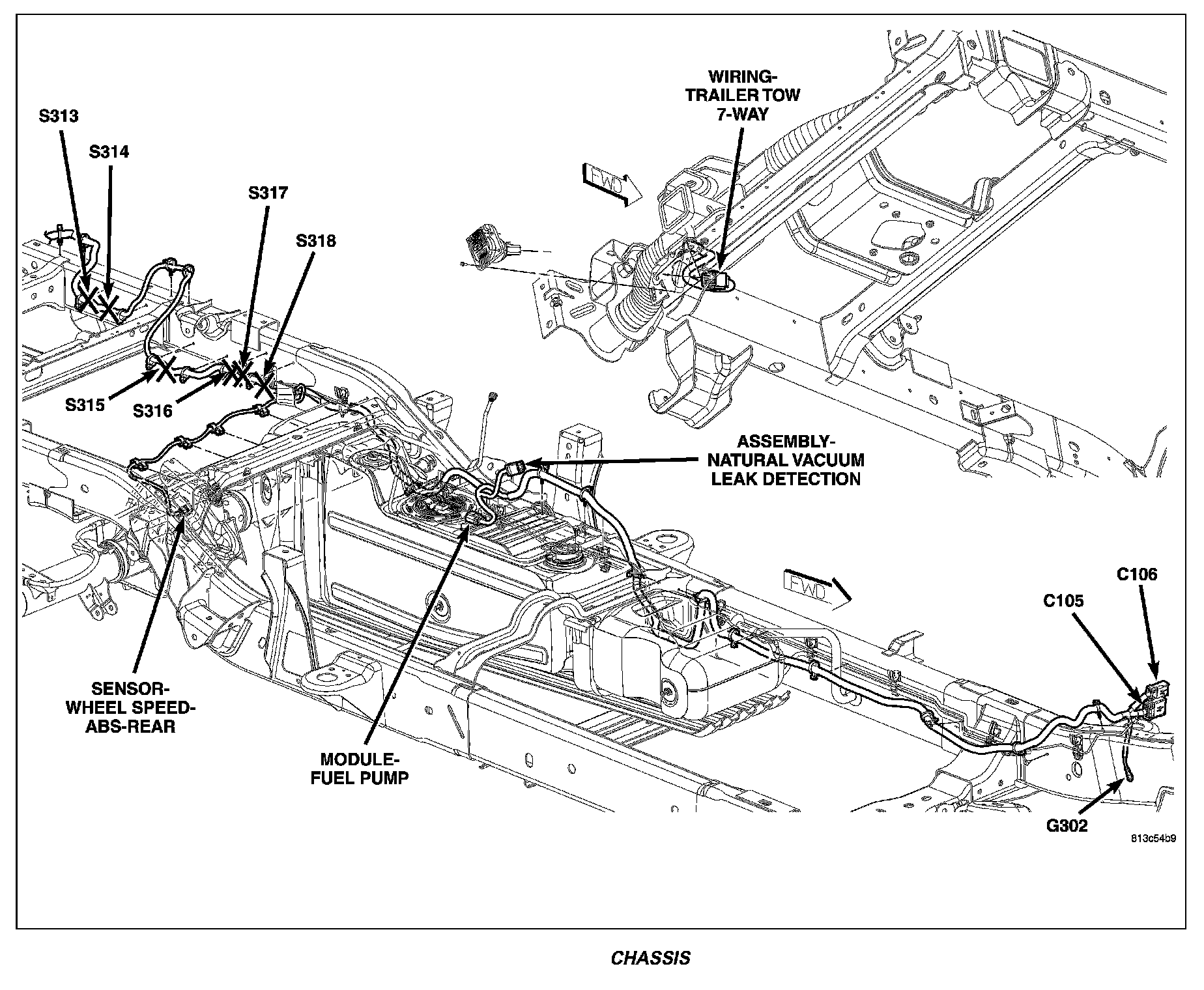

Chassis:
