Body Control Module: Locations

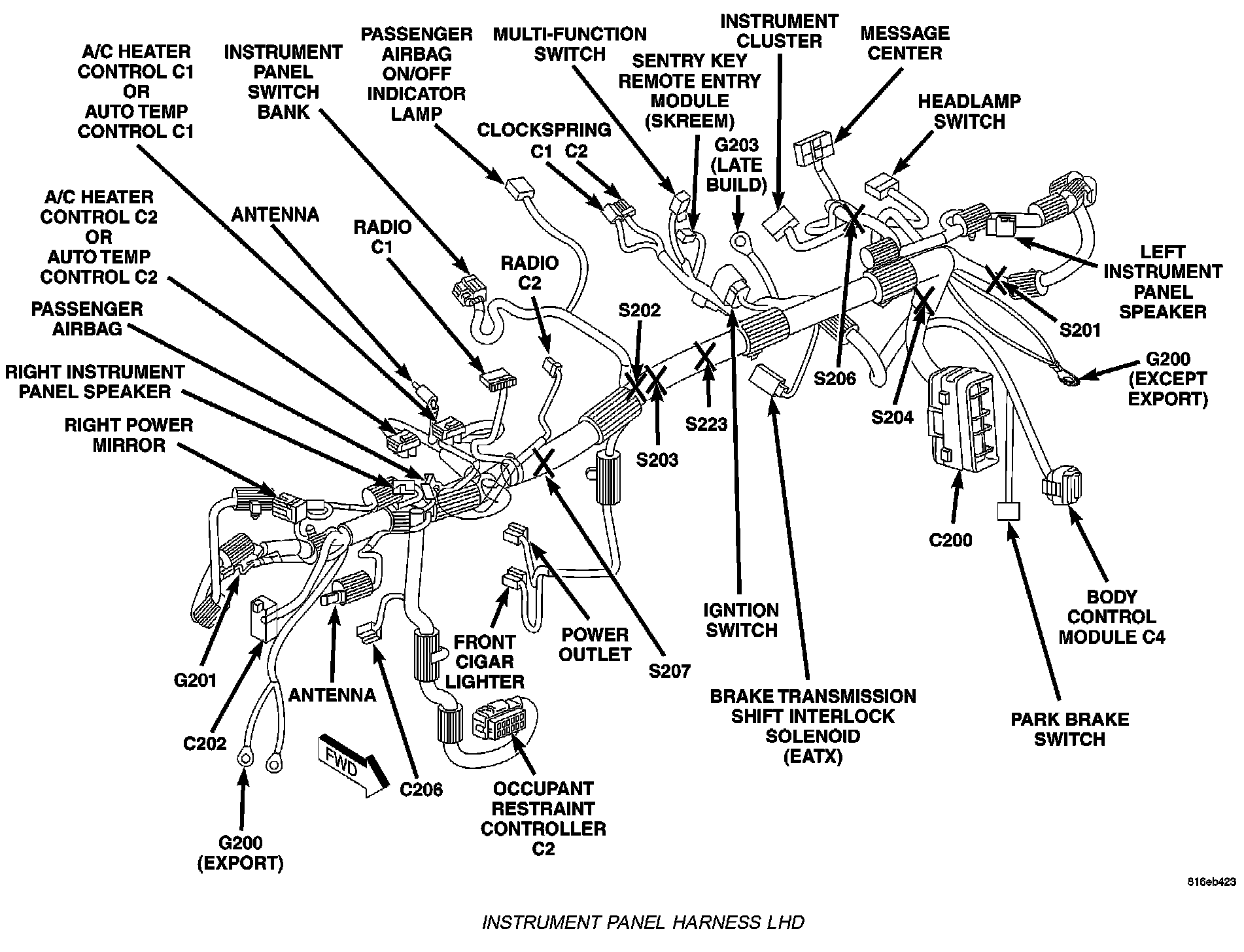

Instrument Panel Harness LHD:

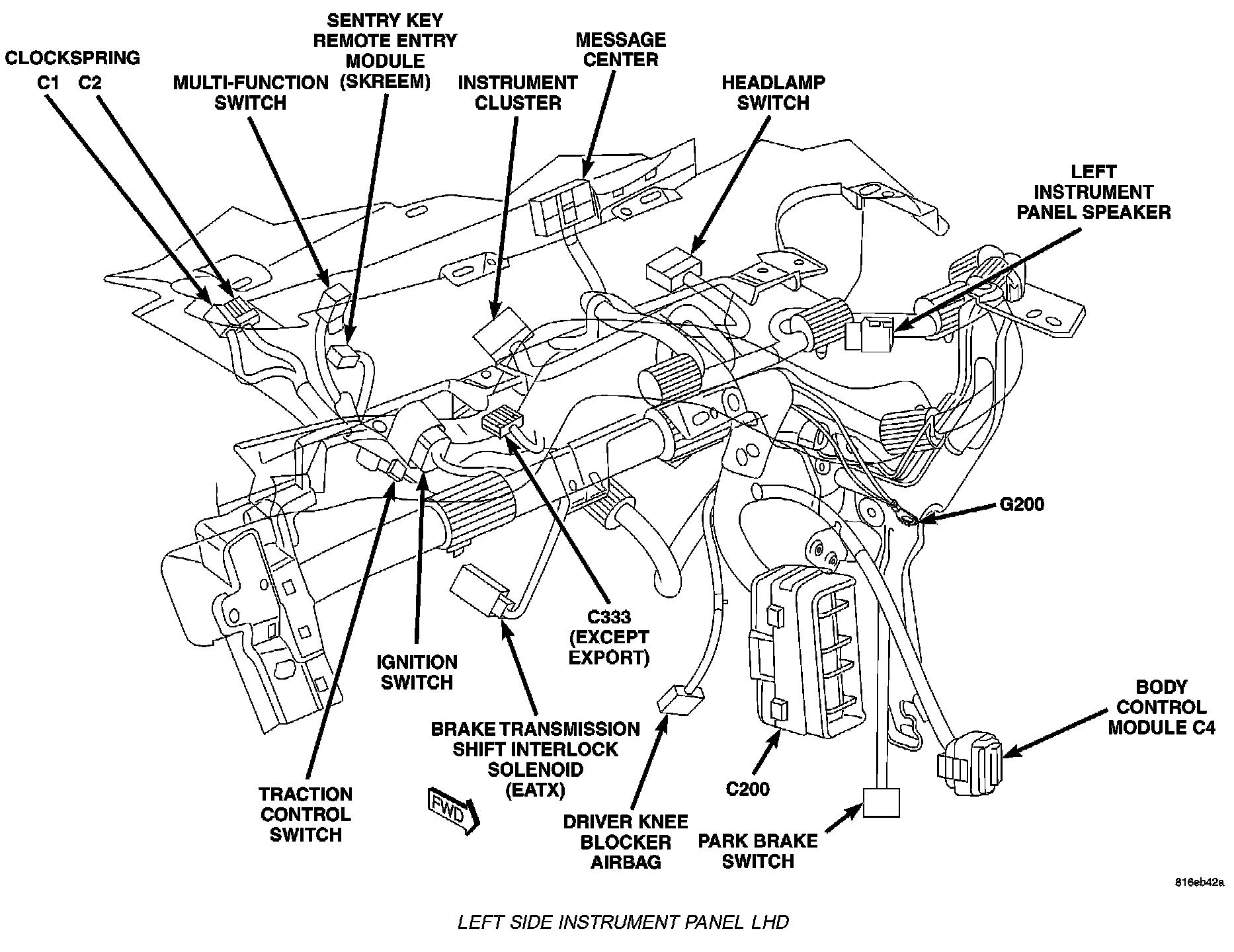

Left Side Instrument Panel LHD:

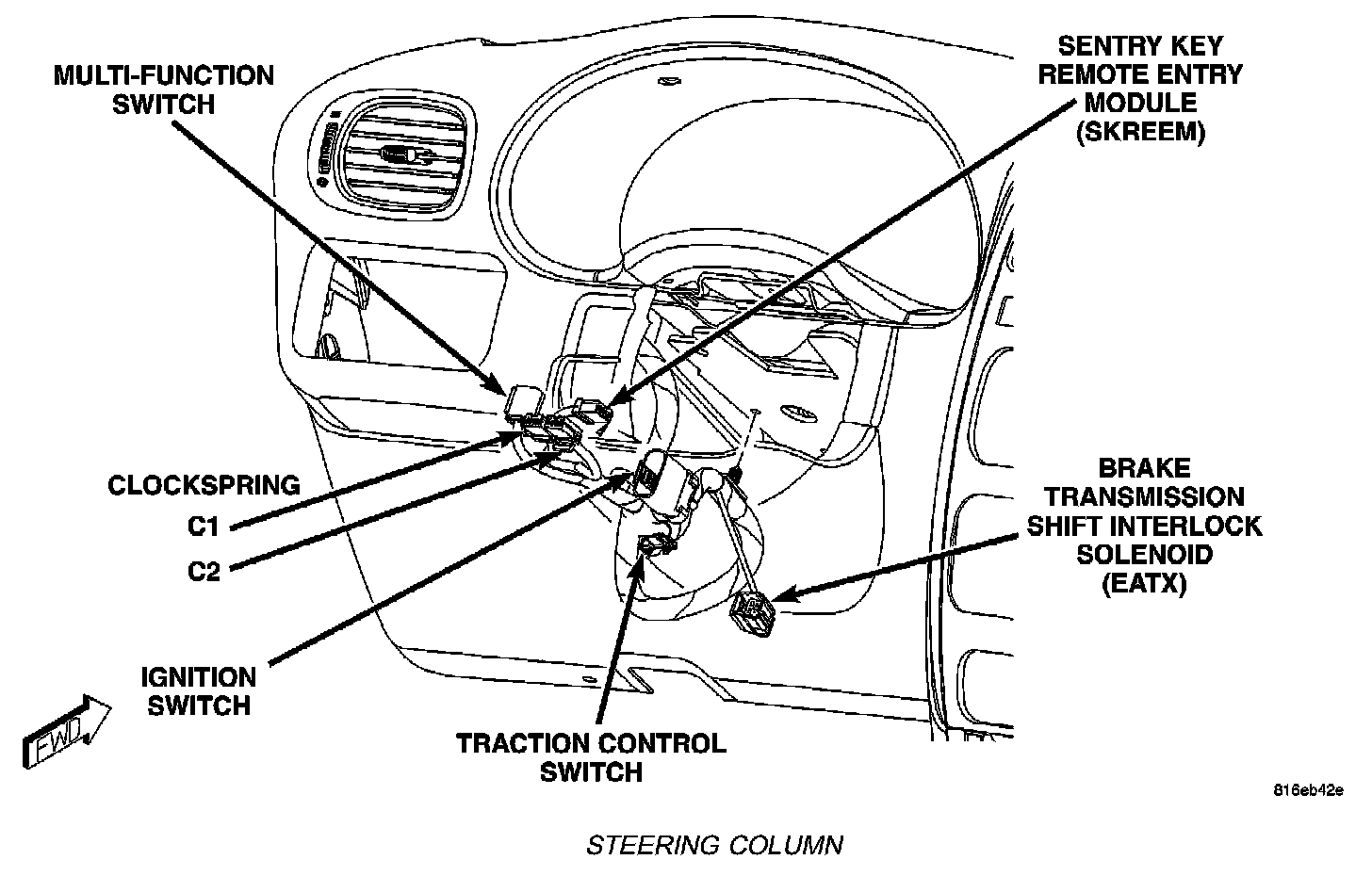

Steering Column:
