Engine Control Module

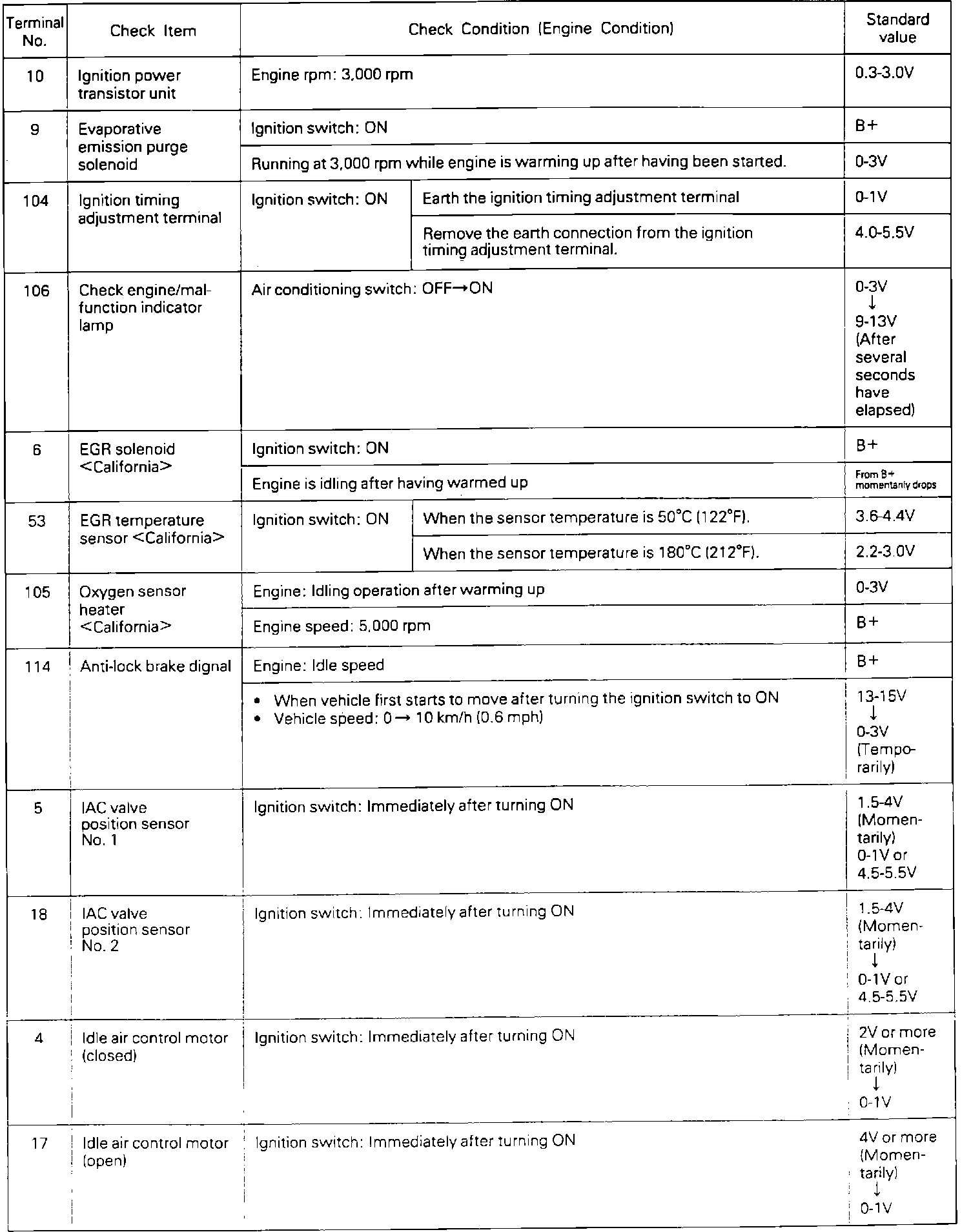

ECU Terminal Voltage Chart (1/3):

ECM TERMINAL VOLTAGE CHART 1/3

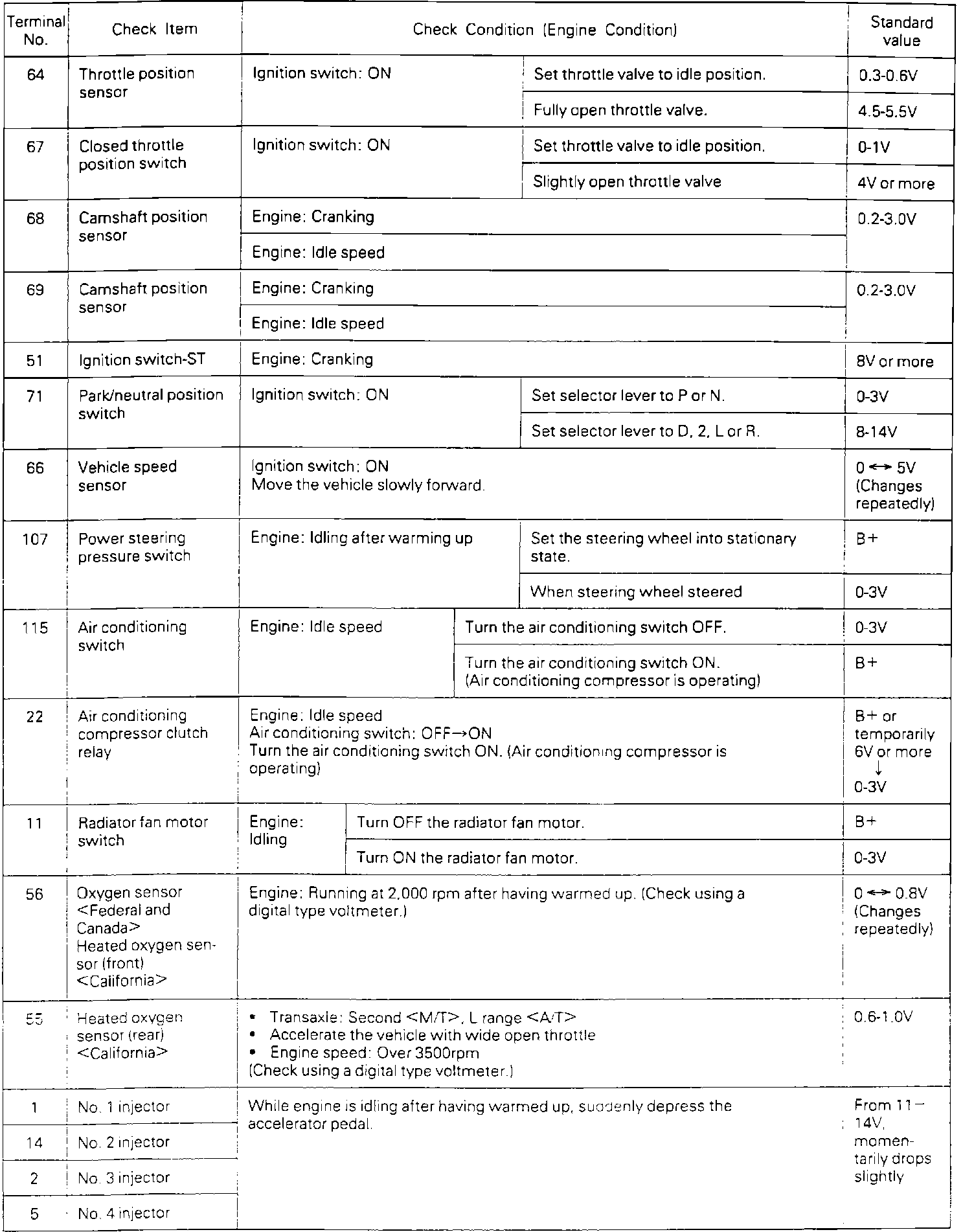

ECU Terminal Voltage Chart (2/3):

ECM TERMINAL VOLTAGE CHART 2/3

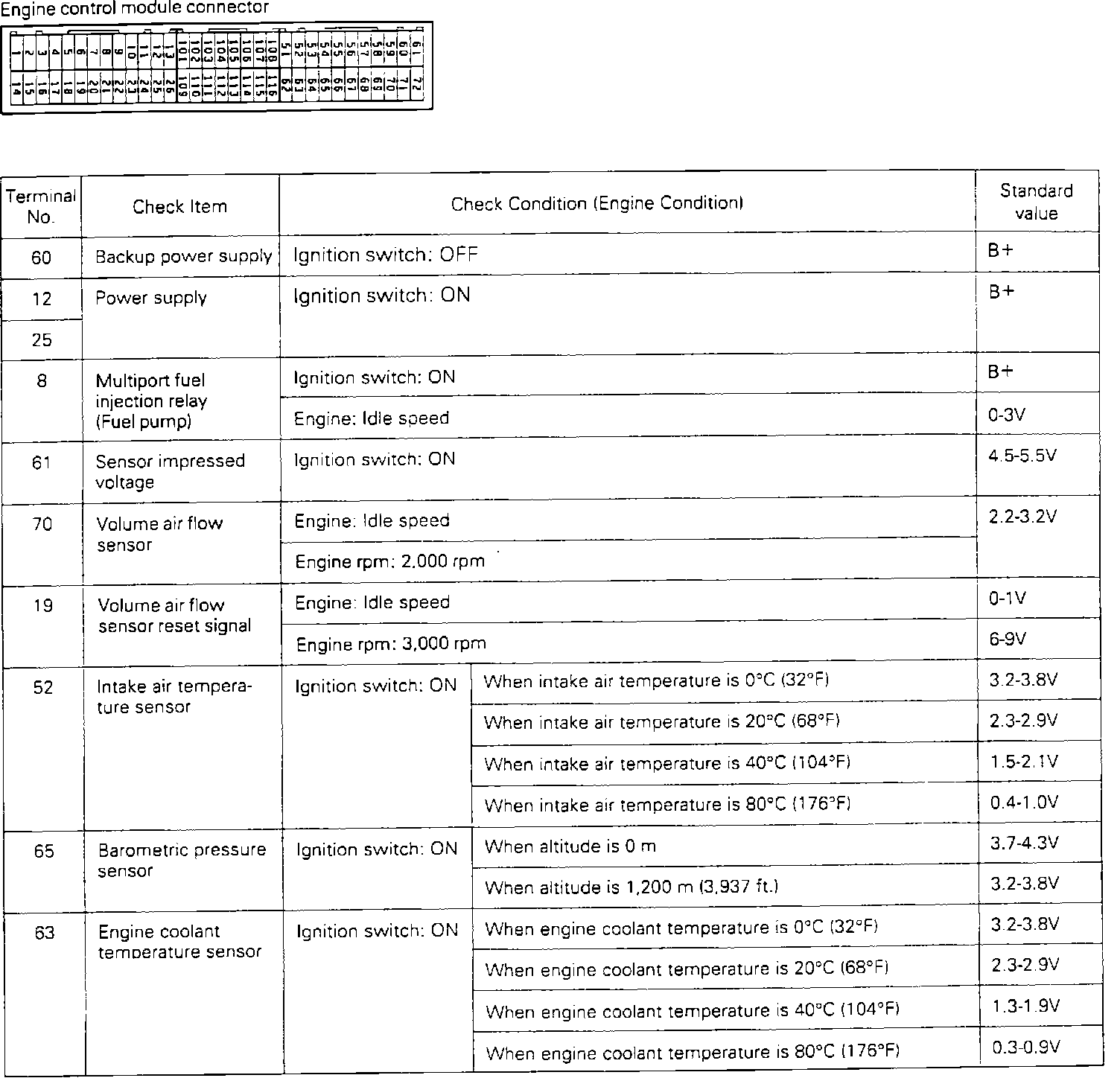

ECU Terminal Voltage Chart (3/3):

ECM TERMINAL VOLTAGE CHART 3/3
