Engine Control Module

ECU Terminal Identification 1/3:

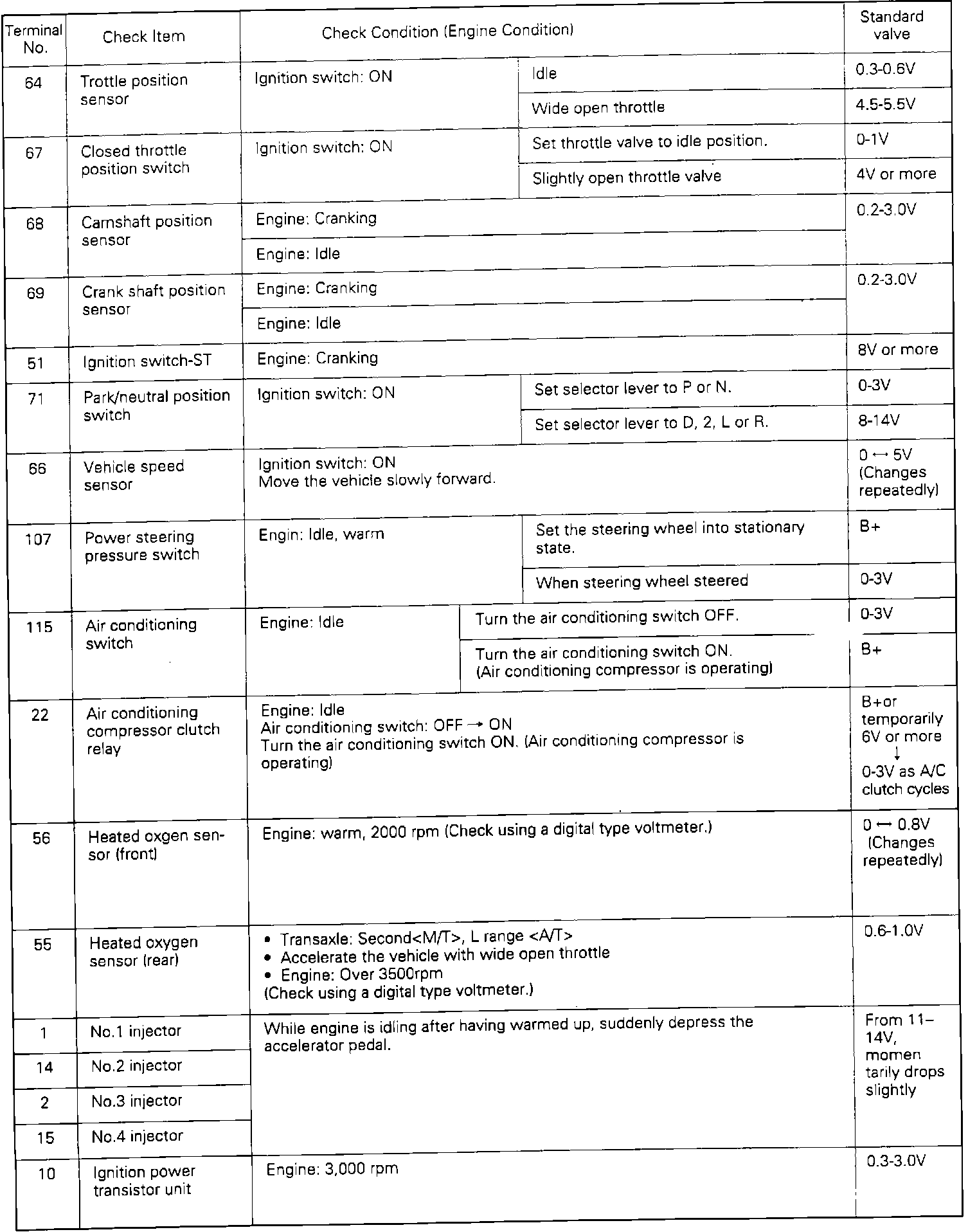

ECM TERMINAL VOLTAGE CHART 1/3

ECU Terminal Identification 2/3:

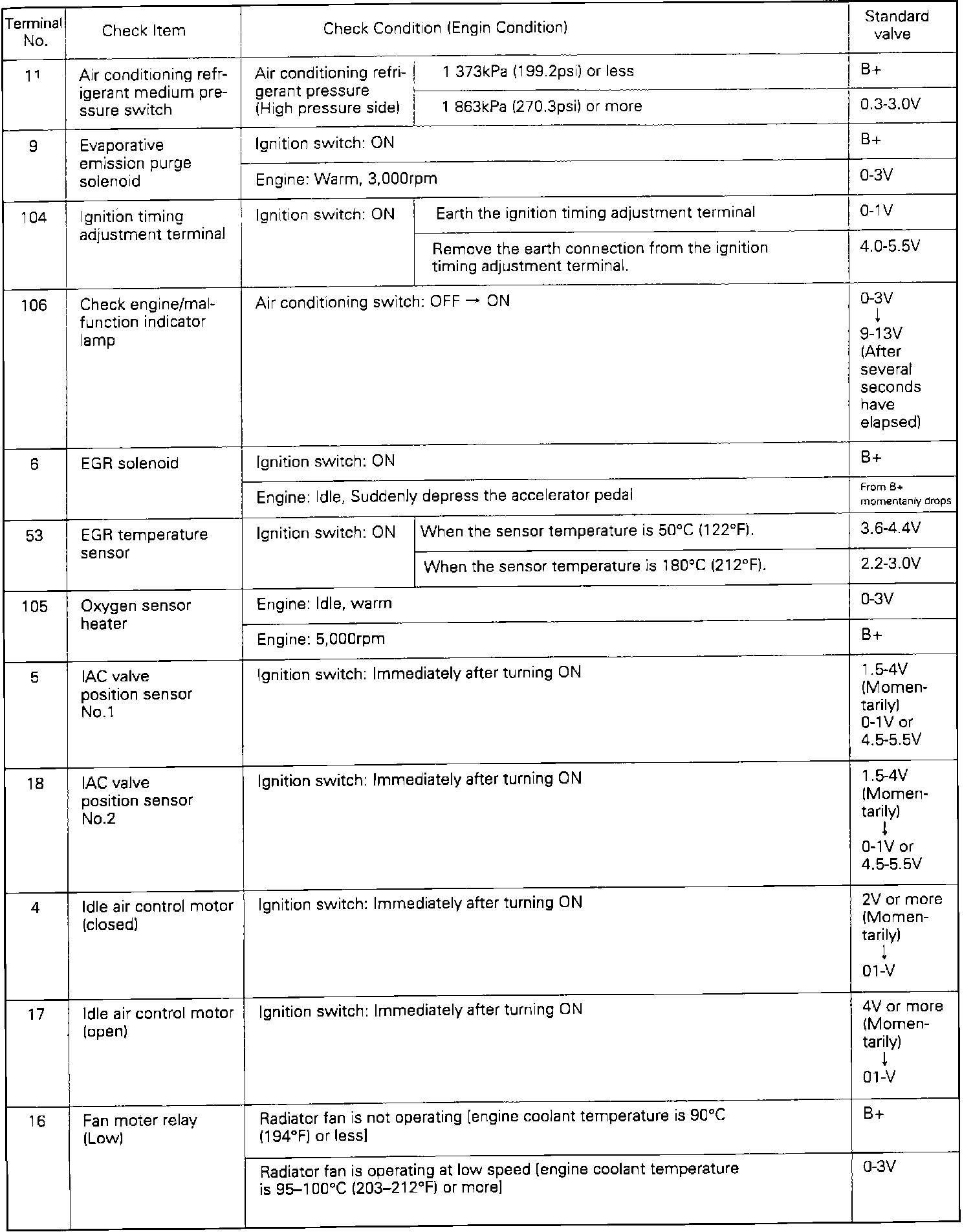

ECM TERMINAL VOLTAGE CHART 2/3

ECU Terminal Identification 3/3:

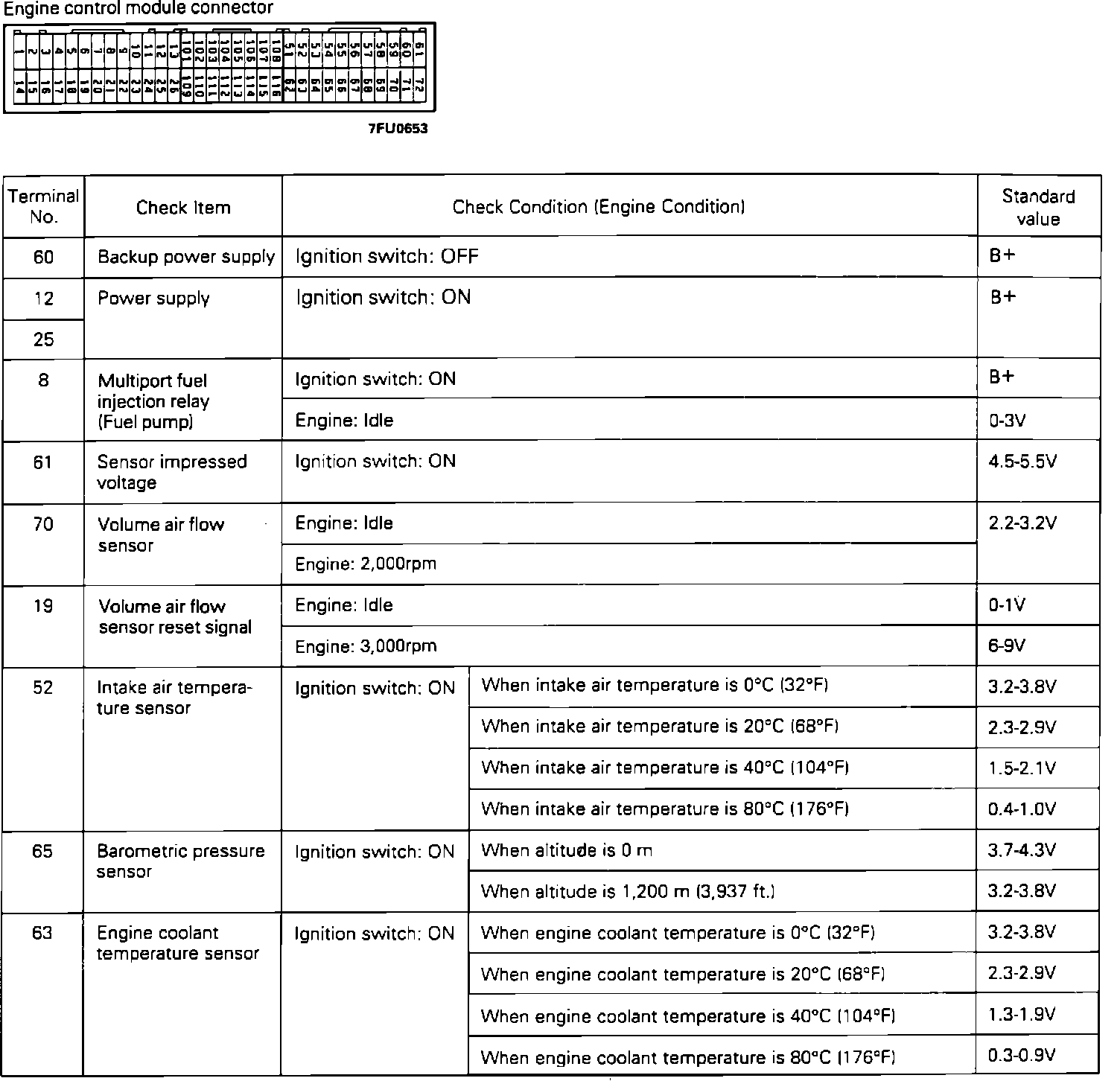

ECM TERMINAL VOLTAGE CHART 3/3
