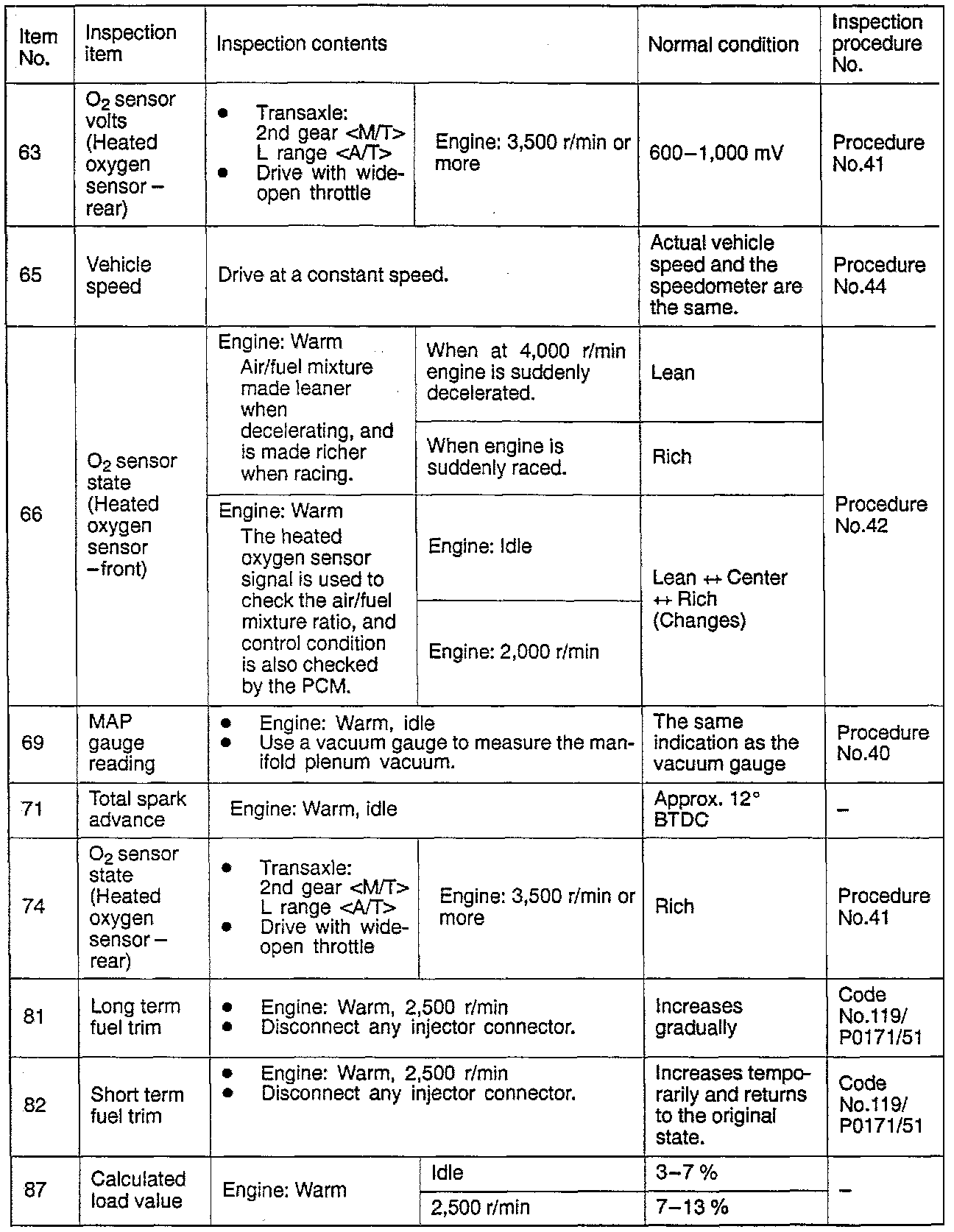

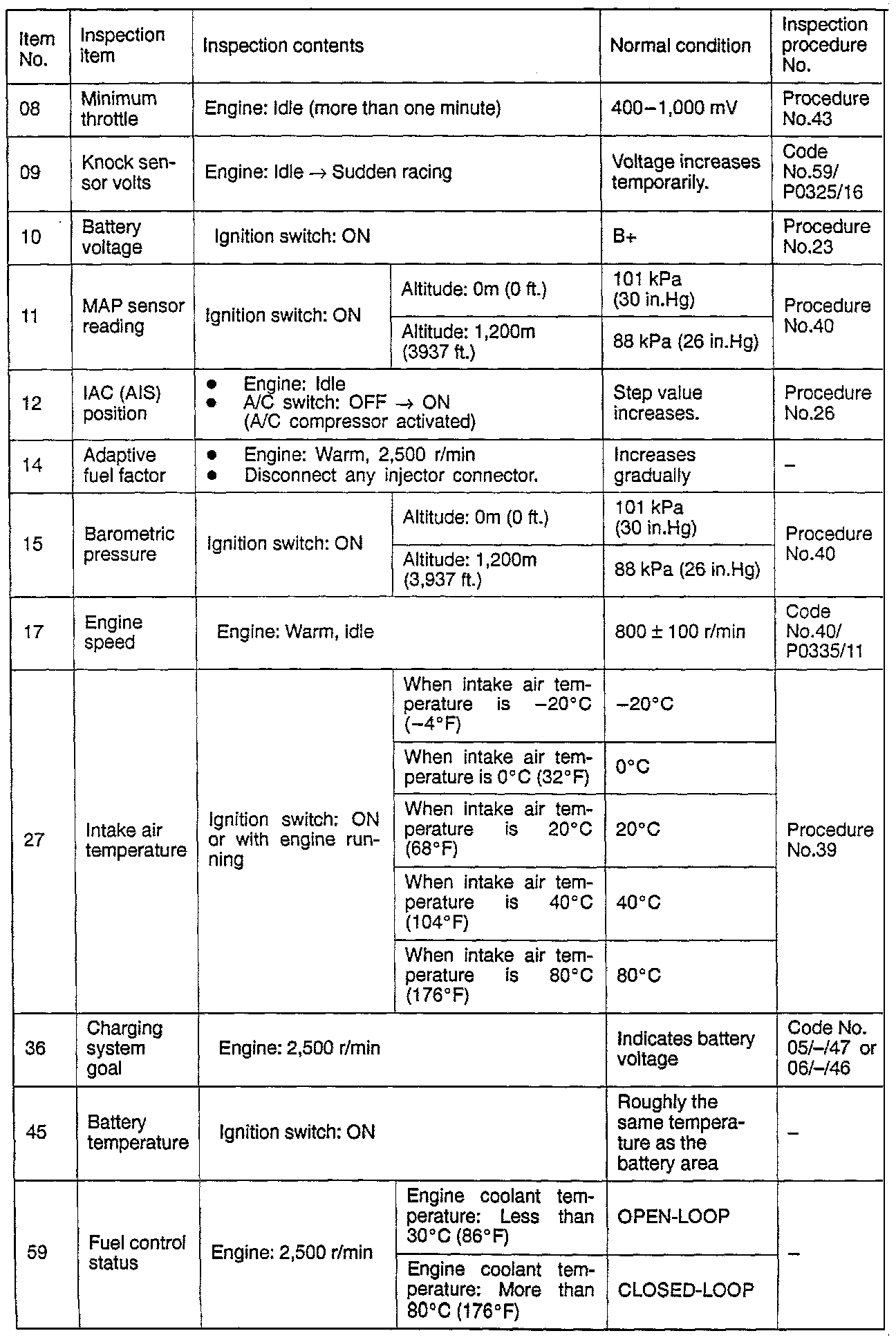

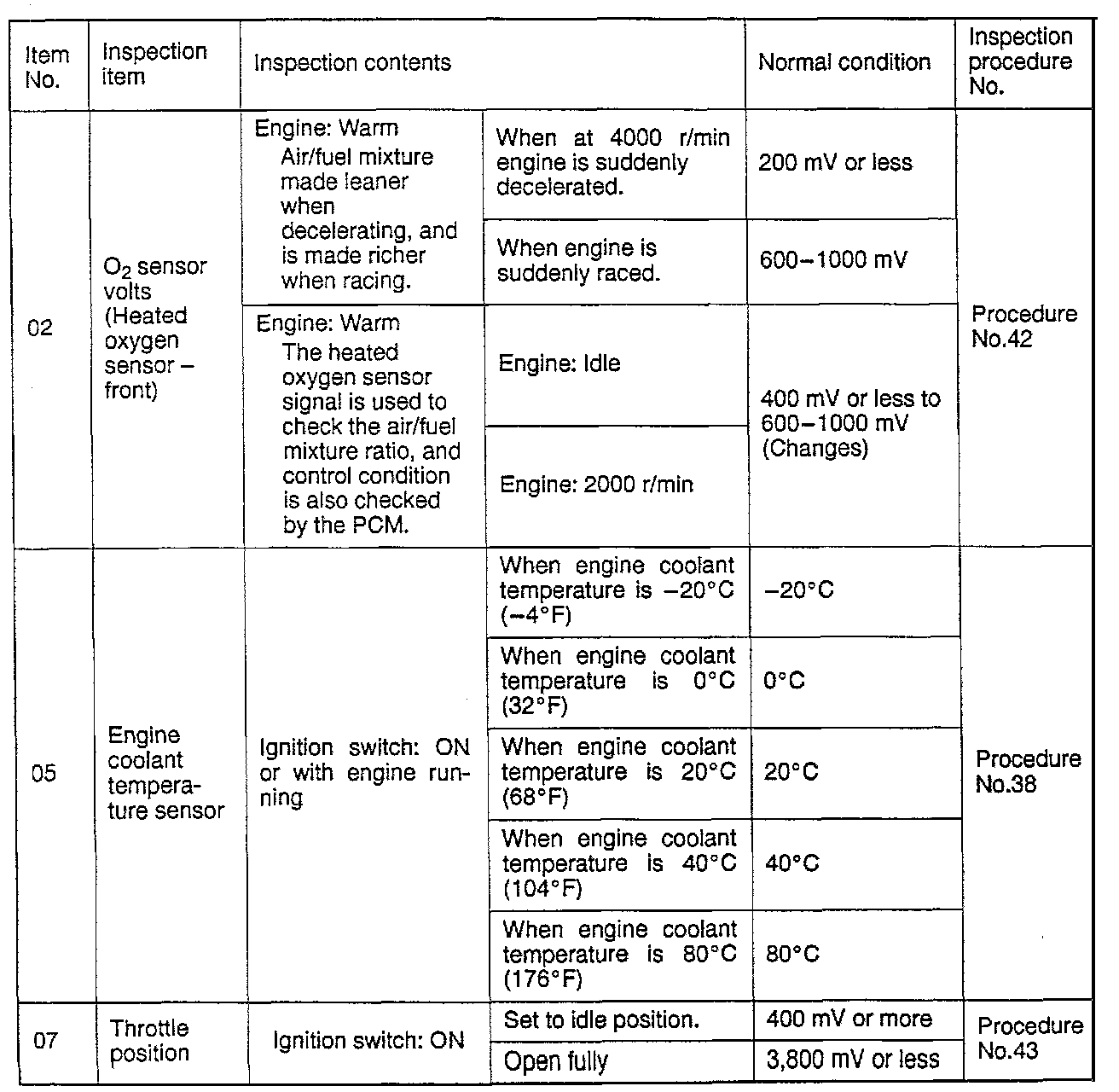

Home >> Eagle >> 1996 >> Talon FWD L4-1997cc 2.0L DOHC >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Scan Tool Testing and Procedures >> State Display Tests >> Sensor Read Tests Reference Table
