LEMON Manuals
: Even more car manuals for everyone
Home
>>
Ford
>>
1991
>>
Ranger 4WD V6-183 3.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Engine Control Module
Engine Control Module

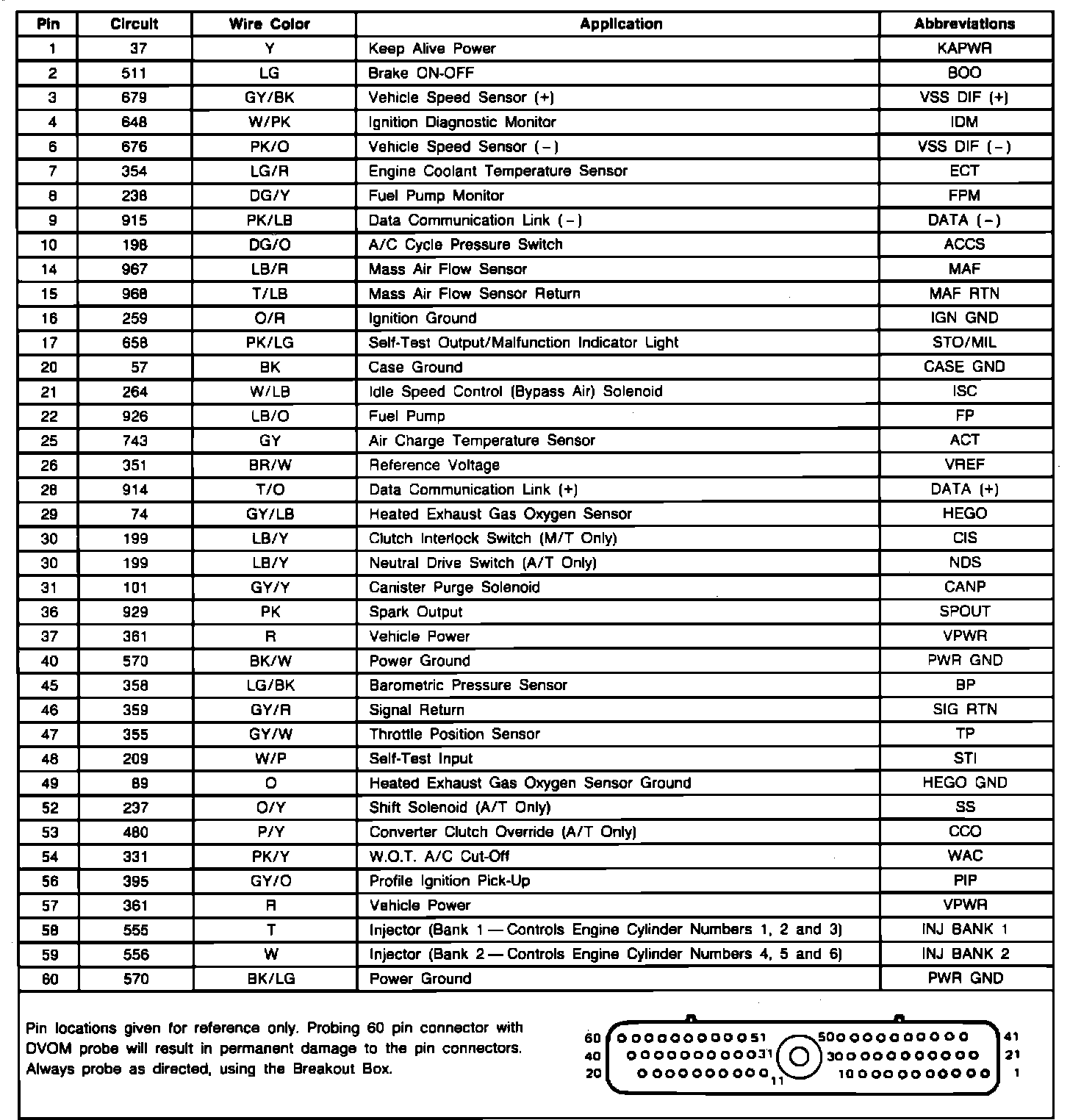

ECA Connector Pin Identification:
