Connector Views

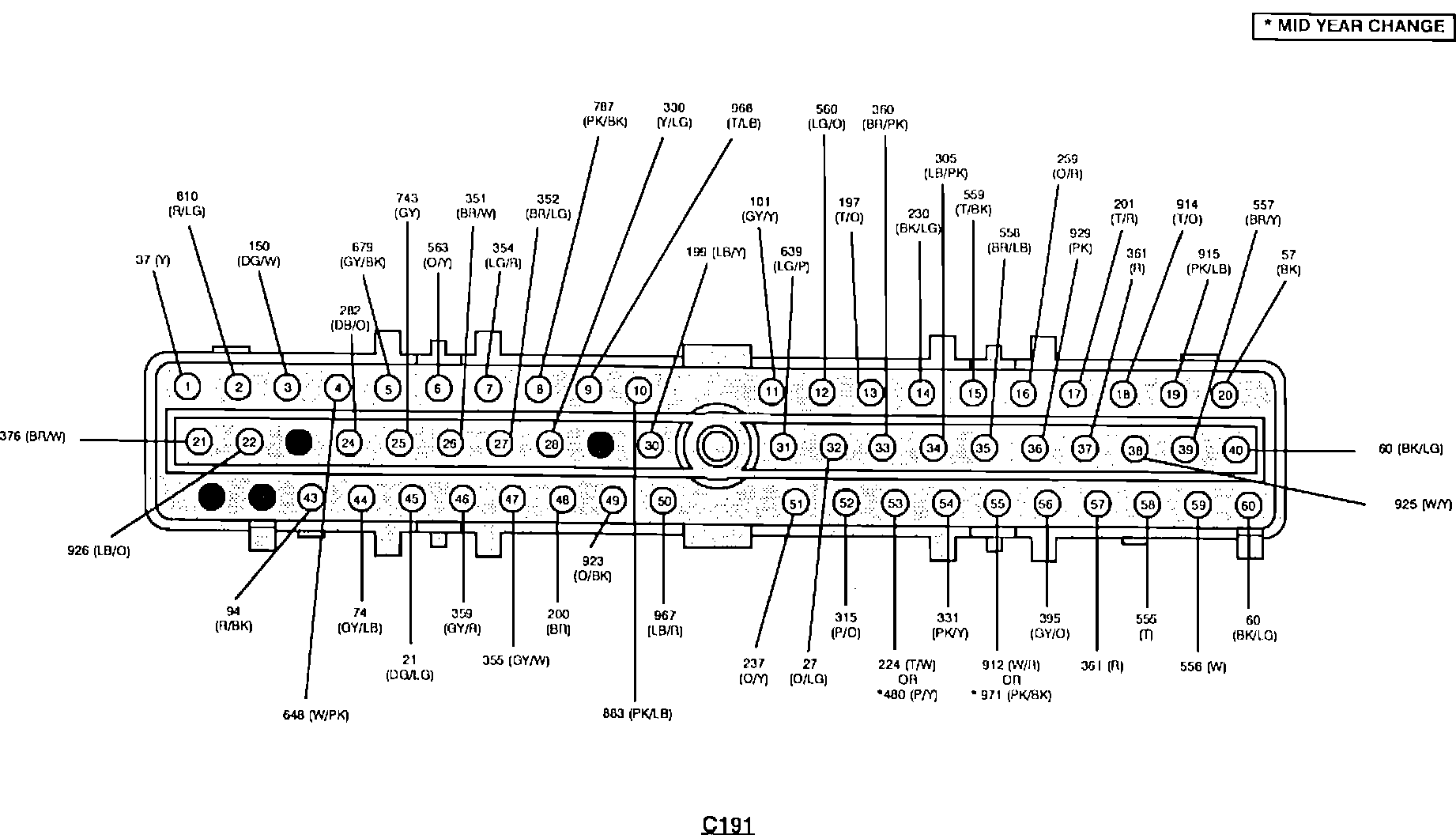

Powertrain Control Module (PCM):
CONNECTOR VIEW

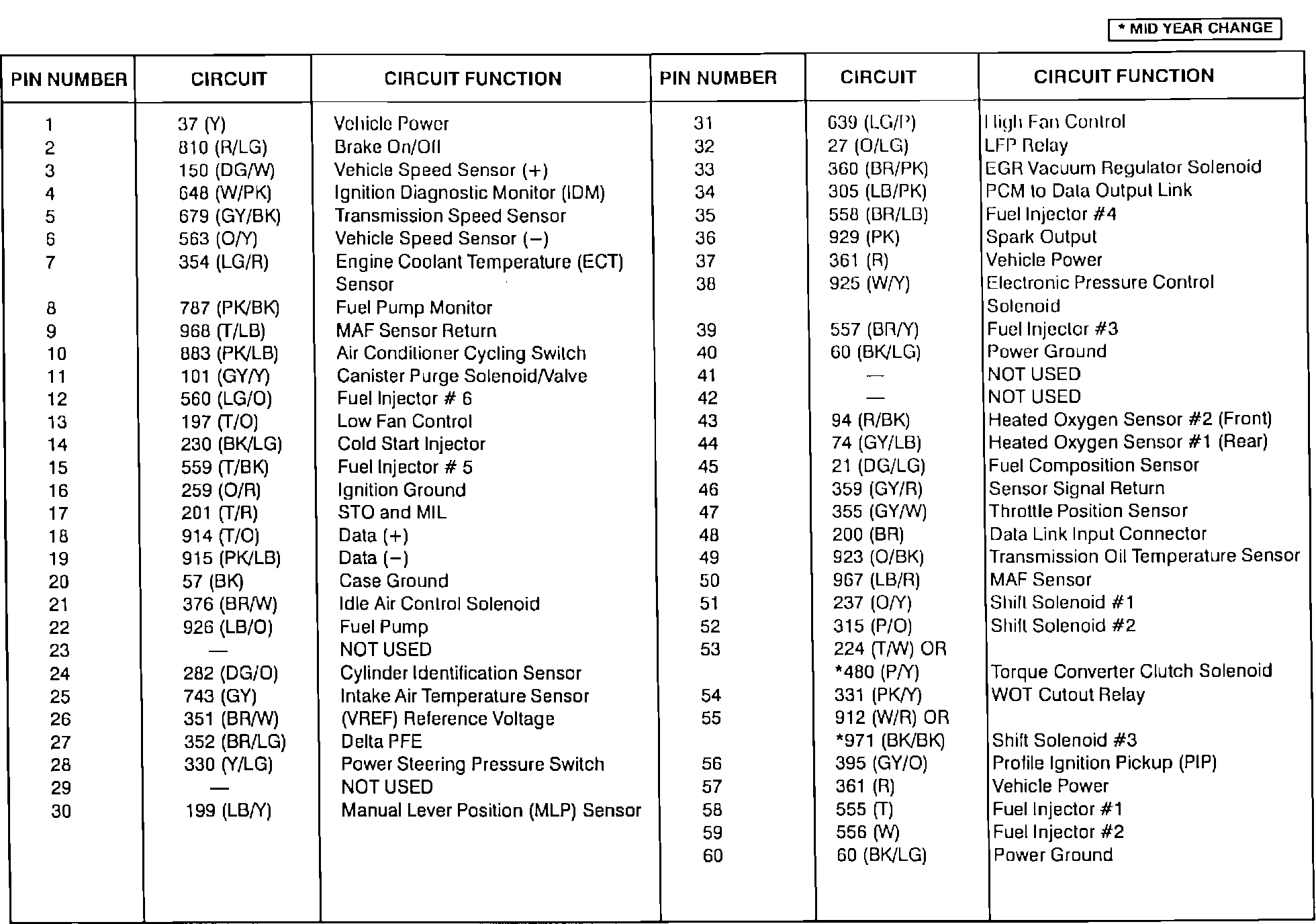

Powertrain Control Module (PCM):
PINOUT IDENTIFICATION
