Home >> Ford >> 1996 >> E 250 Van L6-300 4.9L >> Repair and Diagnosis >> Body and Frame >> Locks >> Keyless Entry >> Keyless Entry Module >> Locations

Keyless Entry Module: Locations

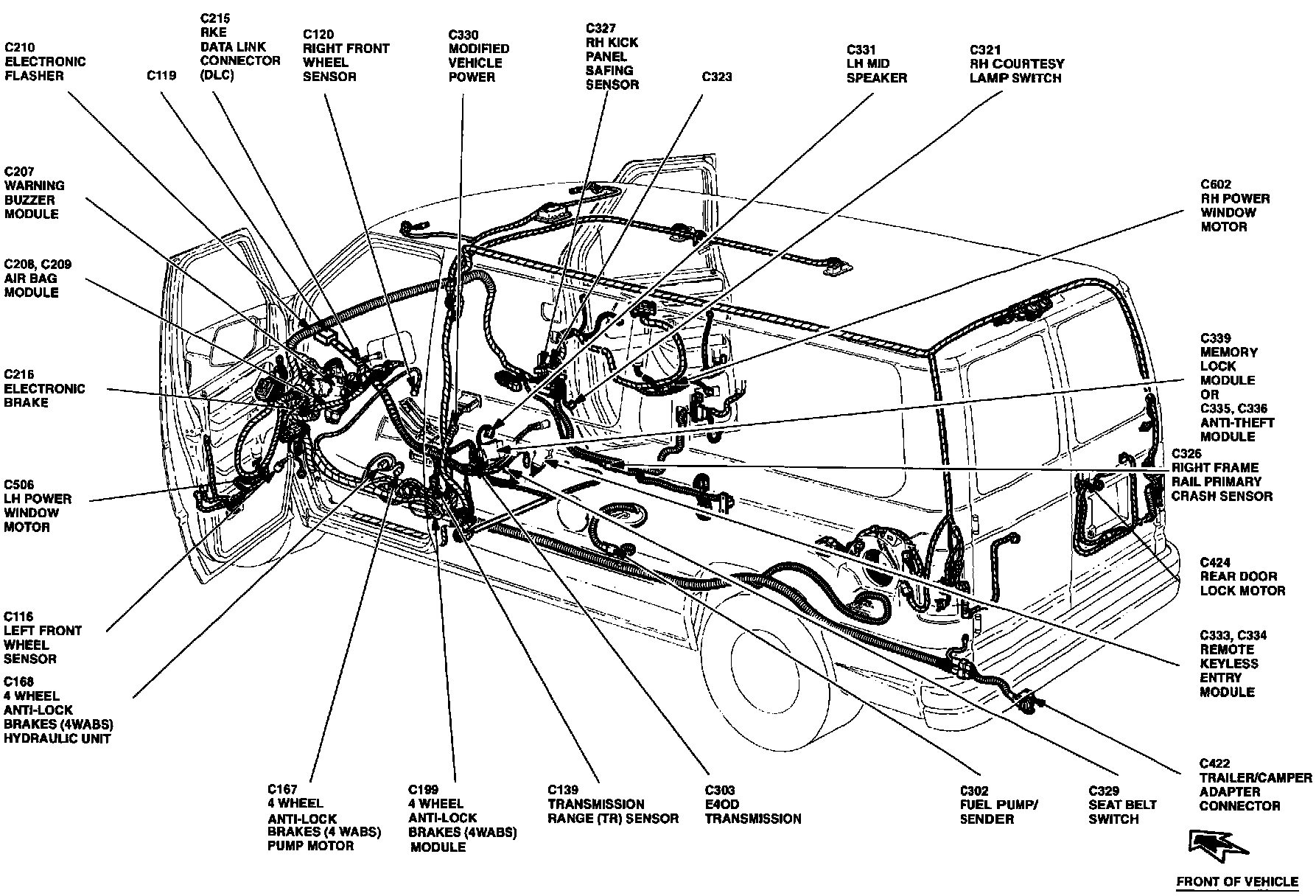

Full Body View:





The Remote Keyless Entry Module is located behind LH "B" pillar.
