Engine Control Module

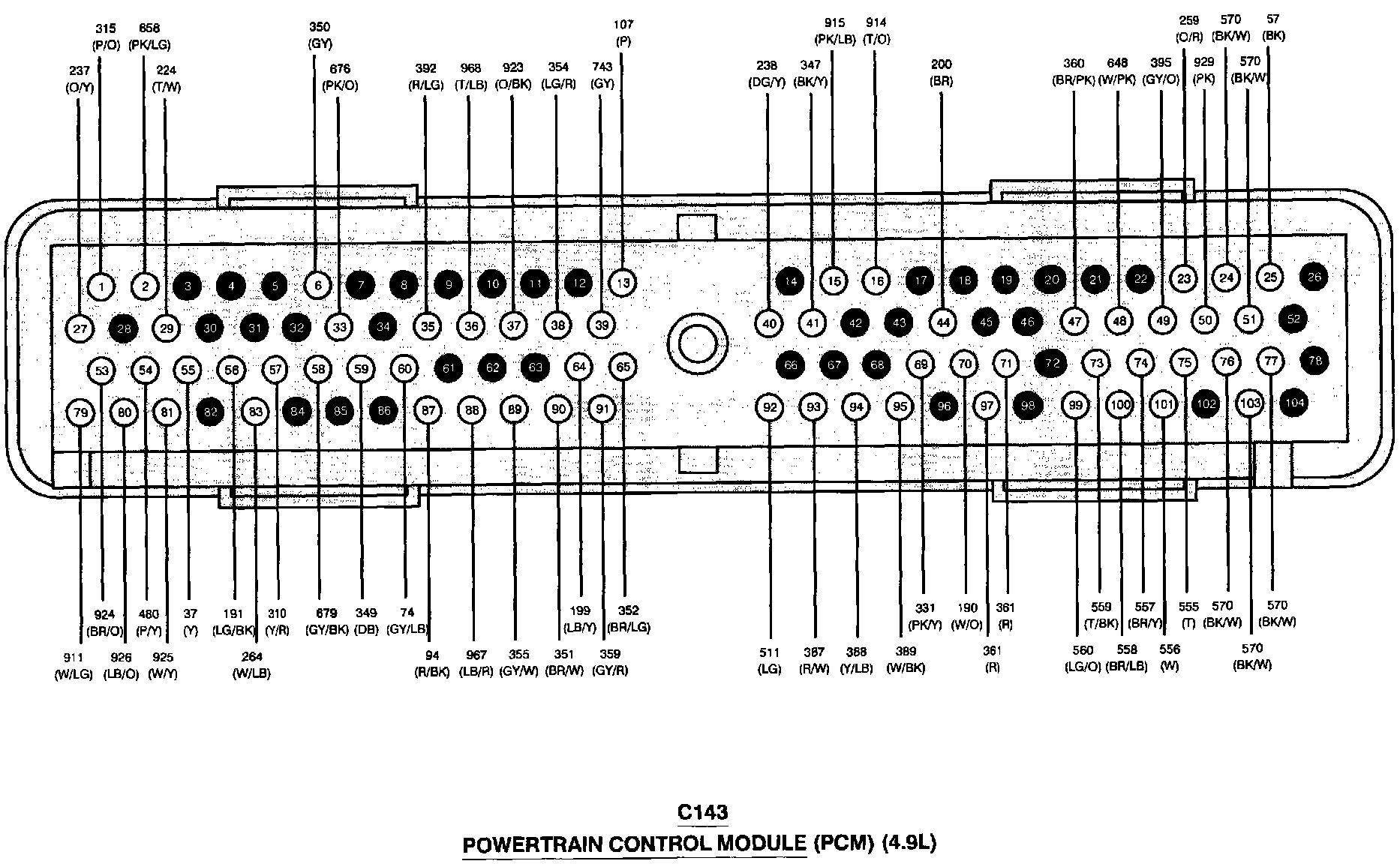

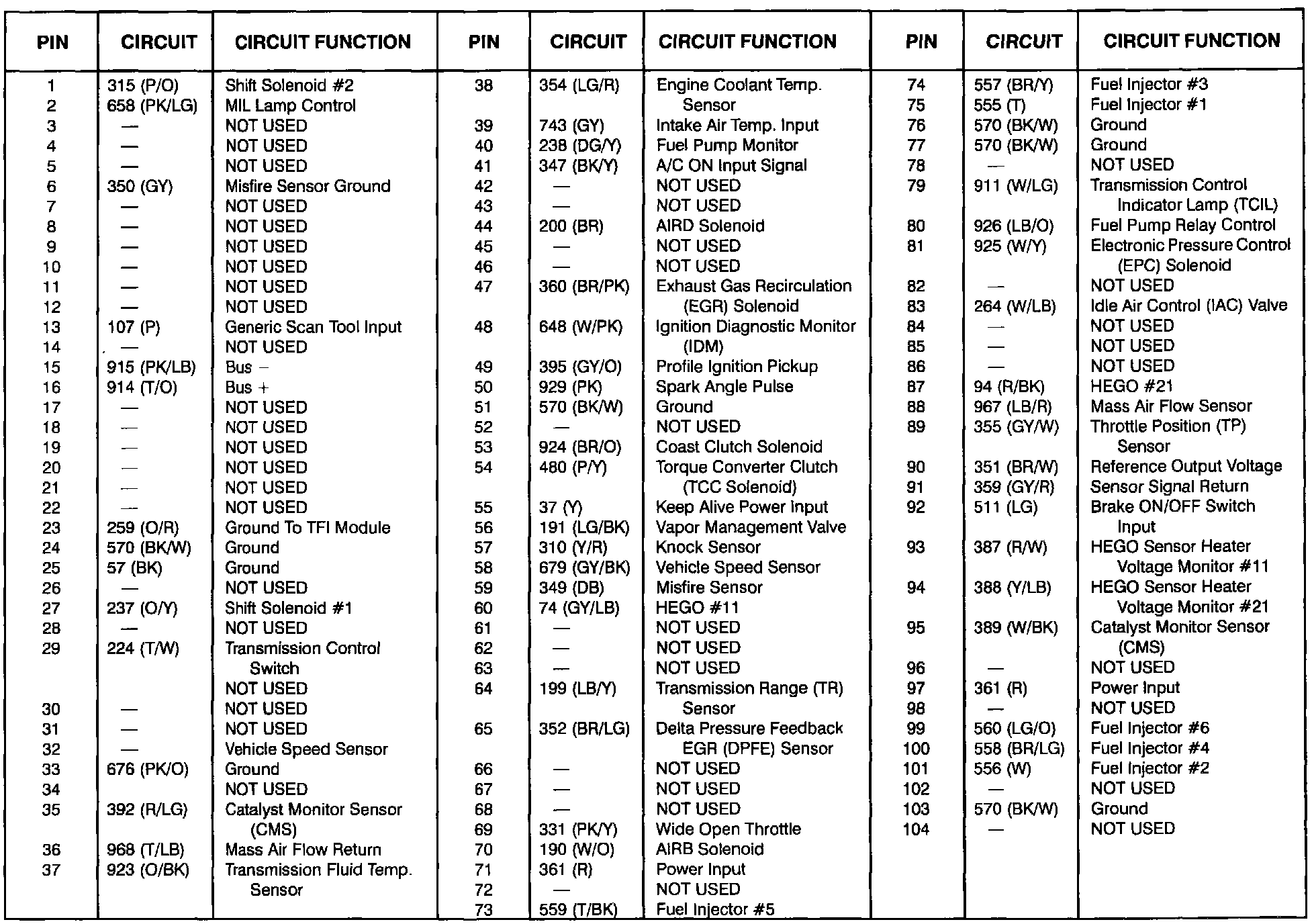

Powertrain Control Module (C143) (Part 1 Of 2):



Powertrain Control Module (C143) (Part 2 Of 2):
