Engine Control Module: Locations

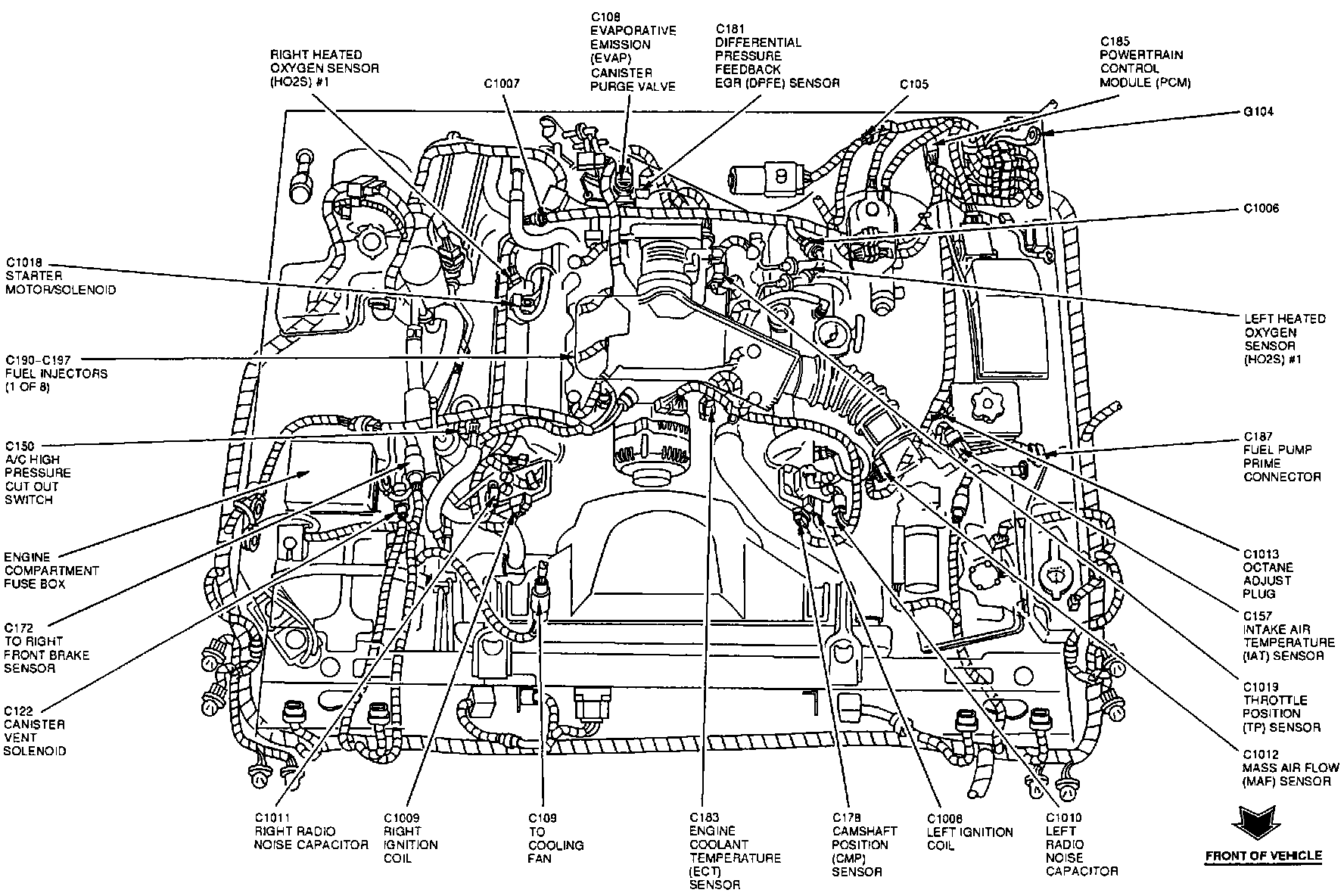

Engine View:










The Powertrain Control Module is located behind LH side of instrument panel, on LH side of the safety wall.
