Home >> Ford >> 1997 >> F 150 4WD Pickup V6-4.2L VIN 2 >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Engine Control Module >> Locations

Engine Control Module: Locations

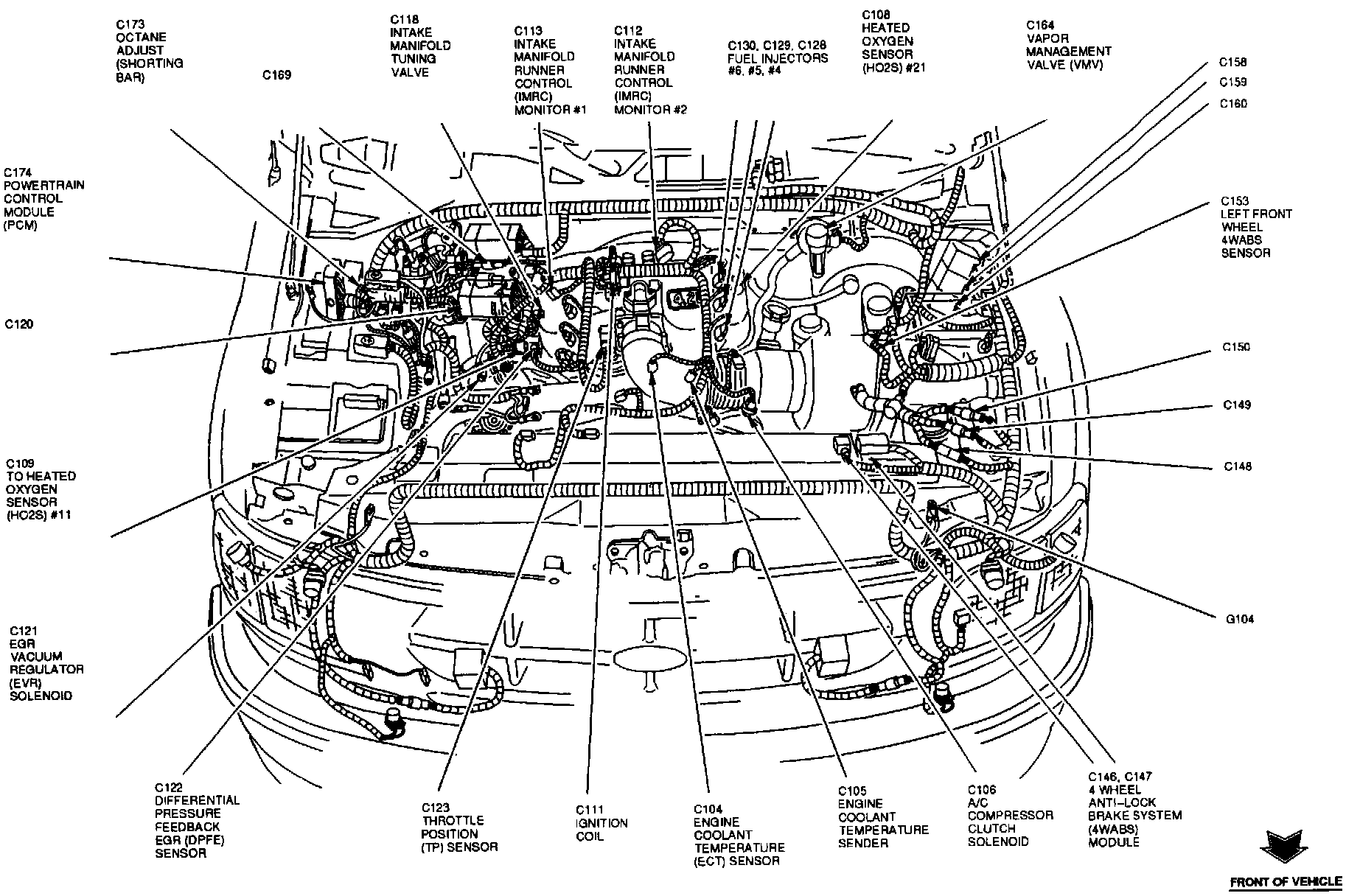

Engine View:









The Powertrain Control Module is located inside the RH kick panel.
