Econoline E350 1 Ton V10-6.8L VIN S
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Engine Control Module
>>
Diagrams
>>
Connector Views
Connector Views

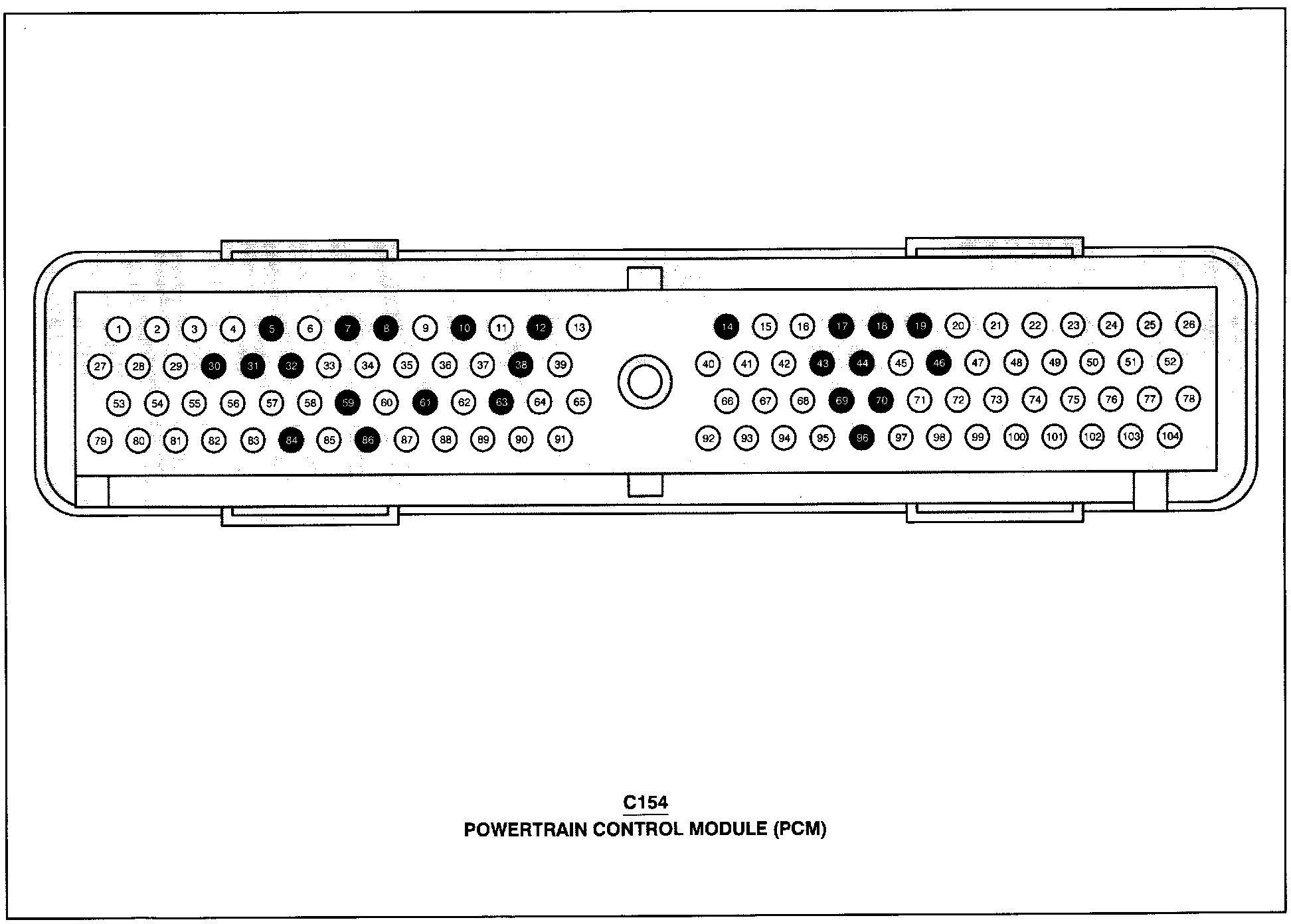

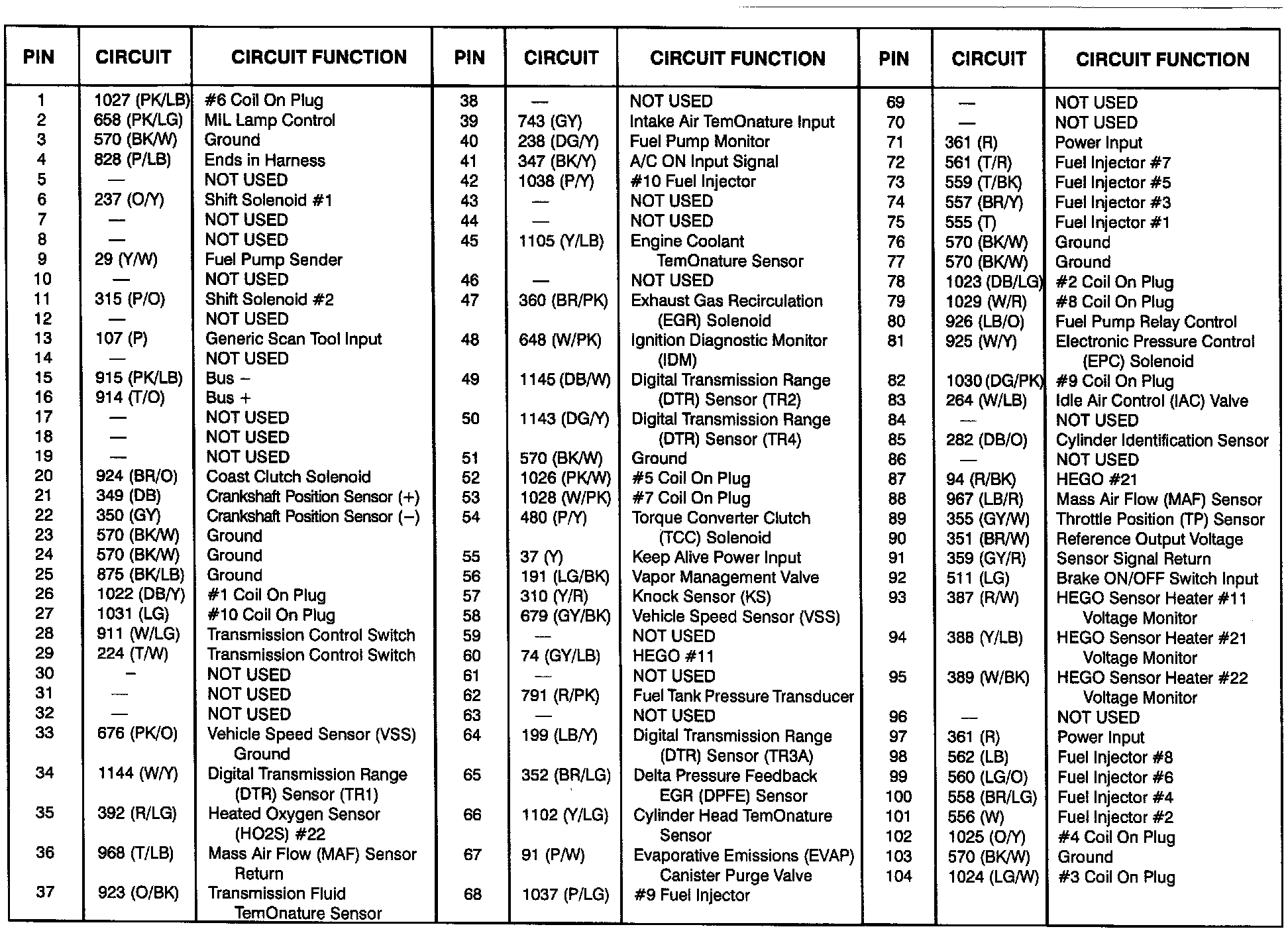

Powertrain Control Module (Part 1 Of 2) 6.8 L E350:
Powertrain Control Module (Part 2 Of 2) 6.8 L E350:
