F 150 2WD Pickup V8-5.4L CNG VIN M
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Computers and Control Systems
>>
Engine Control Module
Engine Control Module

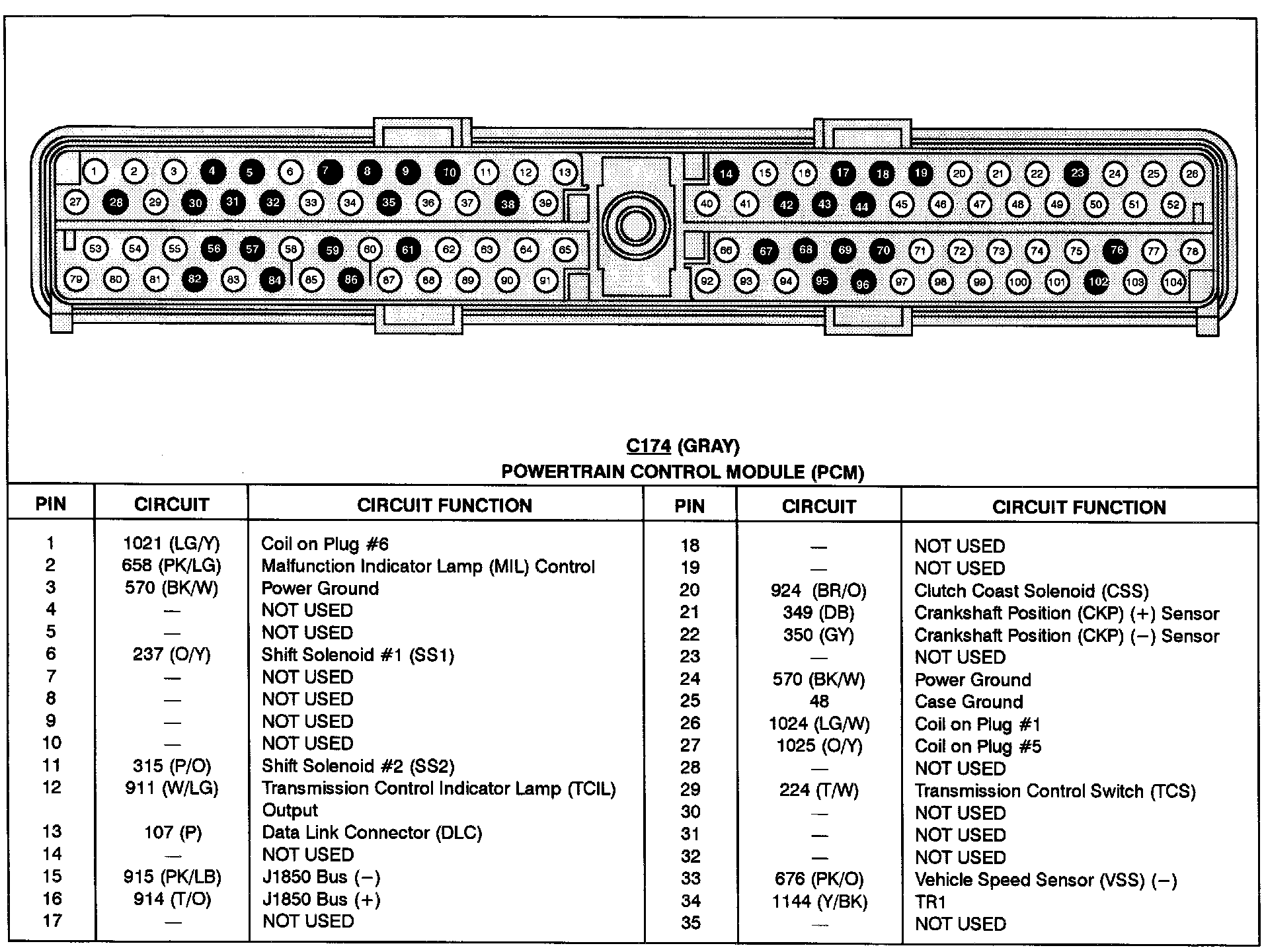

Powertrain Control Module (Part 1 Of 3):

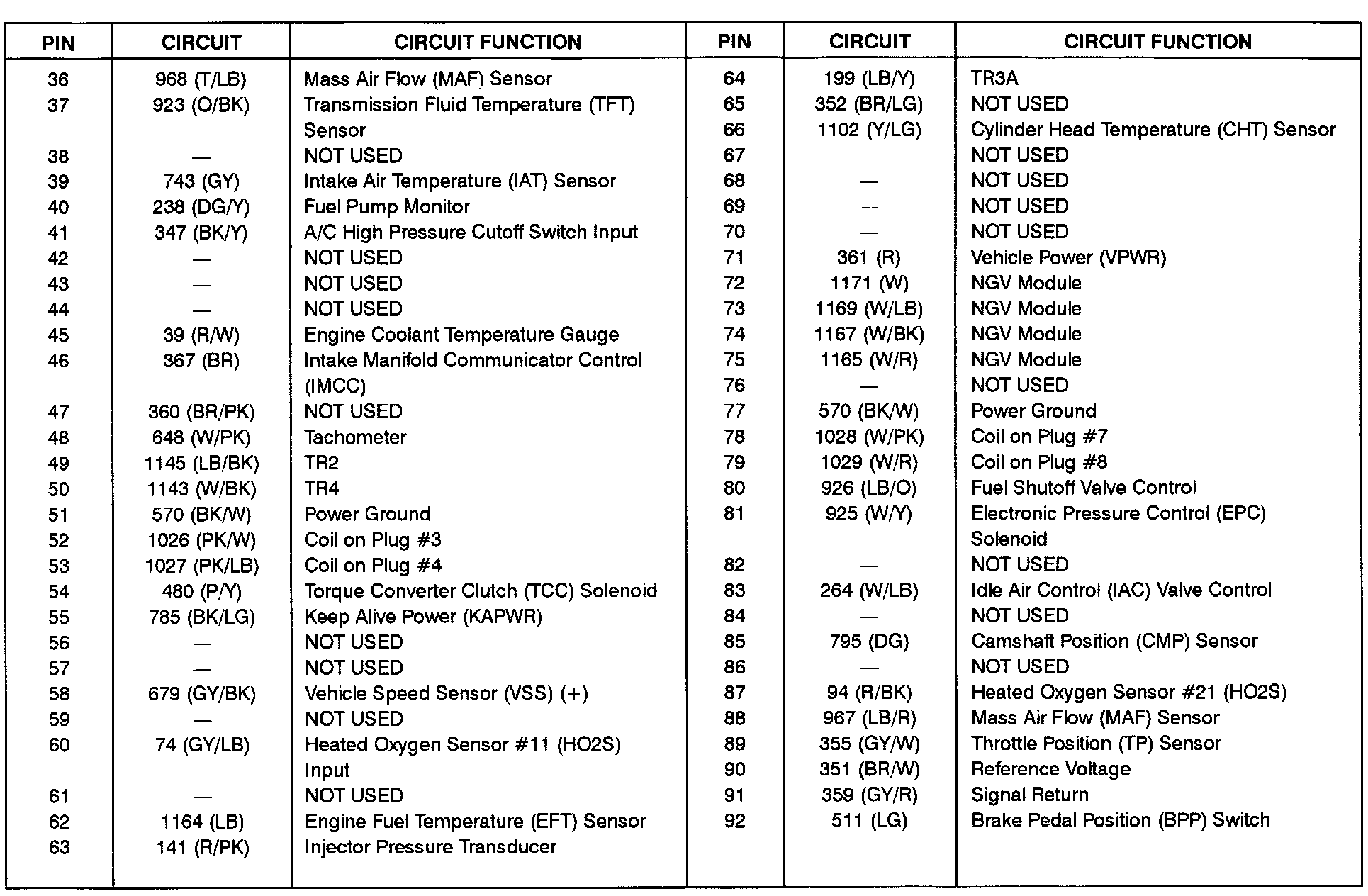

Powertrain Control Module (Part 2 Of 3):
Powertrain Control Module (Part 3 Of 3):
