Home >> Ford >> 2000 >> Contour L4-122 2.0L CNG DOHC VIN Z SFI >> Repair and Diagnosis >> Diagrams >> Connector Views >> Engine Control Module >> Powertrain Control Module

Powertrain Control Module

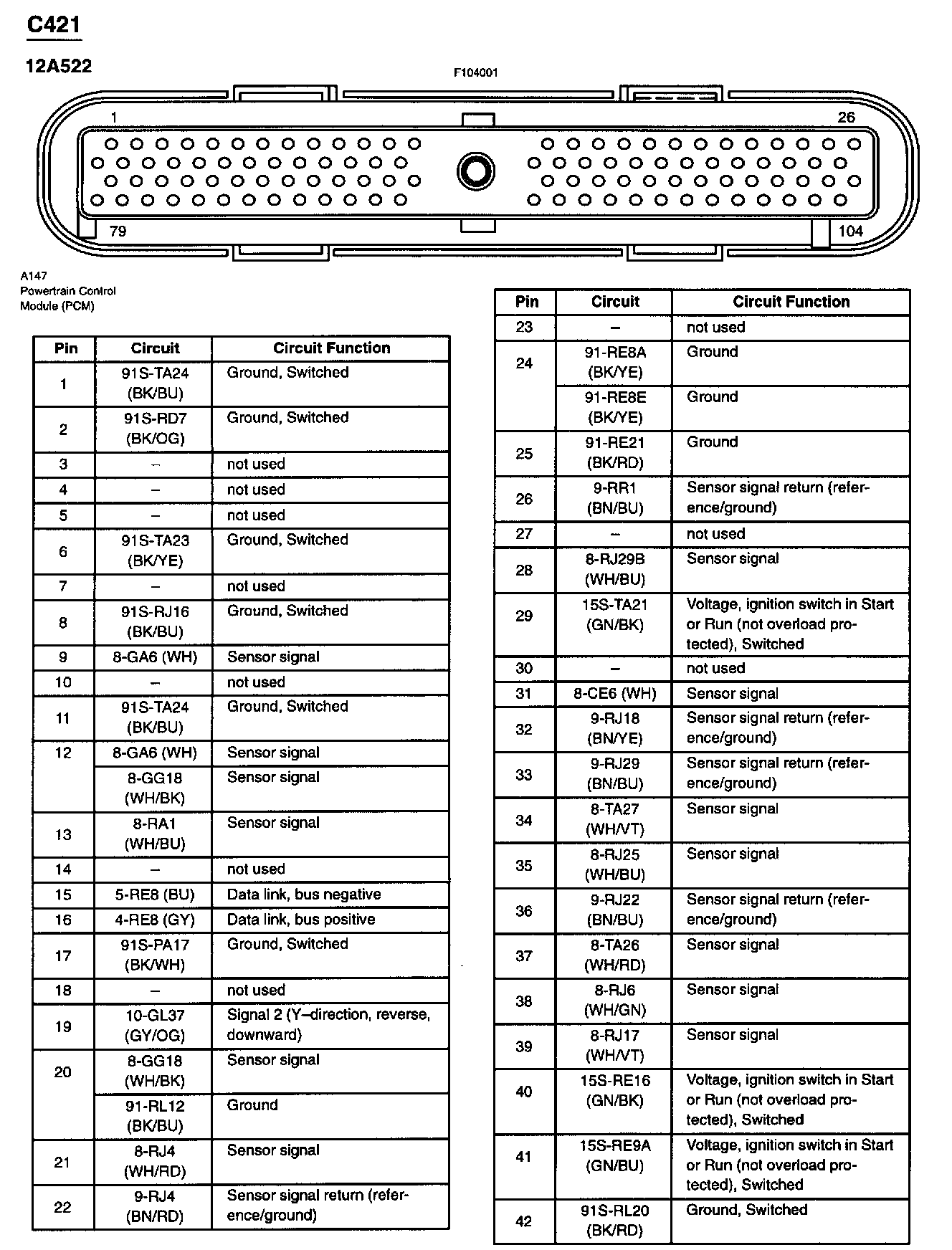

Part 1 Of 3:

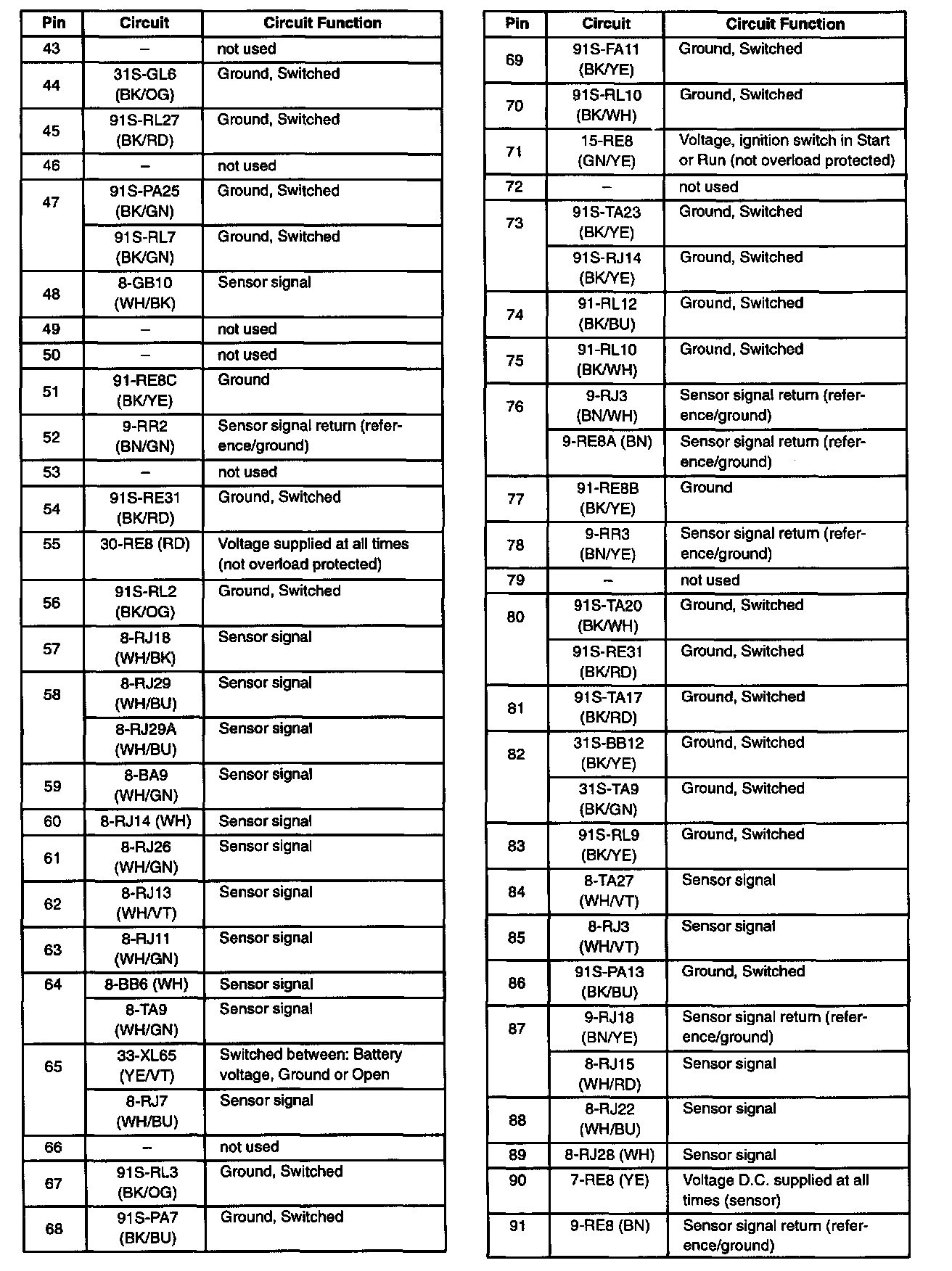

Part 2 Of 3:

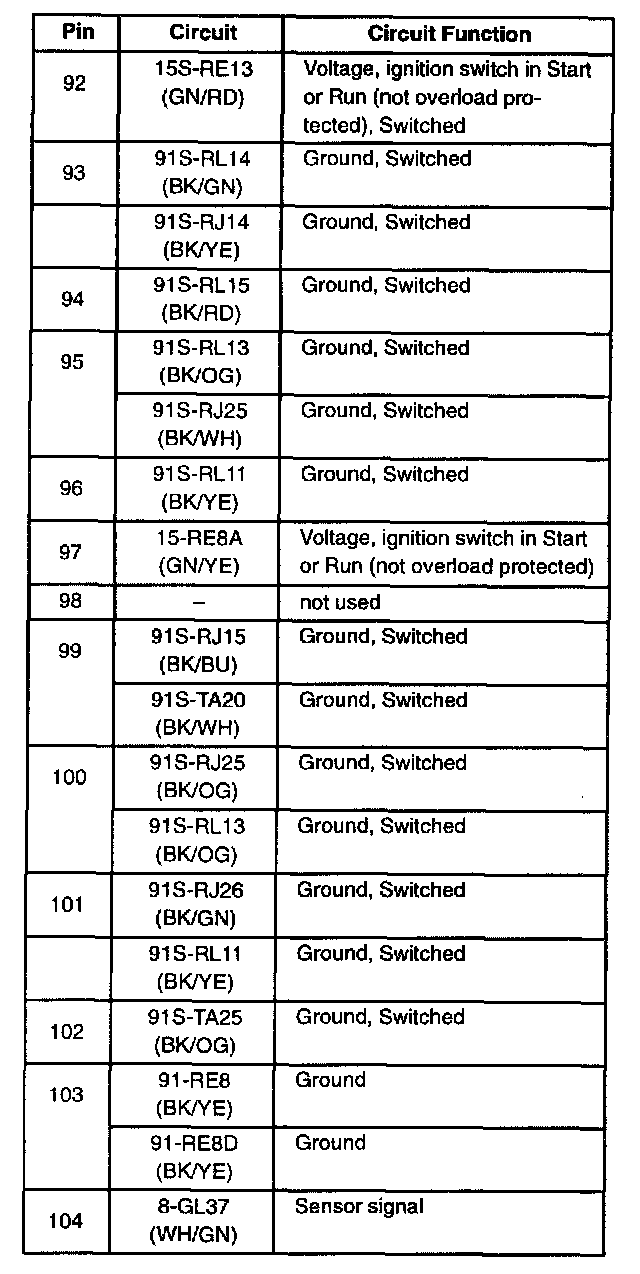

Part 3 Of 3:
