Home >> Ford >> 2001 >> F 150 2WD Lightning V8-5.4L SOHC SC VIN 3 >> Repair and Diagnosis >> Diagrams >> Connector Views >> Engine Control Module >> Powertrain Control Module

Powertrain Control Module

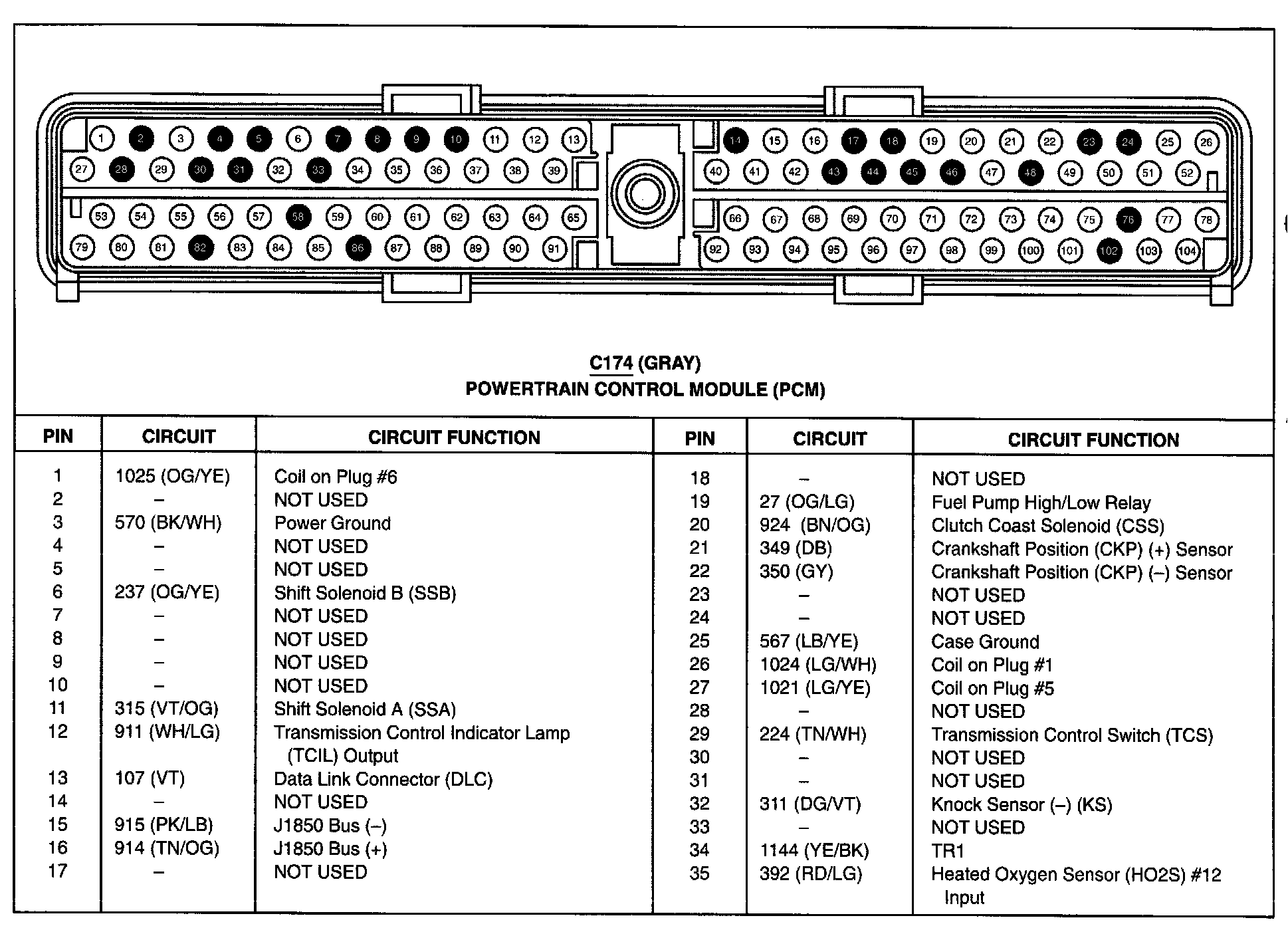

Part 1 Of 3:

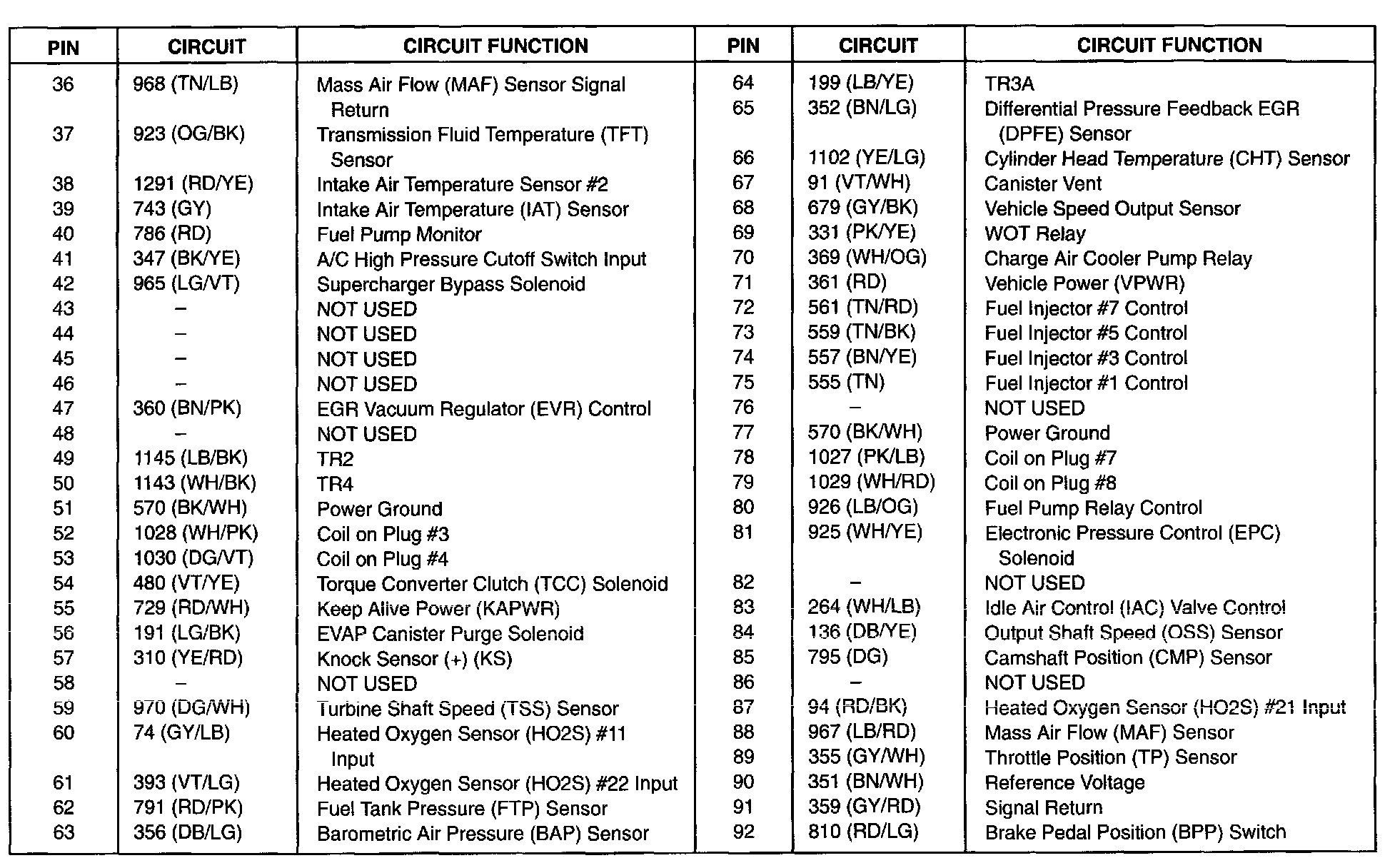

Part 2 Of 3:






Part 3 Of 3:
