Home >> Ford >> 2002 >> Econoline E350 1 Ton V8-5.4L CNG VIN M >> Repair and Diagnosis >> Diagrams >> Connector Views >> Engine Control Module >> Powertrain Control Module

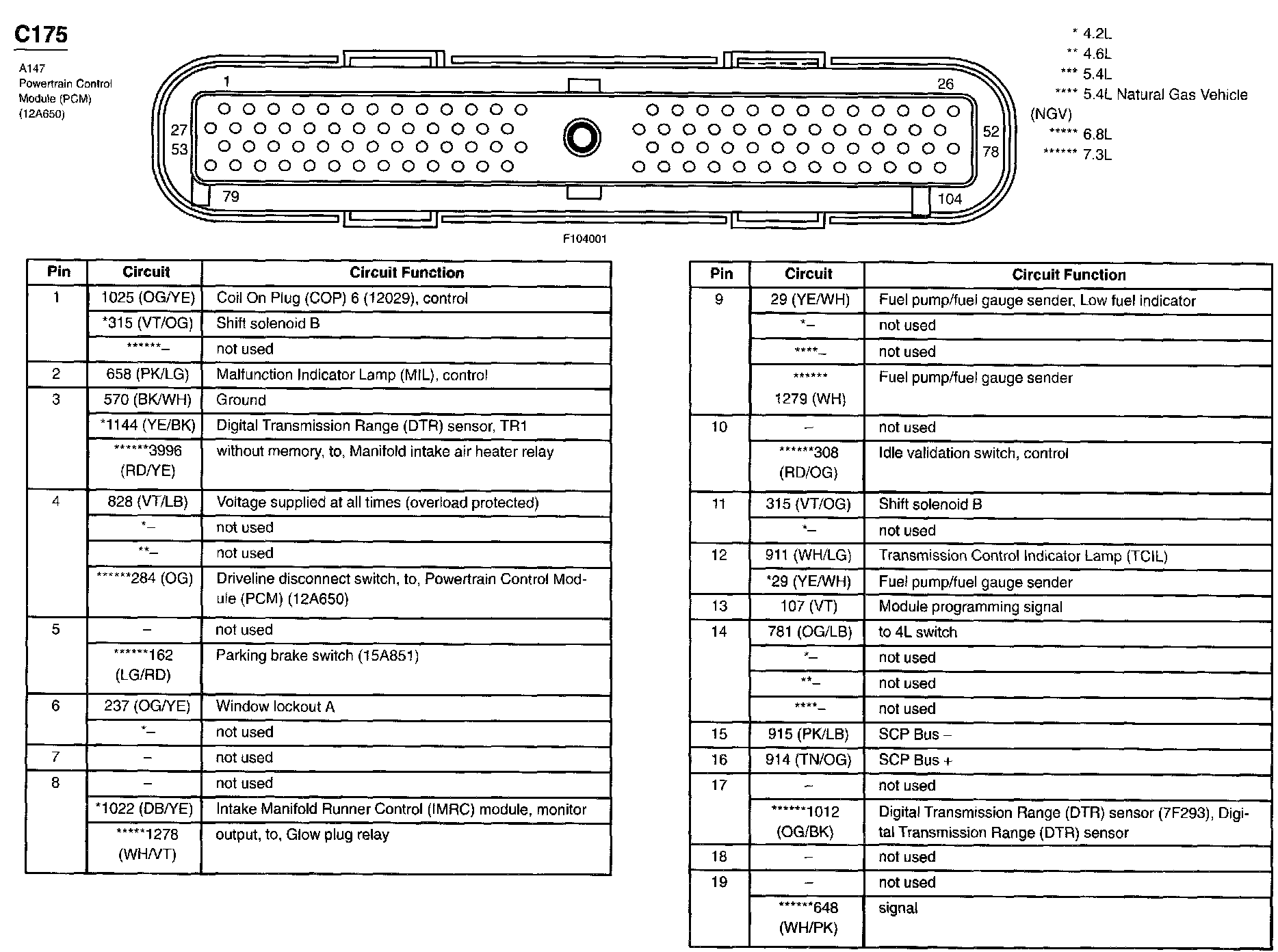

Powertrain Control Module

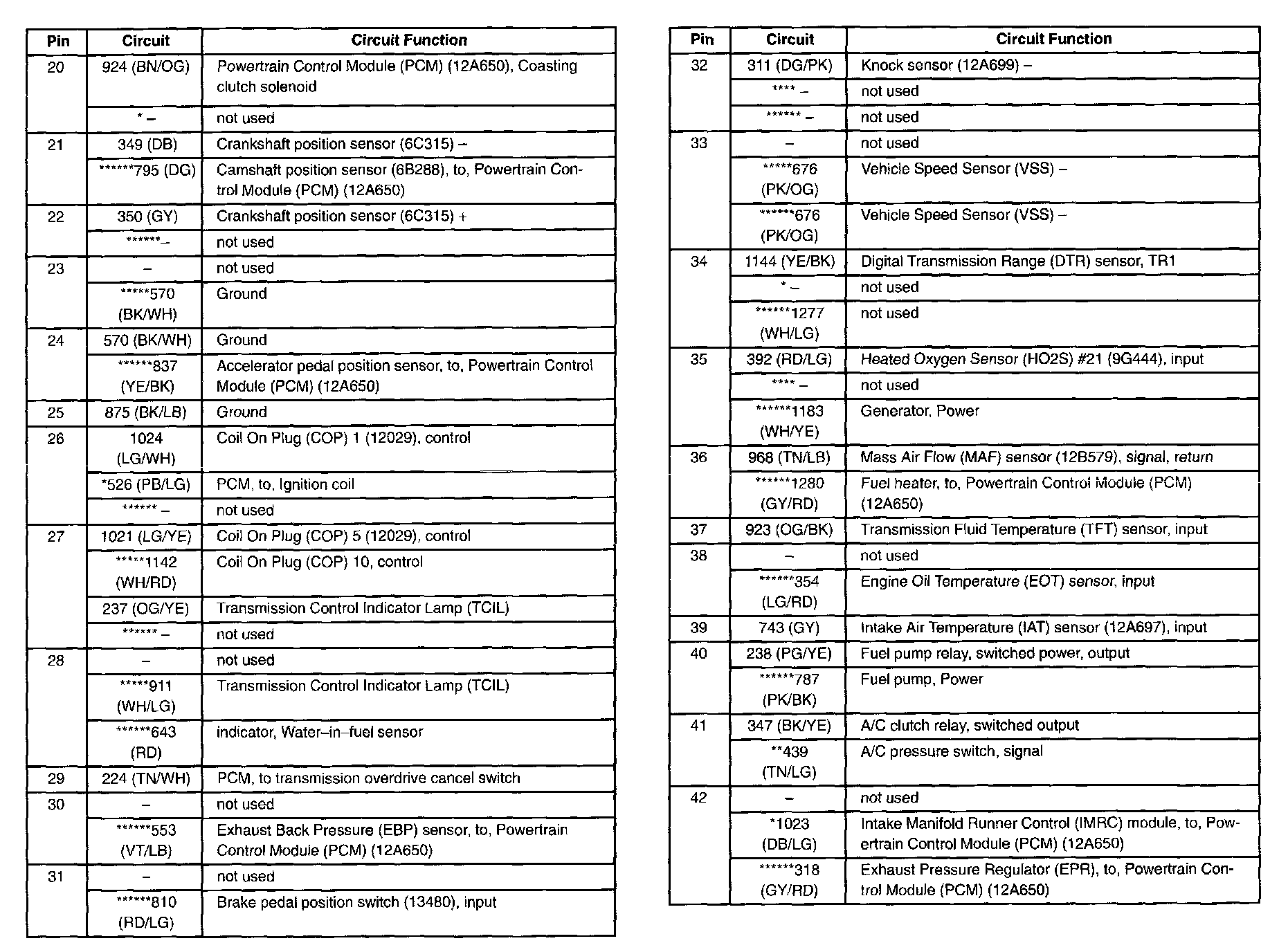

Part 1:

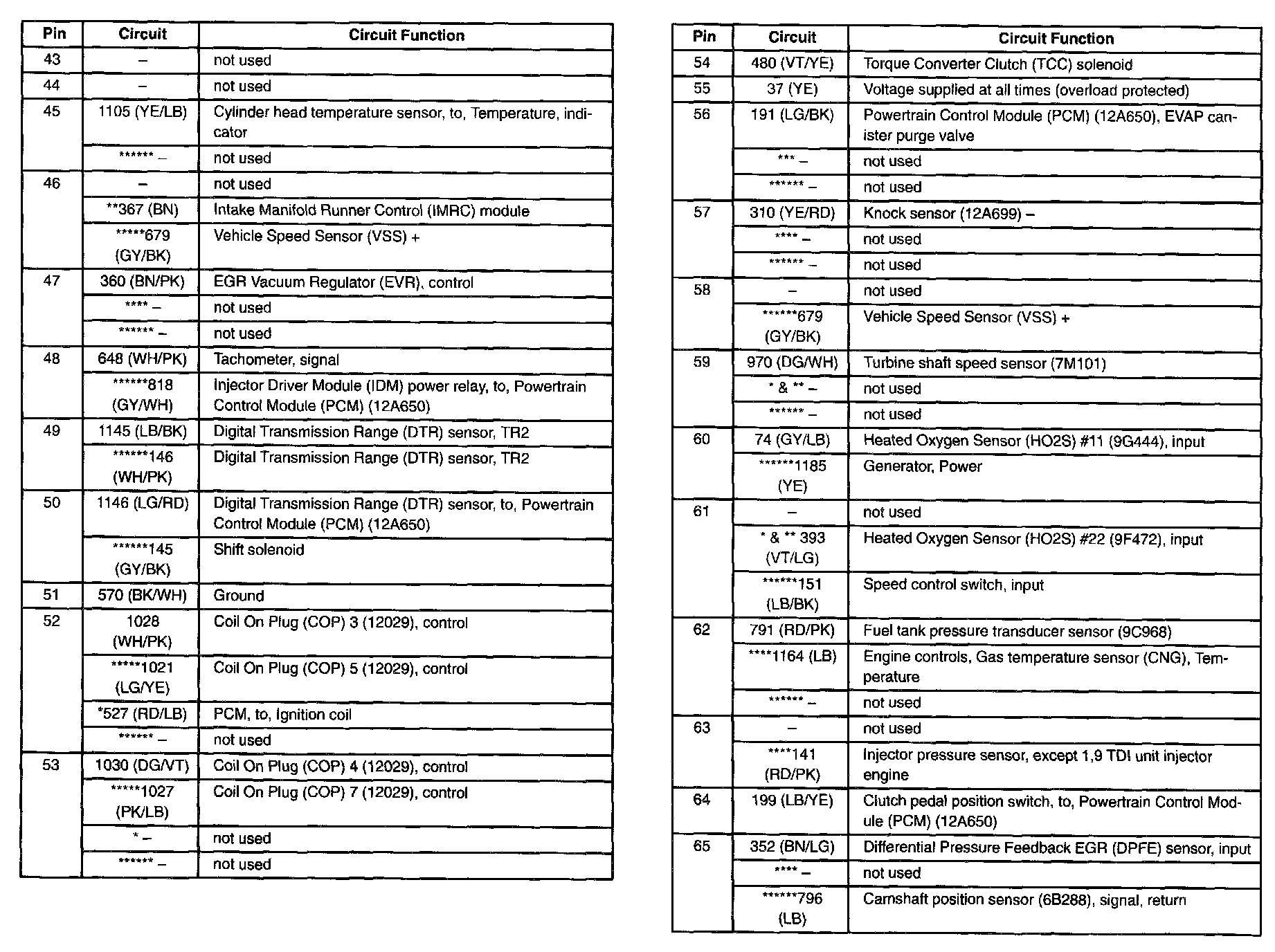

Part 2:

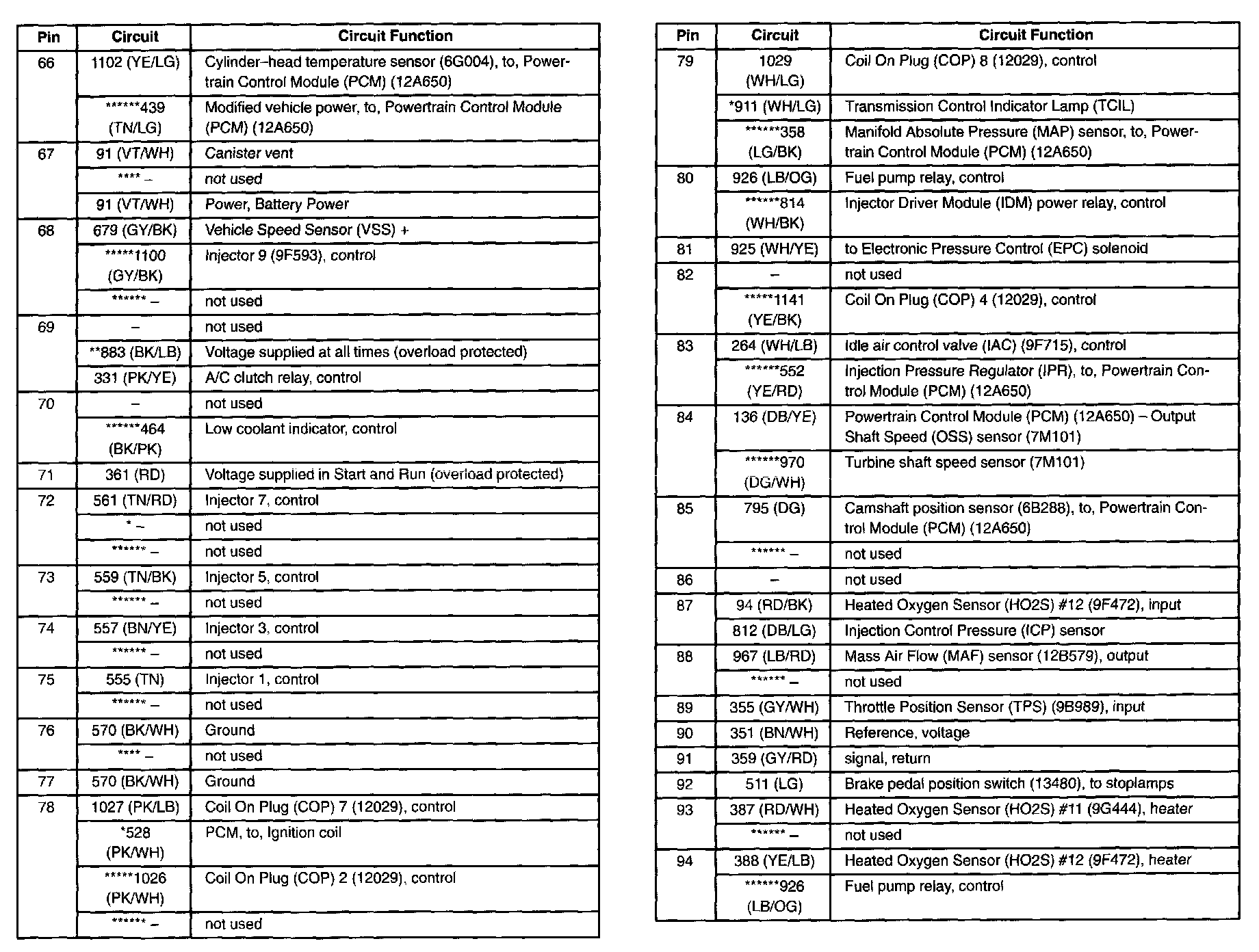

Part 3:

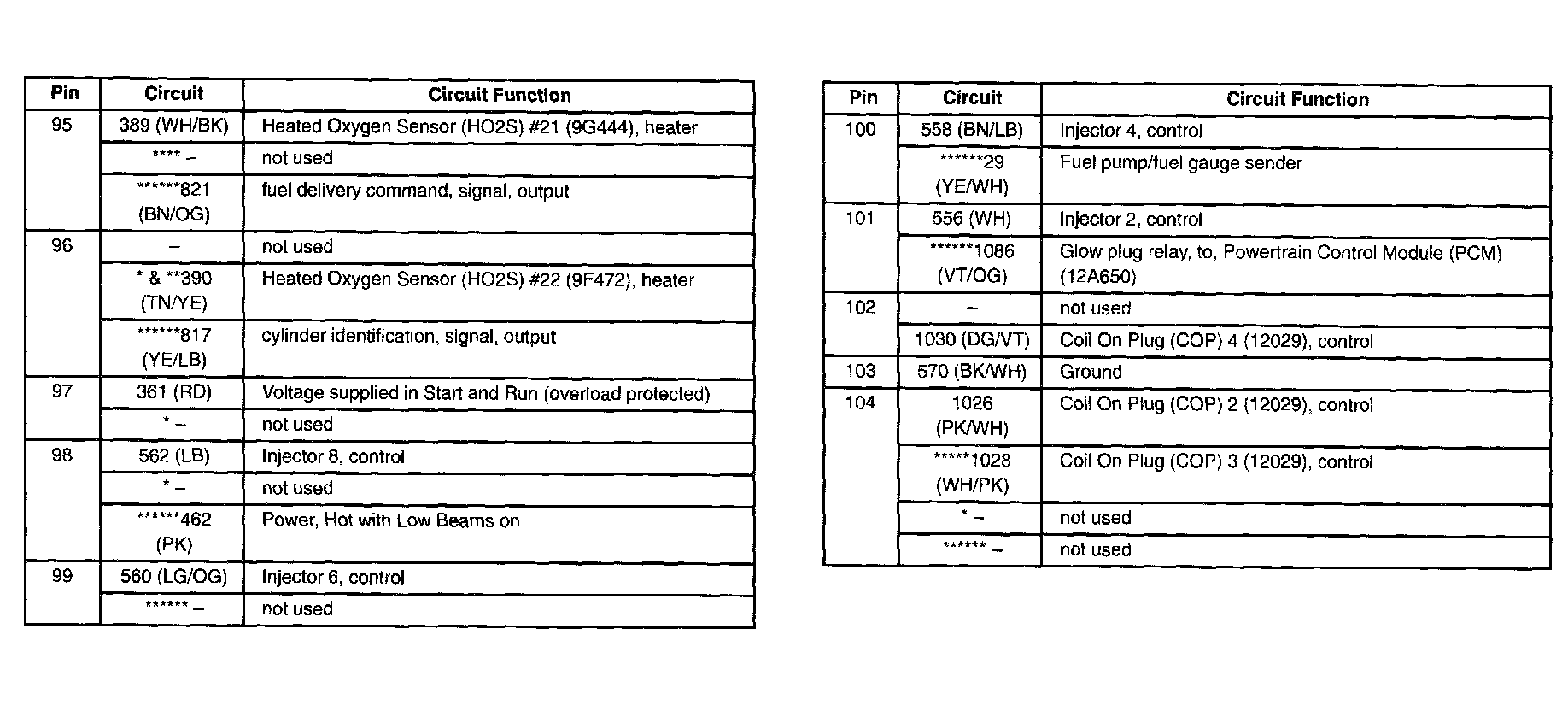

Part 4:






Part 5:
