Home >> Ford >> 2003 >> F 150 4WD Pickup V8-5.4L SOHC VIN L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Body Control Module >> Central Timer Module

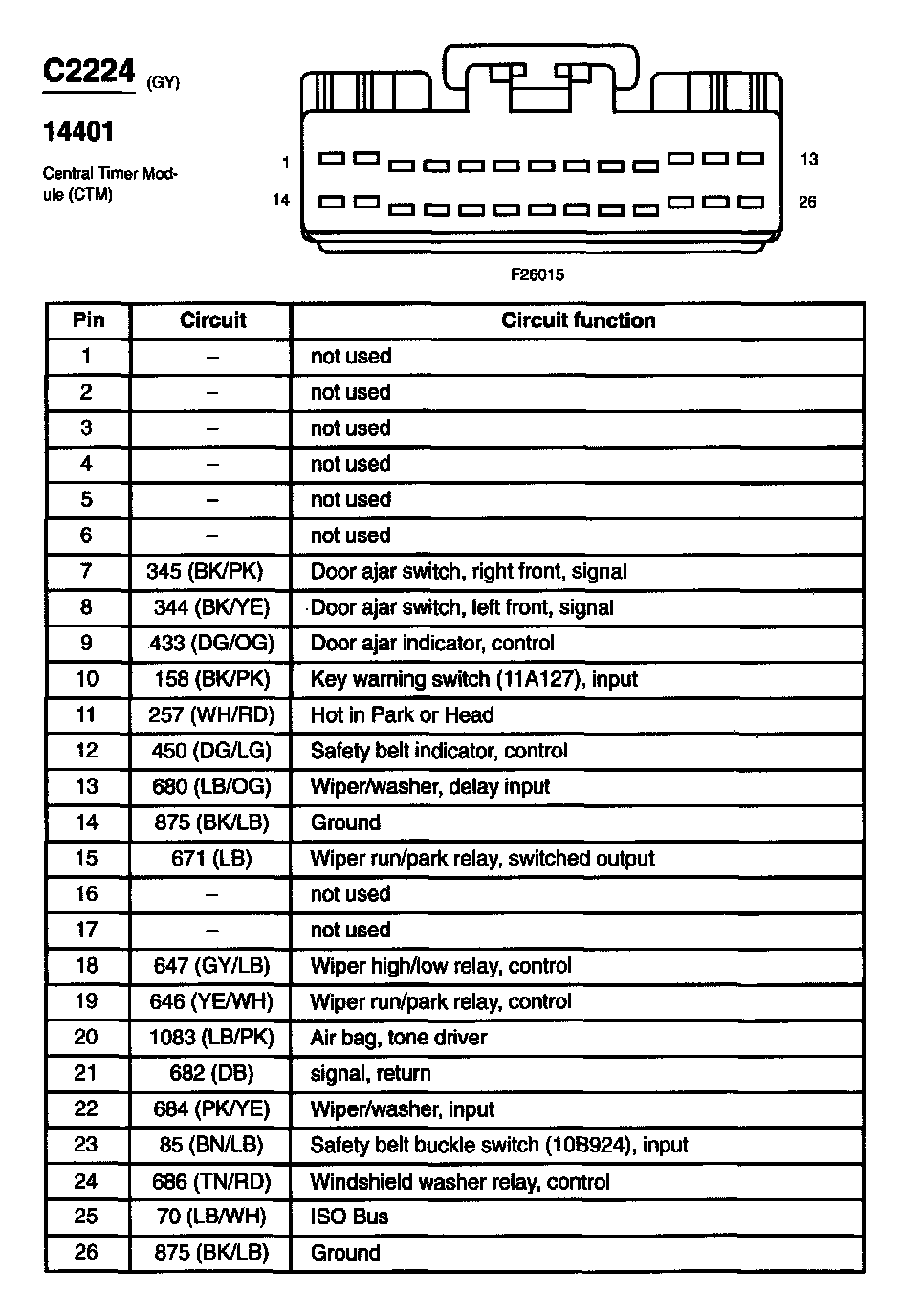

Central Timer Module
