Home >> Ford >> 2004 >> Explorer 2WD V8-4.6L SOHC VIN W >> Repair and Diagnosis >> Diagrams >> Connector Views >> Engine Control Module

Engine Control Module

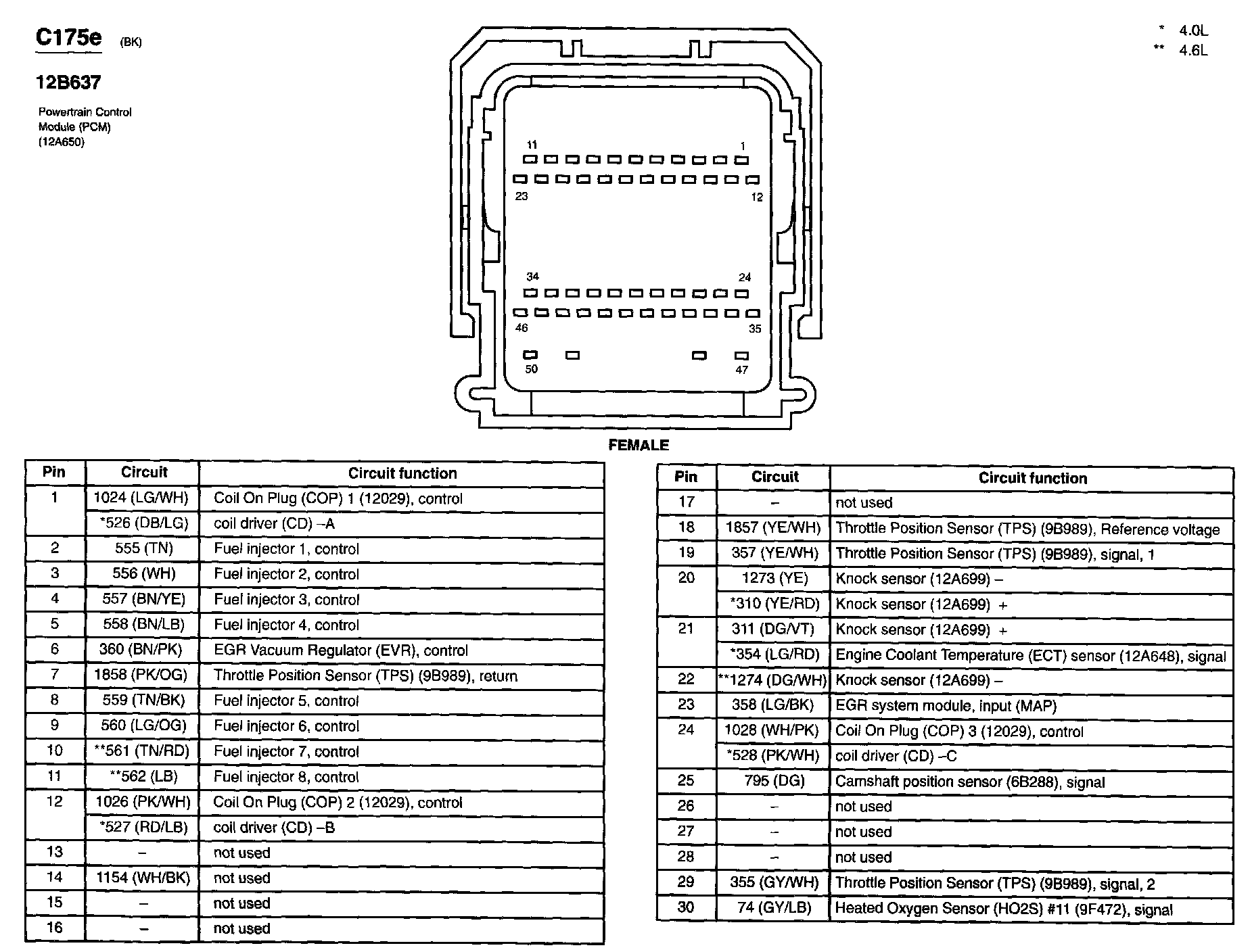

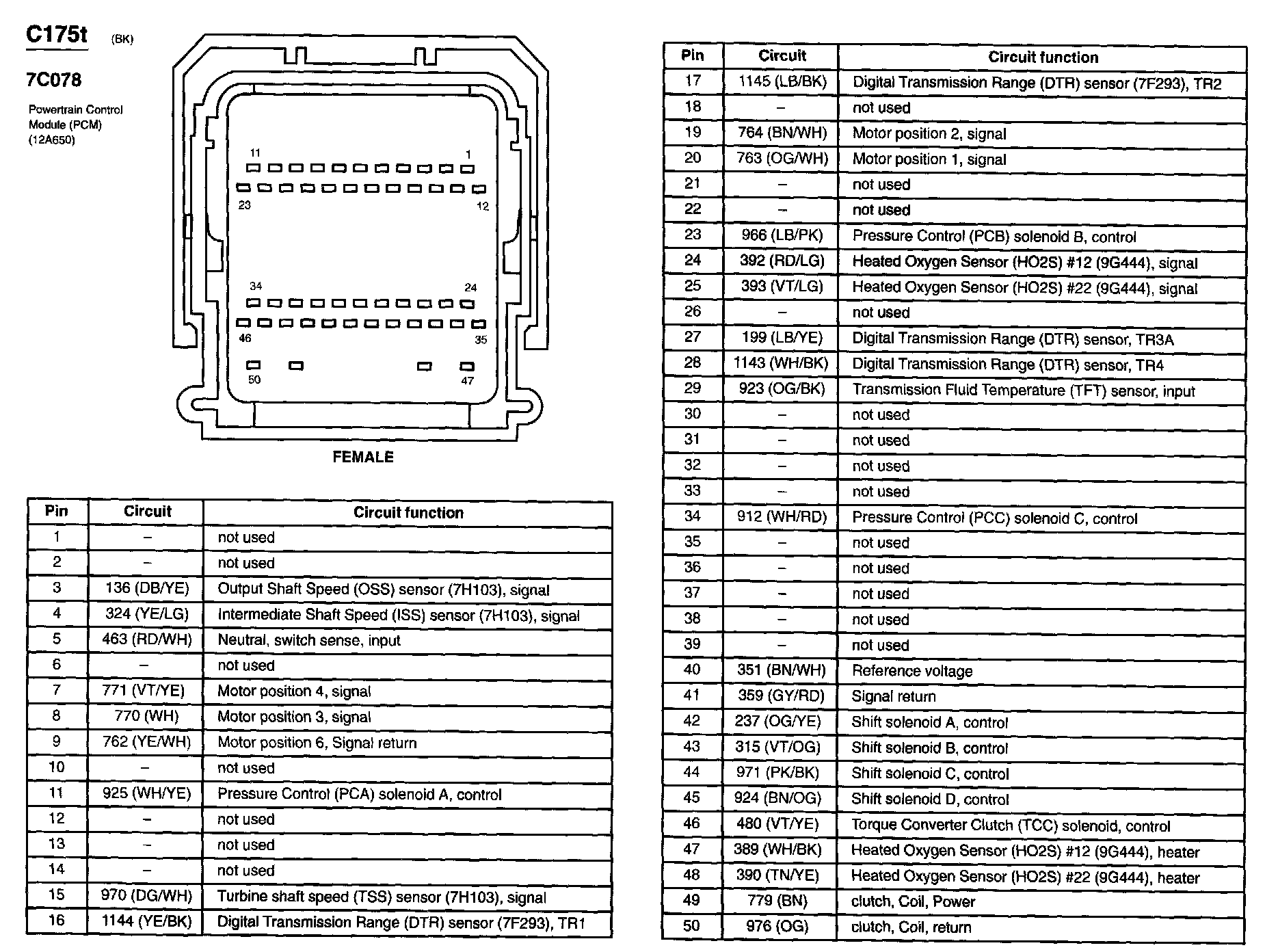

Part 1:

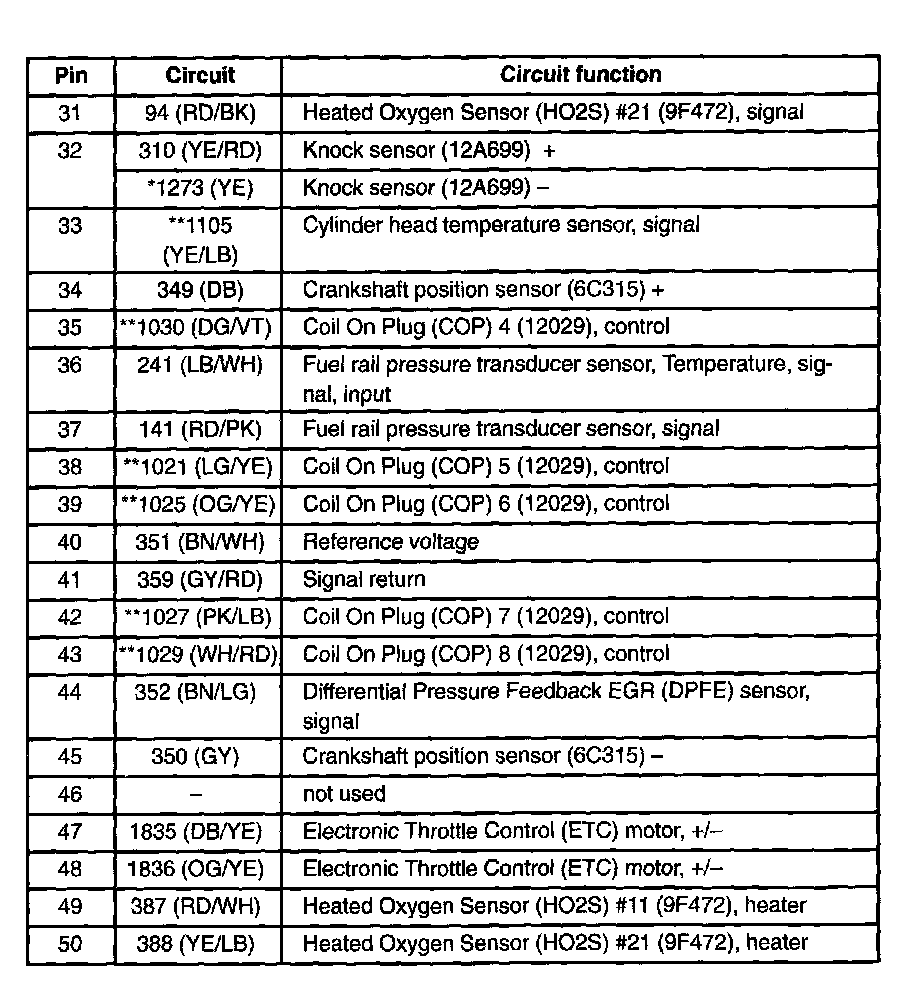

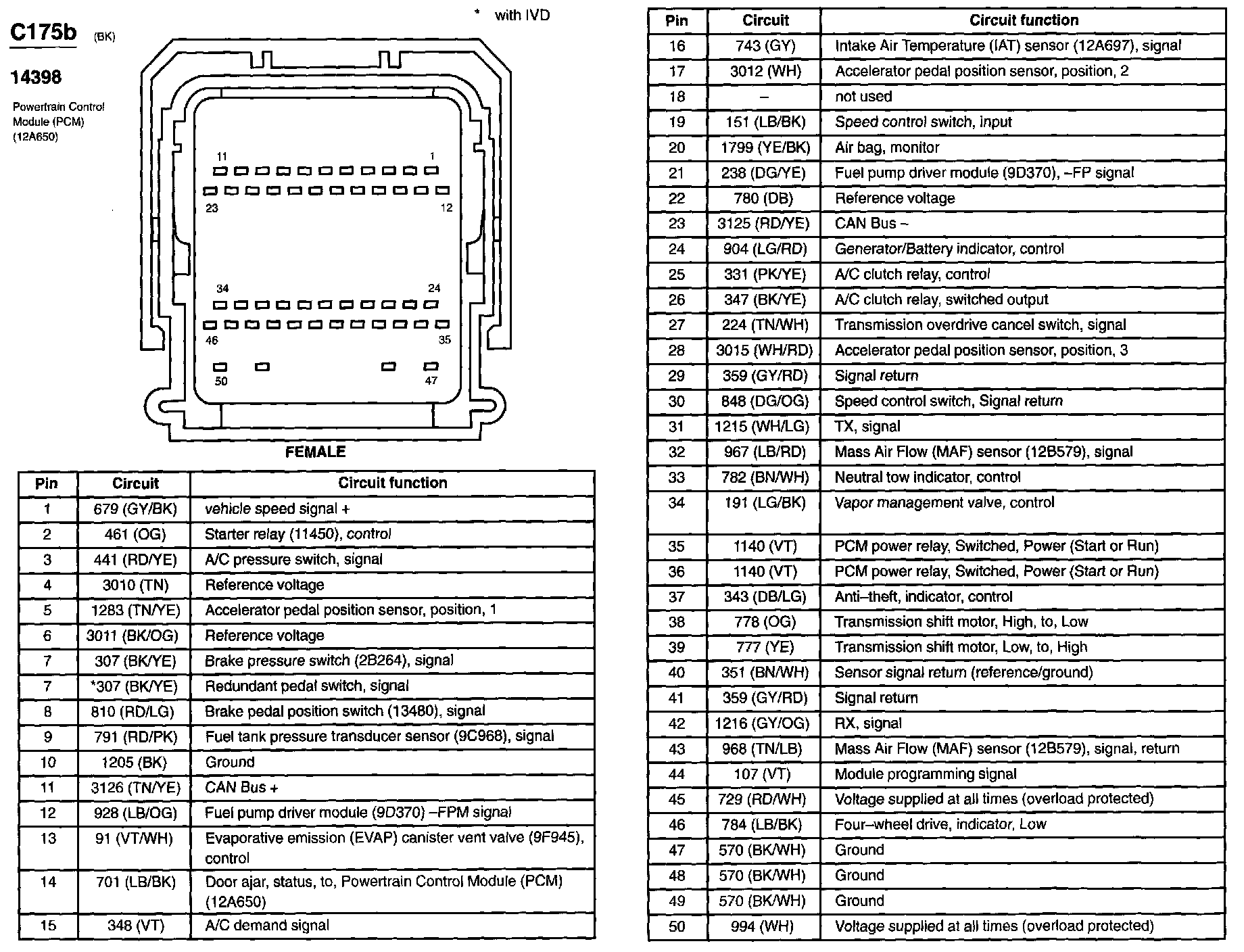

Part 2:
