Induction System Components

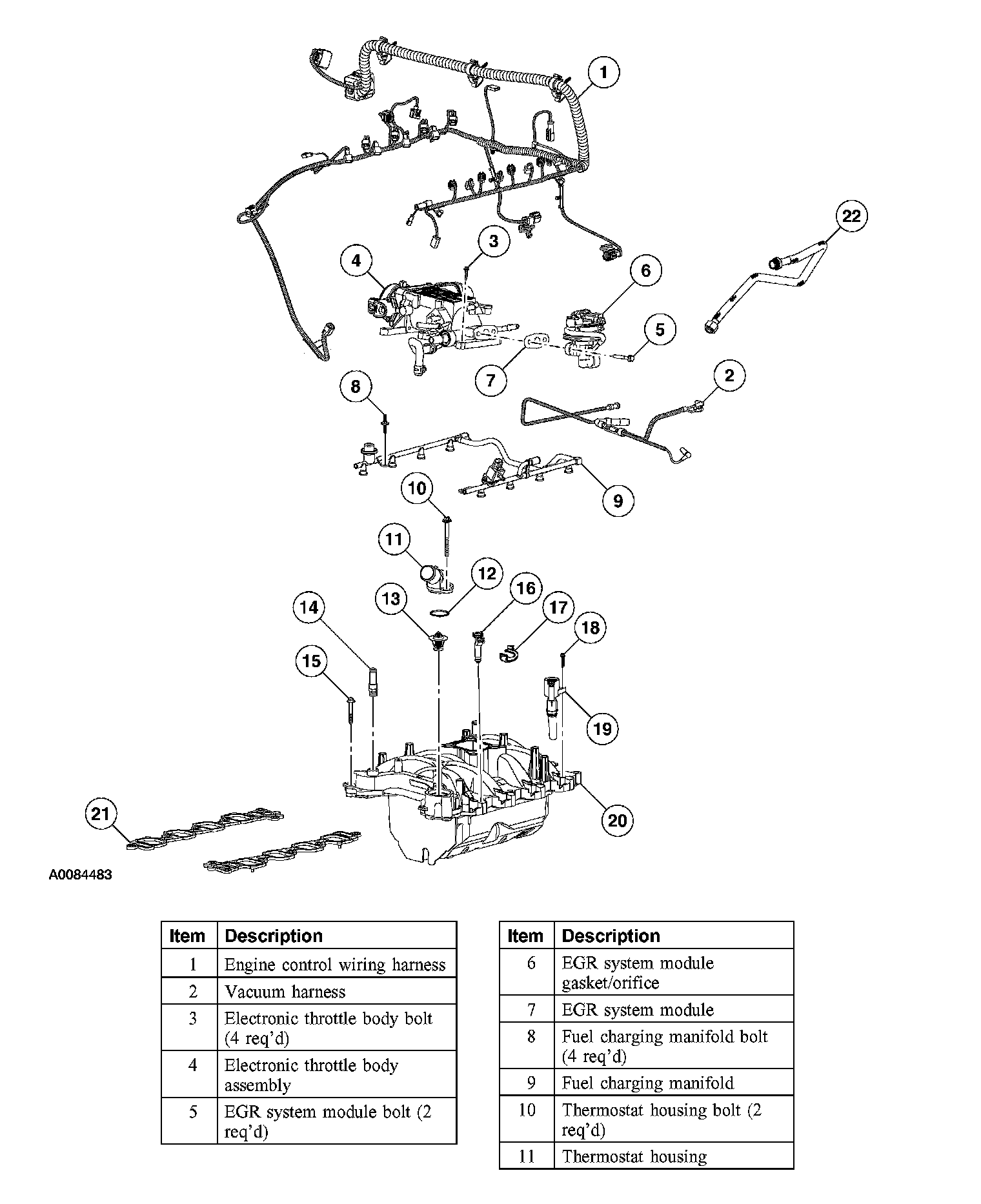

Engine Induction System Part 1 Of 2:



Engine Induction System Part 2 Of 2:
