System Specifications

Engine front cover bolts 25 Nm (18 ft. lbs.)
Crankshaft Pulley Bolt
Tighten the bolt in four stages:
Tighten 90 Nm (66 ft. lbs.)
Loosen one full turn.
Tighten 50 Nm (37 ft. lbs.).
Tighten an additional 90 degrees without exceeding 200 Nm (148 ft. lbs.)

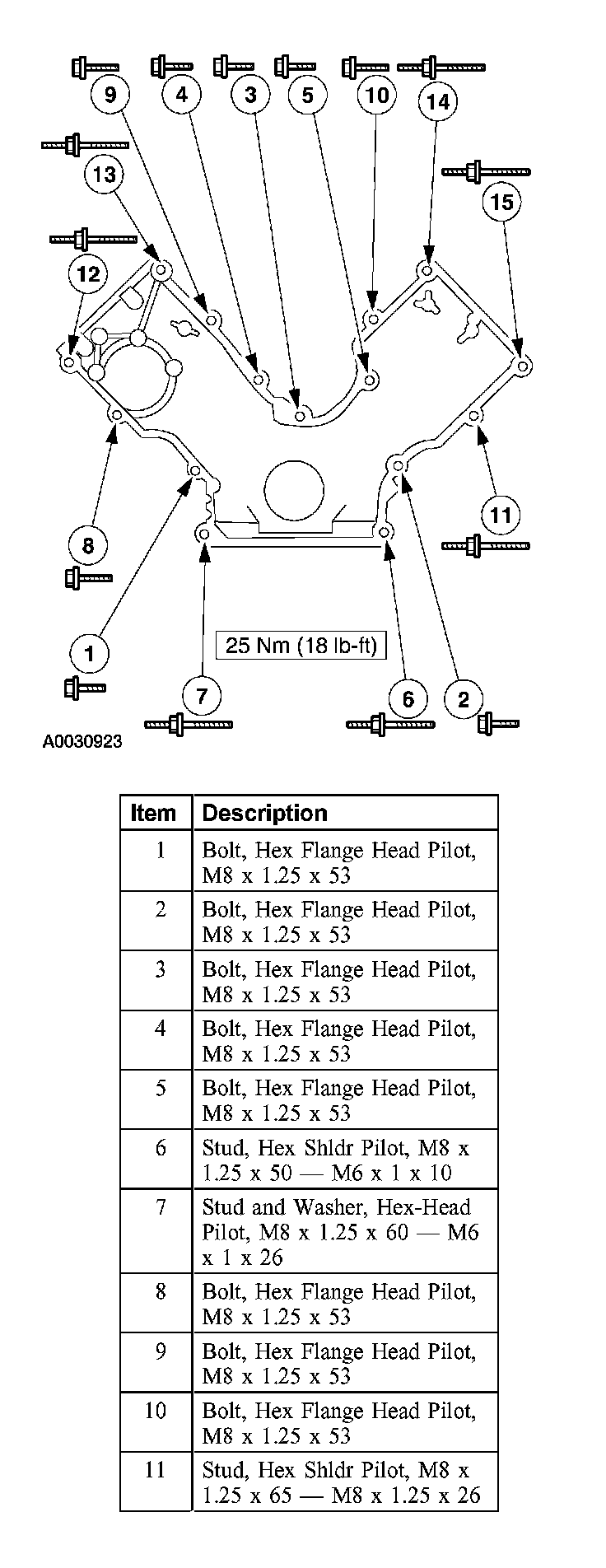

Install the engine front cover in sequence shown.
