Engine Control Module: Service and Repair

POWERTRAIN CONTROL MODULE (PCM)







Removal and Installation
1. Disconnect the battery ground cable.

2. NOTE: Refer to Computers and Control Systems for correct worldwide diagnostic system (WDS) hook-up procedure.

Connect the diagnostic tool to the vehicle. Allow the diagnostic tool to identify the vehicle and obtain configuration data.
- All programmable module information will automatically be retrieved by the WDS.

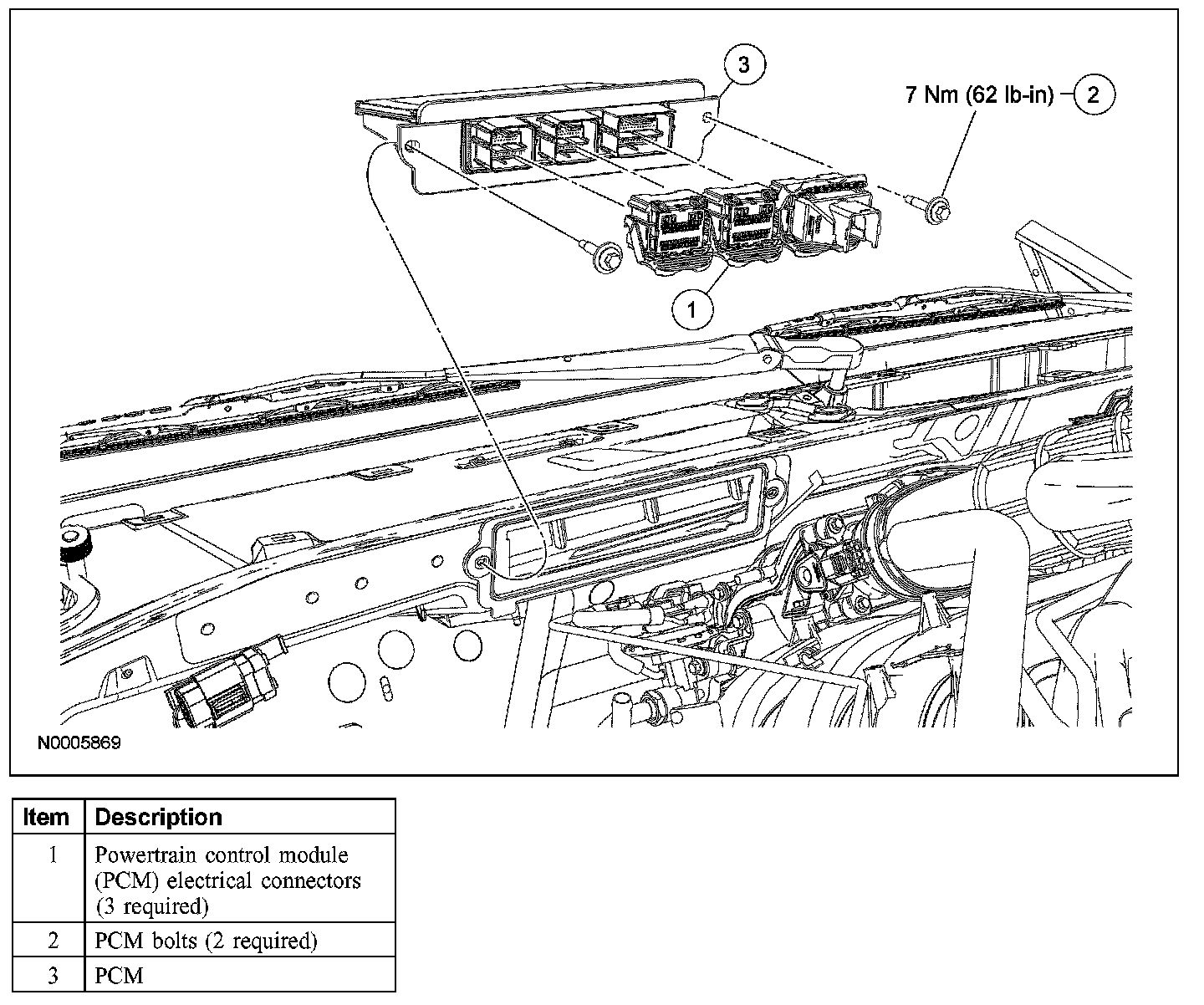

3. Disconnect the PCM electrical connectors.
4. Remove the 2 bolts and the PCM.
- To install, tighten to 7 Nm (62 lb-in).

5. To install, reverse the removal procedure.
