Engine Control Module: Specifications

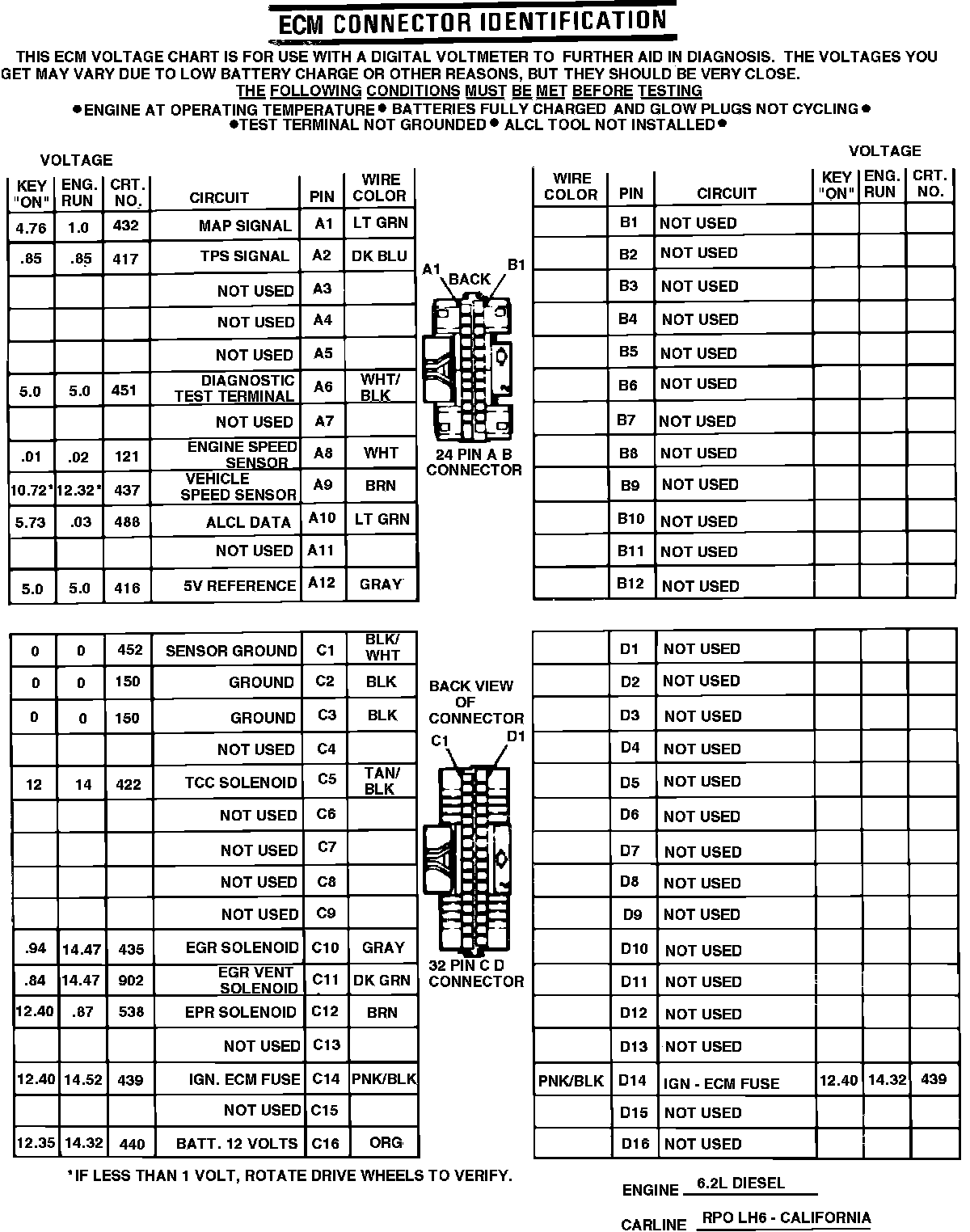

Fig. 20 ECM connector terminal identification & voltage specifications. 1985:
